Winmate

W24L100-MRA1

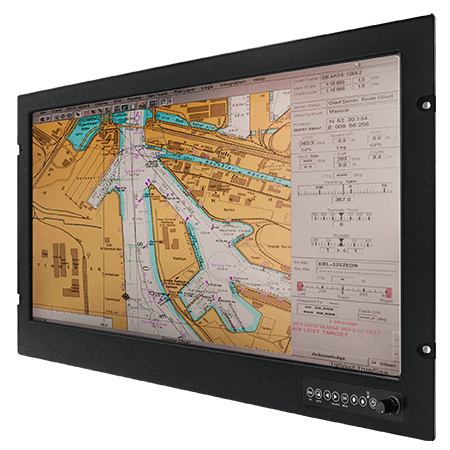

24″ Marine Display W24L100-MRA1 certified for maritime applciations with Enhanced shock and vibration resistance, 24V DC Isolated Power Module.

Features and Benefits

  • Dimming knob control backlight brightness from nearly 0% to 100%
  • IP66 aluminum housing with powder coating design (IP54 rear)
  • 24V DC Isolated Power Module
  • High quality touchscreen / AR protection glass for option
  • Ease of use front panel OSD control Marine Display
  • Enhanced shock and vibration resistance

IACS-E10IEC60945DNVGL-CG-0339FCCCE

Available to Order
WhatsApp Us
Get Quote Get Quote
Download Datasheet Download Datasheet

Models

  • W24L100-MRA1

Overview

How to Buy

Click “WhatsApp Us” or “Get a Quote” above to buy W24L100-MRA1 from APulsar Technologies, WINMATE official partner.

Winmate Marine Display Series provides reliable and durable performance for maritime environments, available in sizes from 10.1″ to 24″. Certified with DNVGL-CG-0339, IEC60945 4th, and IACS E10 standards, these displays ensure compliance with marine industry requirements. Featuring an IP66 aluminum housing with powder coating (IP54 rear), a dimming knob for precise backlight control, and enhanced shock and vibration resistance, they are built for harsh conditions. With optional touchscreen or AR protection glass, multi-video inputs, and user-friendly front panel OSD controls, these displays are ideal for navigation and control applications.

Specifications

Display

Resolution

  • 1920×1080

Size

  • 24.0 inches

Contrast Ratio

  • 5000:1

Panel Brightness

  • 300.0 nits

Display Color

  • 16.7M Colors

View Angles

  • 89,89,89,89

Active Area

  • 531.36×298.89 mm

Touch / Glass

  • Resistive Touch Screen (Default)
  • AR Glass (Optional)

Operating Humidity

  • 5% to 95%

Operating Temperature

  • -15~55°C

Shock

  • 15G,11ms duration

Vibration

  • 0.7g@DNV-CG-0339 (Class A)

IP rating

  • IP66 (Front Side)

Certification

  • CE, FCC
  • DNV-CG-0339, IEC60945 4th, IACS E10

Serial Port

  • 1 x RS232 for Remote Control
  • 1 x RS232/USB for Touch Screen

Video

  • 1 x VGA
  • 1 x DVI-D
  • 1 x Composite
  • 1 x S-Video

Dimension

  • 593 x 356.7 x 62.7

Weight

  • 9.7 kg

Mounting

  • VESA mount/Panel mount

Enclosure

  • Metal Housing with Aluminum Bezel

Cooling System

  • Fanless Design

Cut out

  • 566 x 362 mm

Power Rating

  • 24V DC-in with Isolation (Approval by Certificate)
  • 9~36V DC Input Acceptable

Consumption

  • 50W (Typical)

Accessory

  • 1 x User Manual.
  • 1 x DVI Cable.
  • 1 x VGA Cable.
  • 1 x RS232 Serial Cable.
  • 1 x S-Video Cable.
  • 1 x Composite Cable.

Button

  • 8 key:
  • Esc/PIP
  • Auto adjustment
  • Left
  • Right/Source
  • OK/Menu
  • Up
  • Down
  • Power
  • 1 x The Dimming Knob
