Delta

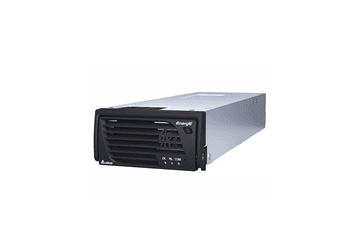

DPR 3000E EnergE 98%

Delta’s DPR 3000E EnergE is a single-phase, hot-pluggable telecom rectifier with 98% efficiency and 56.8 W/in³ power density for network and communications applications.

Features and Benefits

  • Energy saving – leading edge efficiency 98%
  • Advanced energy saving functionality
  • Outstanding power density 56.8 W/in³
  • Low carbon emissions
  • Space saving – leading edge power density up to 15 kW in 19” x 1U shelf
  • Space saving – leading edge power density up to 18 kW in 23” x 1U shelf
  • Wide AC input voltage range
  • Protection against loss of Neutral and AC over voltage

Available to Order
WhatsApp Us
Get Quote Get Quote
Download Datasheet Download Datasheet

Models

  • DPR 3000E EnergE

Overview

How to Buy

Click “WhatsApp Us” or “Get a Quote” above to buy DPR 3000E EnergE 98%from APulsar Technologies, Delta Official Distributor.

Purchase walk-in from our office in Petaling Jaya, or order online and enjoy fast delivery across Kuala Lumpur and the entire Malaysia.

Introduction

Delta’s technology leading telecom rectifier DPR 3000E EnergE provides the industrial leading efficiency of 98%. The single phase, hot pluggable fan cooled rectifier provides the 56.8 W/in³ outstanding power density. Integrated with the high efficiency rectifier DPR 3000E EnergE, Delta power solution provides an energy saving solution for network base stations, wireless applications, fixed line applications and data communications.

Specifications

Input

Voltage (nominal)

  • 230VAC

Voltage (range)

  • 80 – 300VAC; De-rating <180VAC

Max. Voltage (non-destructive)

  • 415VAC**

Frequency

  • 45 – 66Hz

Power Factor

  • > 0.99 @ load ≥ 50%

Total Harmonic Distortion

  • < 5% @ load ≥ 50%

Lightning Protection

  • EN 61000-4-5

Voltage (default)

  • -54.0VDC

Voltage (adjustable range)

  • -43 to -58VDC

Maximum Output Current

  • 63.5A

Maximum Power @ nominal Input

  • 3050W

Power Density

  • 56.8W/in³

Peak Efficiency

  • 98.0%

Load Regulation

  • ≤ ± 250mV

Ripple

  • ≤ 200mV @ above 20% load

Current Sharing

  • ≤ ± 5%

Lightening Protection

  • EN 61000-4-5

Alarm and Signaling

  • CANbus to System Controller

Indications

  • OK
  • NL
  • COM
  • Green
  • Yellow
  • Green
  • Normal Operation
  • Output current < 5%
  • Communication Status

Dimensions (W x H x D)

  • 84 x 41 x 265mm (3.30 x 1.61 x 10.43in)

Weight

  • 1.4kg (3.08lb)

Operating Temperature

  • -40 to +75 ᵒC (-40 to +167 ᵒF ); De-rating above 55ᵒC (+132 ᵒF)

Storage Temperature

  • -25 to +75 ᵒC (-13 to +167 ᵒF )

Altitude

  • 0 to +4000m

Related Humidity

  • 0 – 95 % RH non-condensing

Acoustic Noise

  • ≤ 50dBA

Safety

  • Passes CE, UL cUL;
  • Catch the CB certificate;
  • Complies with IEC/EN/UL60950-1

EMC

  • EN 55022 AC Class B and DC output Class A
  • EN 300 386

Environment

  • RoHS

MTBF

  • >500k hours @ 25 ᵒC (+77 ᵒF)
