Delta

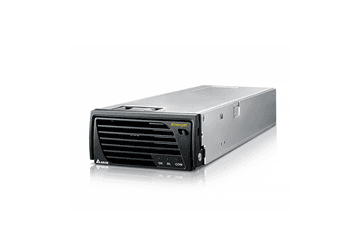

DPR 3000B EnergE

Delta’s DPR 3000B EnergE is a single-phase, hot-pluggable telecom rectifier with 96.2% efficiency and 56.8 W/in³ power density for network and communications applications.

Features and Benefits

  • Energy saving – leading efficiency 96.2%
  • Advanced energy saving functionality
  • Outstanding power density 56.8 W/in³
  • Low carbon emissions
  • Space saving – leading edge power density-up to 15 kW in 19” x 1U shelf
  • Space saving – leading edge power density-up to 18 kW in 23” x 1U shelf
  • Wide AC input voltage range
  • Protection against loss of Neutral and AC over voltage

Available to Order
WhatsApp Us
Get Quote Get Quote
Download Datasheet Download Datasheet

Models

  • DPR 3000B EnergE

Overview

How to Buy

Click “WhatsApp Us” or “Get a Quote” above to buy DPR 3000B EnergE from APulsar Technologies, Delta Official Distributor.

Purchase walk-in from our office in Petaling Jaya, or order online and enjoy fast delivery across Kuala Lumpur and the entire Malaysia.

Itroduction

Delta’s technology leading telecom rectifier DPR 3000B EnergE provides the industrial leading efficiency of 96.2%. The single phase, hot pluggable fan cooled rectifier provides the 56.8W/in³
outstanding power density. Integrated with the high efficiency rectifier DPR 3000B EnergE, Delta power solution provides an energy saving solution for network base stations, wireless
applications, fixed line applications and data communications.



Specifications

Input

Voltage (nominal)

  • 230VAC

Voltage (range)

  • 90 – 300VAC; De-rating ≤ 176VAC

Frequency

  • 45 – 66Hz

Power Factor

  • > 0.99

Total Harmonic Distortion

  • < 5%

Lightening Protection

  • EN 61000-4-5

Voltage (default)

  • -54.0VDC

Voltage (adjustable range)

  • -43 to -58VDC

Maximum Output Current

  • 60A

Maximum Power @ nominal Input

  • 3000W

Power Density

  • 56.8W/in3

Peak Efficiency

  • 96.2%

Load Regulation

  • ≤ ± 250mV

Ripple

  • ≤ 150mVPP & < 55mVRMS

Current Sharing

  • ≤ ± 5%

Lightening Protection

  • EN 61000-4-5

Alarm and Signaling

  • CANbus to System Controller

Indications

  • OK
  • NL
  • COM
  • Green
  • Yellow
  • Green
  • Normal Operation
  • Output current < 5%
  • Communication Status

Dimensions (W x H x D)

  • 84 x 41 x 265mm (3.30 x 1.61 x 10.43in)

Weight

  • 1.3kg (3.0lb)

Operating Temperature

  • -40 to +75 ᵒC (-40 to +167 ᵒF); De-rating above 55ᵒC (+131 ᵒF)

Storage Temperature

  • -40 to +80 ᵒC (-40 to +176 ᵒF)

Altitude

  • 0 to +4000m

Related Humidity

  • 0 – 95 % RH non-condensing

Acoustic Noise

  • ≤ 58dBA

Safety

  • Passes TUV, CE, UL cUL;
  • Catch the CB certificate;
  • Complies with IEC/EN/UL60950-1 & IEC/EN/UL62368-1

EMC

  • EN 55022 AC Class B & DC output Class A
  • EN 300 386

Environment

  • RoHS

MTBF

  • 300k hours @ 25 ᵒC (+77 ᵒF)
