Delta

DPR 2000B EnergE

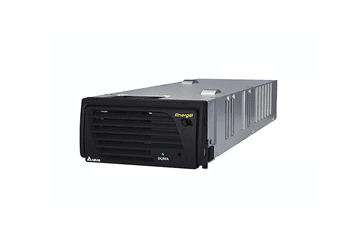

Delta’s DPR 2000B EnergE is a single-phase telecom rectifier with 96% efficiency and 37.9 W/in³ power density.

Features and Benefits

  • High Efficiency: 96% efficiency reduces power loss and operating costs.
  • Powerful Output: 2 kW output supports demanding telecom systems.
  • Flexible Voltage: Adjustable DC output for varied applications.Compact Design: High power density saves shelf and system space.
  • Easy Maintenance: Hot-pluggable module enables quick swaps.
  • Reliable Operation: Fan cooling and wide temperature range ensure stability.
  • Smart Monitoring: CANbus interface provides system control and alarms.
  • Certified Safe: Global safety and EMC approvals for broad deployment.

Available to Order
WhatsApp Us
Get Quote Get Quote
Download Datasheet Download Datasheet

Models

  • DPR 2000B EnergE

Overview

How to Buy

Click “WhatsApp Us” or “Get a Quote” above to buy DPR 2000B EnergE from APulsar Technologies, Delta Official Distributor.

Purchase walk-in from our office in Petaling Jaya, or order online and enjoy fast delivery across Kuala Lumpur and the entire Malaysia.

Introduction

Delta’s technology leading telecom rectifier DPR 2000B EnergE provides the industrial leading efficiency of 96%. The single phase, hot pluggable fan cooled rectifier provides the 37.9W/in³
outstanding power density. Integrated with the high efficiency rectifier DPR 2000B EnergE, Delta power solution provides an energy saving solution for network base stations, wireless
applications, fixed line applications and data communications.



Specifications

Input

Voltage (nominal)

  • 230VAC

Voltage (range)

  • 90 – 295VAC; De-rating ≤ 176VAC

Frequency

  • 45 – 66Hz

Power Factor

  • > 0.99

Total Harmonic Distortion

  • <3% @ 100% load; <5% @ 50% load; <10% @ 30% load

Lightening Protection

  • Fuse in Line and Neutral, F 16A
  • Varistor between lines, varistor and gas discharge tube to ground

Voltage (default)

  • 54.0VDC

Voltage (adjustable range)

  • 43 to 58VDC

Output Current

  • 37A @ default voltage

Maximum Power @ nominal Input

  • 2000W

Power Density

  • 37.9W/in3

Peak Efficiency Peak

  • >96% @ 40-50% load

Load Regulation

  • ≤ ± 250mV

Ripple

  • ≤ 150mV

Current Sharing

  • ≤ ± 5%

Protection

  • Fuse in negative, 50A

Alarm and Signaling

  • CANbus to System Controller

Indications

  • 1 LED Light
  • OK/RFA
  • Green
  • Red
  • Orange

Dimensions (W x H x D)

  • 84 x 41 x 265mm (3.30 x 1.61 x 10.43in)

Weight

  • 1.04 kg / 2.29 lb

Operating Temperature

  • -40 to +75 ᵒC (40 to +167 ᵒF ); De-rating above 45ᵒC (+113 ᵒF)

Storage Temperature

  • -40 to +80 ᵒC (40 to +176 ᵒF )

Altitude

  • 0 to +4000m

Related Humidity

  • 0 – 95 % RH non-condensing

Acoustic Noise

  • ≤ 55dBA

Safety

  • CB certificate, CB scheme
  • CE mark/North American
  • IEC 62368-1 and CSA/UL 62368-1
  • UL/cUL 60950-1/ CSA-C22.2
  • EMC EN 55032 AC Class B & DC output Class A
  • EN 300 386

Environment

  • RoHS

MTBF

  • 300K hours@25C (Calculated)
