Delta

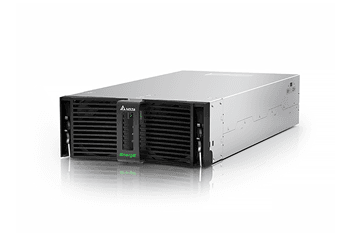

DPR 10000B EnergE

Features and Benefits

  • Industry-Leading Efficiency: 95.8% peak efficiency minimizes energy loss and reduces operating cost.
  • High Power Output: Delivers 10,000 W output, ideal for high-demand telecom systems.
  • Flexible Voltage: Supports adjustable DC output from –43 V to –58 V for diverse network configurations.
  • Compact Design: High power density of 21.4 W/in³ helps save rack space.
  • Hot-Swappable: Fan-cooled and hot-pluggable for easy maintenance without shutting down.
  • Smart Interface: CANbus interface enables system control and alarm signaling.
  • Robust Deployment: Wide input range (185-480 VAC three-phase) supports diverse power environments.
  • Global Compliance: Certified to international safety and EMC standards (CE, UL).

Available to Order
WhatsApp Us
Get Quote Get Quote
Download Datasheet Download Datasheet

Models

  • DPR 10000B EnergE

Overview

How to Buy

Click “WhatsApp Us” or “Get a Quote” above to buy DPR 10000B EnergE from APulsar Technologies, Delta Official Distributor.

Purchase walk-in from our office in Petaling Jaya, or order online and enjoy fast delivery across Kuala Lumpur and the entire Malaysia.

Introduction

Delta’s technology leading telecom rectifier DPR 10000B EnergE provides the industrial leading efficiency of 95.8%. The three phase, hot pluggable fan cooled rectifier provides the 21.4 W/in³ outstanding power density. Integrated with the high efficiency rectifier DPR 10000B EnergE, Delta power solution provides an energy saving solution for network base stations, wireless applications, fixed line applications and data communications.



Specifications

Input

Line to Line Voltage (nominal)

  • 220/380/400/480VAC, (three phase, 3W+PE)

Line to Line Voltage (range)

  • 185 – 277VAC @ Low voltage type
  • 320 – 480VAC @ High voltage type

Frequency

  • 50/60Hz

Power Factor

  • > 0.99

Total Harmonic Distortion

  • 5%

Lightening Protection

  • EN 61000-4-5

Voltage (default)

  • -53.5VDC

Voltage (adjustable range)

  • -43 to -58VDC

Maximum Output Current

  • 210A

Maximum Power @ nominal Input

  • 10000W

Power Density

  • 21.4W/in3

Peak Efficiency

  • 95.8% @ 480VAC

Load Regulation

  • ≤ ± 0.5%

Ripple

  • ≤ 100mV

Current Sharing

  • ≤ ± 5%

Alarm and Signaling

  • CANbus to System Controller

Indications

  • OK
  • RFA
  • COM
  • Green
  • Red
  • Green
  • Normal Operation
  • Rectifier Fail
  • Communication Status

Dimensions (W x H x D)

  • 210 x 83 x 435mm (8.26 x 3.26 x 17.12in)

Weight

  • 9.3kg (20.5lb)

Operating Temperature

  • -25 to +70 ᵒC (-13 to +158 ᵒF ); De-rating above 45ᵒC (+113 ᵒF)

Storage Temperature

  • -40 to +80 ᵒC (-40 to +176 ᵒF )

Altitude

  • 0 to +4000m

Related Humidity

  • 0 – 95 % RH non-condensing

Acoustic Noise

  • ≤ 55dBA

Safety

  • Passes CE, UL cUL certifications;
  • Catch the CB certificate;
  • Complies with IEC/EN/UL60950-1

EMC

  • EN 55032 Class B
  • EN 300 386

Environment

  • RoHS

MTBF

  • 300k hours @ 25 ᵒC (+77 ᵒF)
