Huawei

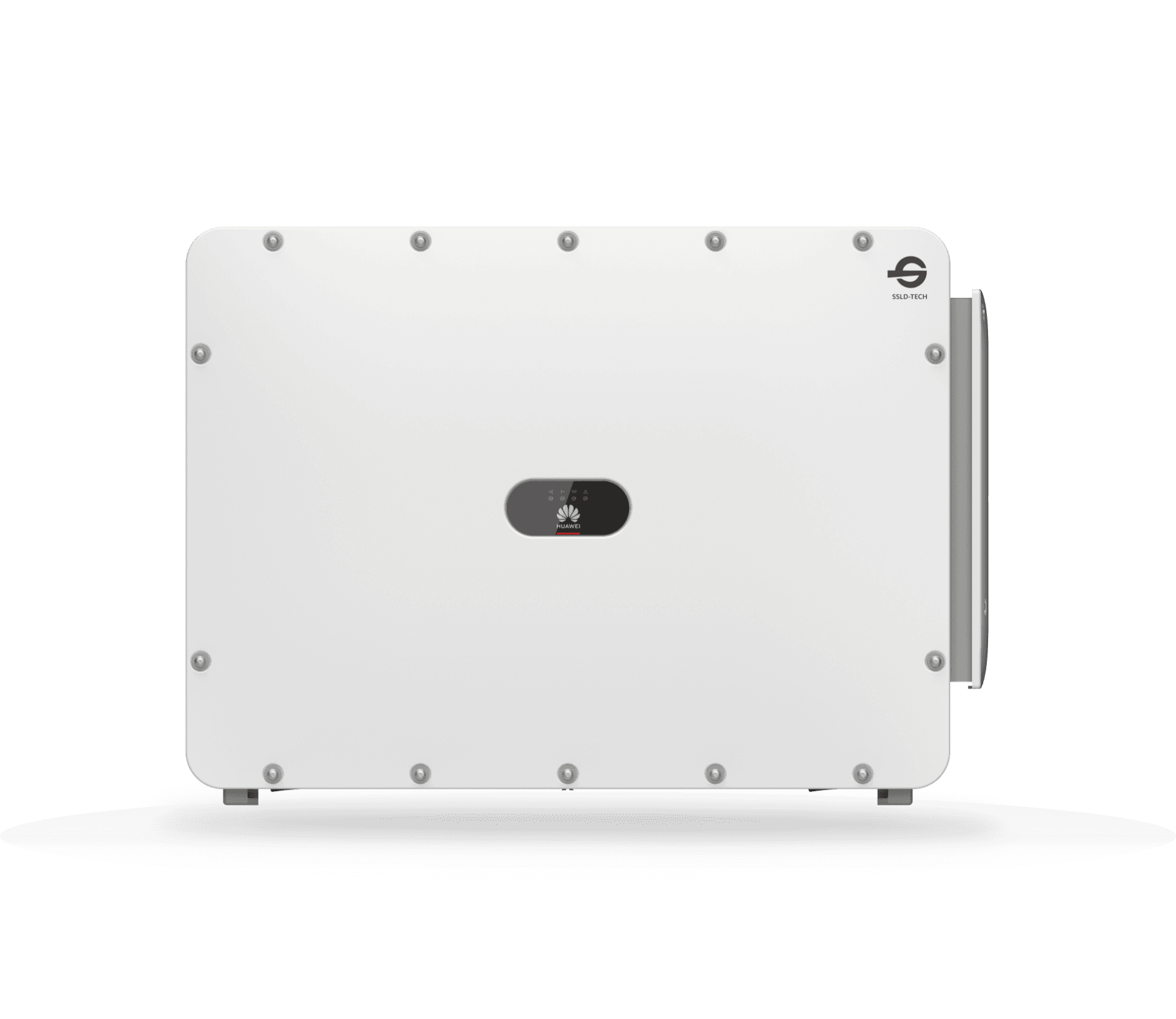

SUN2000-330KTL-H1/H2

A reliable 330kW solar inverter delivering high efficiency and smart monitoring for commercial applications.

Features and Benefits

  • 330kW power output for large commercial and industrial installations
  • High efficiency up to 98.85% for maximum energy conversion
  • Smart IV curve diagnosis for quick fault detection
  • Built-in PID recovery function to maintain panel performance
  • IP66 protection rating for outdoor durability
  • Wide MPPT voltage range for flexible system design

Available to Order
WhatsApp Us
Get Quote Get Quote
Download Datasheet Download Datasheet

Models

  • SUN2000-330KTL-H1
  • SUN2000-330KTL-H2

Overview

How to Buy

Click “WhatsApp Us” or “Get a Quote” above to buy SUN2000-3/4/5/6/8/10KTL-M1 (High Current Version) from APulsar Technologies, Huawei Partner in Malaysia

Purchase walk-in from our office in Petaling Jaya. Or order online and enjoy fast delivery across Kuala Lumpur and the entire Malaysia.

Introduction

Optimal Investment
Efficient Power Generation
Enjoy a constant energy flow with a 1%~2% energy increase. The latest Smart PV Controller boasts a robust and consistent performance, even in harsh conditions and extreme temperatures. With the SDS smart tracking algorithm, the PV modules absorb sunlight effectively even on overcast days or complex terrain, achieving an energy boost.

Compatible with Mainstream PV Modules
SUN2000-330KTL trumps industry compatibility standards, covering the majority of mainstream PV modules. Facilitate simple accessory management by smart purchases and flexible pairing, lowering costs.

Consistent Power Supply Across All Grid Scenarios
Consistently outputs power even in extremely weak and ultra-high voltage AC/DC grids without going off-grid, ensuring exceptional adaptation for power plants in harsh environments.
Feature pioneering grid-tied performance when SCR ≥ 1.1.

Smart Dust Removal with Self-cleaning Fans
Smart self-cleaning tech puts inverter maintenance on its head. By reversing fans automatically to remove dust while working, the device needs no further manual maintenance.

Smart Monitoring, Smart Control
With a four-level monitoring system for the power plant, the PV array, the string, and the device, everything is under control—from the overall operation of the power plant to minor glitches in specific devices. This enables refined, data-driven management.



Specifications

Efficiency
  • Max. efficiency

SUN2000-330KTL-H1 – ≥ 99.03%

SUN2000-330KTL-H2 – ≥ 99.0%

  • European efficiency

SUN2000-330KTL-H1 – ≥ 98.8%

SUN2000-330KTL-H2 – ≥ 98.8%

Input

  • Max. input voltage – 1,500 V
  • Number of MPPT – 6
  • Max. current per MPPT – 65 A
  • Max. short circuit current per MPPT – 115 A
  • Max. PV inputs per MPPT – 4 / 5 / 5 / 4 / 5 / 5
  • Start voltage – 550 V
  • MPPT operating voltage range – 500 V ~ 1,500 V
  • Nominal input voltage – 1,080 V
  • Nominal AC active power

SUN2000-330KTL-H1 – 300,000 W

SUN2000-330KTL-H2 – 275,000 W1

  • Max. AC apparent power – 330,000 VA
  • Max. AC active power (cosφ=1) – 330,000 W
  • Nominal output voltage – 800 V, 3W + PE
  • Rated AC grid frequency – 50 Hz / 60 Hz
  • Nominal output current

SUN2000-330KTL-H1 – 216.6 A

SUN2000-330KTL-H2 – 198.5 A

  • Max. output current

SUN2000-330KTL-H1 – 238.2 A

SUN2000-330KTL-H2 – 240.3 A

  • Adjustable power factor range – 0.8 LG … 0.8 LD
  • Total harmonic distortion – THDi < 1% (Rated)
  • Smart string-level disconnection (SSLD) – Yes
  • Smart connector-level detection (SCLD) – Yes
  • AC overcurrent protection – Yes
  • DC reverse-polarity protection – Yes
  • PV-array string fault detection – Yes
  • DC surge arrester – Type II
  • AC surge arrester – Type II
  • DC insulation resistance detection – Yes
  • Residual current detection unit – Yes
  • Display – LED Indicators, WLAN + APP
  • USB – Yes
  • MBUS – Yes
  • RS485 – Yes
  • Dimensions (W x H x D) – 1,048 x 732 x 395 mm
    Weight (with mounting plate) –  ≤ 112 kg
    Operating temperature range
    -25 °C ~ 60 °C
  • Standards compliance – IEC 62109-1/-2, IEC 62920, IEC 60947-2, EN 50549-2, IEC 61683, etc.

DC MBUS compatible optimizer

  • SUN2000-450W-P2, SUN2000-600W-P

Safety

  • EN/IEC 62109-1, EN/IEC 62109-2, IEC 62116

Grid connection standards

  • G98, G99, EN 50438, CEI 0-21, VDE-AR-N-4105, AS 4777, C10/11, ABNT, UTE C15-712, RD 1699, TOR D4, NRS 097-2-1, IEC61727, IEC62116, DEWA
