Huawei

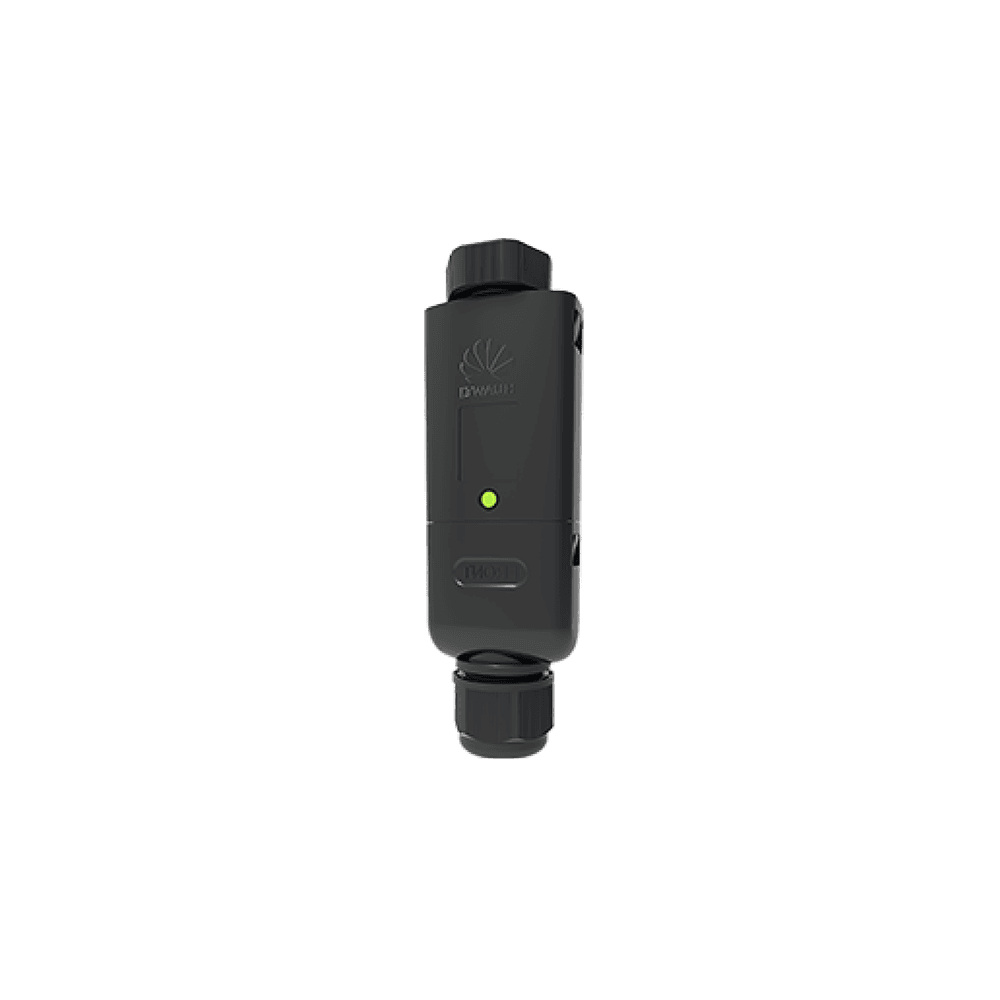

Smart Dongle-WLAN-FE

Connects Inverts and Data Service

Features and Benefits

  • Easy Communication
  • Smart O&M
  • IP65 Protection

In Stock
WhatsApp Us
Get Quote Get Quote
Download Datasheet Download Datasheet

Models

  • SDongleA-05 (AP+STA)

Overview

How to Buy

Click “WhatsApp Us” or “Get a Quote” above to buy Smart Dongle-WLAN-FE from APulsar Technologies, Huawei Partner in Malaysia

Purchase walk-in from our office in Petaling Jaya. Or order online and enjoy fast delivery across Kuala Lumpur and the entire Malaysia.

Introduction

Via WLAN and Fast Ethernet (FE) connection, Smart Dongle supports up to 10 inverters to communicate with the solar management system through hassle-free plug and play.

Once plugged in, the WLAN access point can be used for local deployment to realize intelligent power management and plant maintenance. Both FusionSolar SmartPVMS and the third-party management system can be bound to the inverters.

Being dustproof and waterproof for IP65 protection, Smart Dongle is ready to defy dust and rain after outdoor installation at any moment.



Specifications

General Specification

Max. devices supported

  • 10

Max. inverters supported

  • 10

Connection interface

  • USB

Ethernet interface

  • 10 / 100 M Ethernet

Installation

  • Plug-and-play

Indicator

  • LED Indicator

Dimensions (W x H x D)

  • 146 mm x 48 mm x 33 mm (5.1 in. x 1.9 in. x 1.3 in.)

Weight

  • 90 g (0.2 lb.)

IP rating

  • IP65

Power (typical)

  • 2.5 W

Working mode

  • AP + STA

Security

  • Security protocol: WPA/WPA2
  • Encryption: TKIP/CCMP/AES

Supported standards & frequencies

  • LTE-FDD/TDD, WCDMA, GSM, 802.11b/g/n (2.412–2.484 GHz)

Operating temperature range

  • -30 °C to +65 °C (-22 °F to +149 °F)

Relative humidity range

  • 5% – 95% RH

Storage temperature range

  • -40 °C to +70 °C (-40 °F to +158 °F)

Max. operating altitude

  • 4000 m (13,123 ft.)

Certificate

  • SRRC, CE, RCM

Inverter model

  • SUN2000-2/3/3.68/4/4.6/5/6KTL-L1, SUN2000-8/10K-LC0,
  • SUN2000-3/4/5/6/8/10KTL-M1, SUN2000-12/15/17/20/25KTL-M5,
  • SUN2000-12/15/17/20/25K-MB0, SUN2000-5/6/8/10/12K-MAP0,
  • SUN5000-8/12K-MAP0, SUN5000-17/25K-MB0
