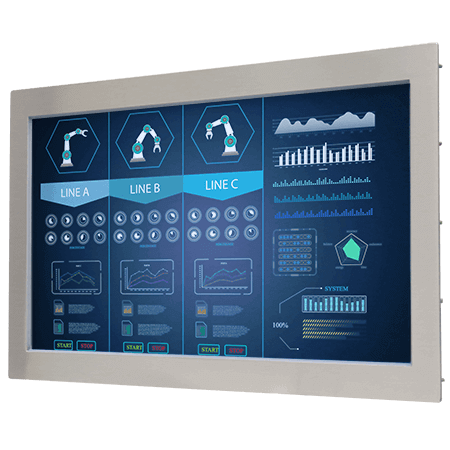

W22L100-STA3

Winmate 21.5-inch stainless panel mount display W22L100-STA3 for food processing, beverage and chemical indsutry applications.

Features and Benefits

  • 21.5″, 1920 x 1080, Stainless Panel Mount Display
  • VGA and HDMI input
  • Panel mount
  • VESA mount

Available to Order
WhatsApp Us
Get Quote Get Quote
Download Datasheet Download Datasheet

Models

  • W22L100-STA3

Overview

How to Buy

Click “WhatsApp Us” or “Get a Quote” above to buy W22L100-STA3 from APulsar Technologies, WINMATE official partner.

Winmate Stainless Panel Mount Display Series combines durability with sleek functionality, making it ideal for industrial and commercial applications. Available in sizes from 15″ to 21.5″, these displays feature a robust stainless-steel design, VGA and HDMI inputs, and flexible panel or VESA mounting options. The true-flat design ensures easy cleaning, while the high-resolution screens deliver clear visuals for critical operations. Perfect for environments demanding reliability, hygiene, and precision, these displays seamlessly integrate into diverse industrial workflows.



Specifications

Display

Resolution

  • 1920×1080

Size

  • 21.5 inches

Contrast Ratio

  • 3000:1

Panel Brightness

  • 250 nits

Display Color

  • 16.7M Colors

View Angles

  • 89,89,89,89

Active Area

  • 476.64×268.11 mm

Touch / Glass

  • Resistive Touch Screen (Optional)
  • Protection Glass Without Touch Function (Optional)

Dimension

  • 544 x 340 x 68 mm

Mounting

  • Panel mount
  • VESA Mount

Enclosure

  • Stainless front bezel

Cooling System

  • Fanless design

Operating Humidity

  • 10% to 90% RH, Non-Condensing

Operating Temperature

  • 0°C to 50°C

Storage Temperature

  • -10°C to 60°C

IP rating

  • Front IP65

Certification

  • CE, FCC

Power Input

  • 1 x 12V DC, 2.5φ DC jack

USB Port

  • 1x USB type-A for touch screen control (Optional)

Serial Port

  • 1 x RS232 D-sub9 for touch screen control (Optional)

Video

  • 1x VGA input (Default)
  • 1x HDMI input (Optional)
  • 1x DVI input (Optional)

Indicator

  • 1 x LED Indicator for power
  • 1 x LED Indicator for status

Button

  • 1 x Power Button
  • 1 x Adjust up button
  • 1 x Adjust down button
  • 1 x ESC (Auto) button
  • 1 x OK (Menu) button

Accessory

  • 100~240V AC to DC Adapter
  • Power Cord
  • External USB Cable For Touchscreen Control
  • External VGA Cable
  • External HDMI Cable
  • VESA Screws

Optional Accessory

  • External DVI Cable (Optional)

Power Rating

  • 12V DC
