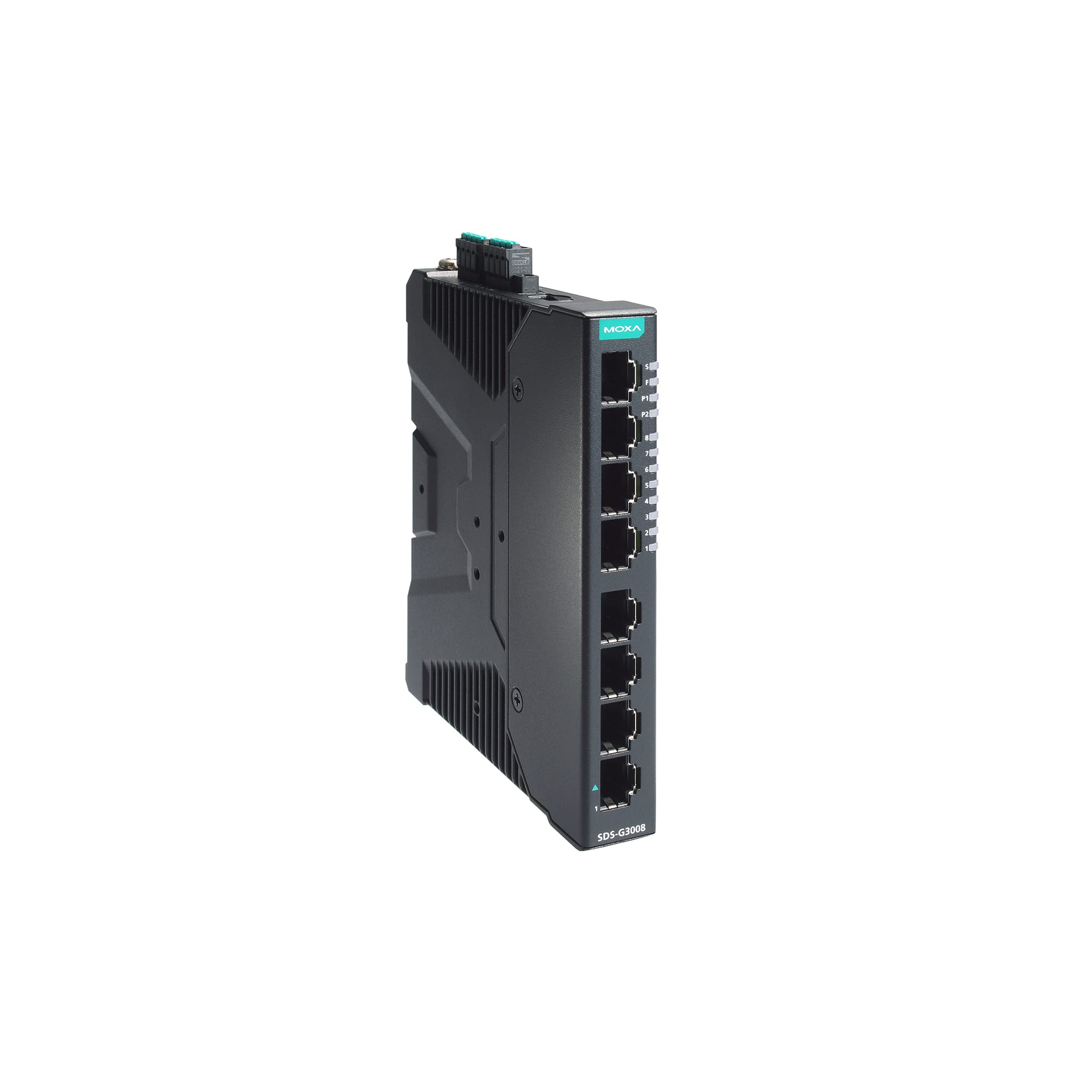

SDS-G3008 Series

Industrial 8-port full Gigabit smart Ethernet switches

Features and Benefits

  • Compact and flexible housing design to fit into confined spaces
  • Web-based GUI for easy device configuration and management
  • Multi-language web GUI: English, Traditional Chinese, Simplified Chinese, Japanese, German, and French
  • Supports RSTP/STP, and MRP for network redundancy to ensure high network availability
  • EtherNet/IP, PROFINET, and Modbus TCP industrial protocols supported for easy integration and monitoring in
    automation HMI/SCADA systems
  • Security features based on IEC 62443
  • Rotary DIP switch can perform profile-based settings without using a web browser
  • Supports MXstudio for easy, visualized industrial network management

Available to Order
WhatsApp Us
Get Quote Get Quote
Download Datasheet Download Datasheet

Models

  • SDS-G3008
  • SDS-G3008-T

Overview

How to Buy

Click “WhatsApp Us” or “Get a Quote” above to buy SDS-G3008 from APulsar Technologies, MOXA official distributor.

Purchase walk-in from our office in Petaling Jaya, or order online and enjoy fast delivery across Kuala Lumpur and the entire Malaysia.

Introduction

The SDS-G3008 smart Ethernet switch is the ideal product for IA engineers and automation machine builders to make their networks compatible with the vision of Industry 4.0. By breathing life into machines and control cabinets, the smart switch simplifies daily tasks with its easy configuration and easy installation. In addition, it is monitorable and is easy to maintain throughout the entire product life cycle.

The most frequently used automation protocols—including EtherNet/IP, PROFINET, and Modbus TCP—are embedded in the SDS-G3008 switch to provide enhanced operational performance and flexibility by making it controllable and visible from automation HMIs. It also supports a range of useful management functions, including IEEE 802.1Q VLAN, port mirroring, SNMP, warning by relay, and a multi-language Web GUI.

Additional Features and Benefits

  • IP port binding to ensure critical devices can be replaced quickly without reassigning the IP Address
  • IEEE 802.1Q VLAN to ease network planning
  • Supports the ABC-02-USB (automatic Backup Configurator) for quick system configuration backup/restore and
    firmware upgrade
  • Automatic warning by exception through relay output
  • Unused port lock, SNMPv3 and HTTPS to enhance network security
  • Port mirroring for online debugging and monitoring
  • Local log and the ability to export inventory files ease inventory management



Specifications

Ethernet Interface

10/100/1000BaseT(X) Ports (RJ45 connector)

  • 8
  • Auto negotiation speed
  • Full/Half duplex mode
  • Auto MDI/MDI-X connection

Standards

  • IEEE 802.3 for 10BaseT
  • IEEE 802.3u for 100BaseT(X)
  • IEEE 802.3ab for 1000BaseT(X)
  • IEEE 802.3x for flow control
  • IEEE 802.1D-2004 for Spanning Tree Protocol
  • IEEE 802.1w for Rapid Spanning Tree Protocol
  • IEEE 802.1Q for VLAN Tagging
  • IEEE 802.1p for Class of Service

Industrial Protocols

  • EtherNet/IP
  • Modbus TCP
  • PROFINET IO Device

Management

  • Back Pressure Flow Control
  • DHCP Client
  • Fiber check
  • Flow control
  • IPv4/IPv6
  • LLDP
  • Port Mirror
  • RMON
  • SNMP Inform
  • SNMPv1/v2c/v3
  • Syslog

MIB

  • RFC1213
  • Ethernet-like MIB
  • IF MIB
  • LLDP MIB
  • Bridge MIB
  • Q-BRIDGE MIB

Redundancy Protocols

  • RSTP
  • STP
  • MRP

Security

  • Broadcast storm protection
  • HTTPS/SSL
  • SNMPv3
  • Port Lock
  • Trust access control

Time Management

  • NTP Server/Client
  • SNTP

Filter

  • 802.1Q VLAN

MAC Table Size

  • 8 K

Max. No. of VLANs

  • 8

VLAN ID Range

  • VID 1 to 4094

Packet Buffer Size

  • 3 Mbits

LED Indicators

  • PWR1, PWR2, STATE, FAULT, 10/100M (TP Port), 1000M (TP port)

Storage Port

  • USB Type A (for ABC-02 only)

Alarm Contact Channels

  • 1 relay output with current carrying capacity of 1 A @ 24 VDC

Buttons

  • Reset button

Digital Input Channels

  • 1

Digital Input

  • +13 to +30 V for state 1
  • -30 to +3 V for state 0
  • Max. input current: 8 mA

Connection

  • 2 removable 4-contact terminal block(s)

Input Voltage

  • 12-48 VDC
    Redundant dual inputs

Operating Voltage

  • 9.6 to 60 VDC

Input Current

  • 0.76 max. A @ 12-48 VDC

Power Consumption (Max.)

  • 8.42 W

Overload Current Protection

  • Supported

Reverse Polarity Protection

  • Supported

Dimensions

  • 20 x 135 x 111 mm (0.79 x 5.32 x 4.37 in)

Installation

  • DIN-rail mounting
  • Wall mounting (with optional kit)

Housing

  • Metal

Weight

  • 427 g (0.94 lb)

IP Rating

  • IP40

Ambient Relative Humidity

  • 5 to 95% (non-condensing)

Operating Temperature

  • Standard Models: -10 to 60°C (14 to 140°F)
  • Wide Temp. Models: -40 to 75°C (-40 to 167°F)

Storage Temperature (package included)

  • -40 to 85°C (-40 to 185°F)

Safety

  • EN IEC 62368-1
  • UL 61010-2-201

EMC

  • EN 55032/35
  • EN 61000-6-2/-6-4

EMI

  • CISPR 32, FCC Part 15B Class A

EMS

  • IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV
  • IEC 61000-4-3 RS: 80 MHz to 800 MHz: 10 V/m; 800 MHz to 1 GHz: 20 V/m
  • IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV
  • IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV (1.2/50 μs), 1 kV (10/700 μs)
  • IEC 61000-4-6 CS: 10 V
  • IEC 61000-4-8 PFMF

Shock

  • IEC 60068-2-27

Vibration

  • IEC 60068-2-6

Freefall

  • IEC 60068-2-32

Time

  • 3,483,278 hrs

Standards

  • Telcordia (Bellcore)
  • GB

Warranty Period

  • 5 years
