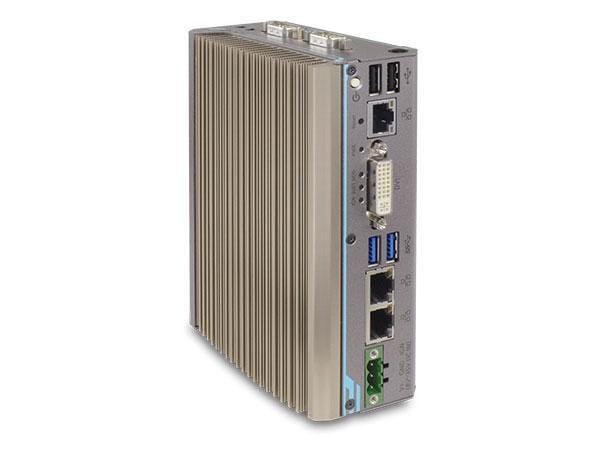

POC-300 Series

Features and Benefits

  • Intel® Apollo Lake Pentium® N4200 and Atom® E3950 quad-core processor
  • Fanless and rugged, wide temperature operation (-25 °C to 70 °C)
  • One GbE port and two Gigabit PoE+ ports
  • Two USB 3.1 Gen1 and two USB 2.0 ports
  • DVI + VGA dual display outputs
  • Front I/O access DIN-mounting design
  • MezIO® compatible

Available to Order
WhatsApp Us
Get Quote Get Quote
Download Datasheet Download Datasheet

Models

  • POC-300
  • POC-310
  • POC-320
  • POC-330

Overview

Introduction

Experience the giant leap in performance of Intel® Apollo Lake Pentium® and Atom® platform! POC-300 series features the latest Pentium® N4200 and Atom® x7-E3950 quad-core processors which offers up to 1.5 times the CPU performance and 3 times the GPU performance improvement compared to previous generation Atom® E3845 CPU.

POC-300 series has an ingenious mechanical design that combines DIN-rail mounting chassis with front-accessible I/O in one ultra-compact enclosure. It has rich computer-like I/Os such as GbE, USB 3.1 Gen1/2,0, COM ports and mSATA storage in a compact footprint that measures just 5.6 x 15 x 11 cm. IEEE 802.3at PoE+ function is also available on 2 of the 3 GbE ports to power cameras for machine vision or surveillance applications. POC-300 series features Neousys’ MezIO® interface for easy function expansion via versatile MezIO® modules.

With Neousys’ proven fanless design heritage, the POC-300 series thrives in harsh environments. Featuring rich I/Os, advanced CPU and compact size, POC-300 is a compelling fanless embedded controller beneficial for various industrial applications.

Specifications

POC-300 | POC-310

System Core

Processor

  • Intel® Atom® E3950 1.6/2.0 GHz quad-core processor
  • Memory 1x SODIMM socket for DDR3L-1866, up to 8GB
  • Graphics Integrated Intel® HD Graphics 505

Panel I/O Interface

Ethernet

  • 3x Gigabit Ethernet ports by Intel® I210 GbE controller

POE

  • IEEE 802.3at PoE+ on port #2 and #3, 50 W total power budget
    (available for POC-300 only)

Video Port

  • 1x DVI-I connector for both analog RGB and DVI outputs

Serial Port

  • 1x Software-programmable RS-232/422/485 ports (COM1)
  • 3x 3-wire RS-232 ports (COM2/3/4) or 1x RS-422/485 port (COM2)

USB

  • 2x USB 3.1 Gen1 ports
  • 2x USB 2.0 ports

Audio

  • 1x speaker-out
  • 1x microphone-in

Internal I/O Interface

Mini-PCIe

  • 1x full-size mini PCI Express slot with USIM socket

Storage Interface

mSATA

  • 1x half-size mSATA port

SATA

  • 1x SATA port for 2.5″ SSD/ HDD installation
    (optional with MezIO-R11)

Mechanical

Dimension

  • 56 x 108 x 153 mm

Weight

  • 0.96kg

Mounting

  • DIN-rail mount (standard)
  • Wall-mount (optional)

Environmental

Operating Temperature

  • -25°C ~ 70°C with SSD, 100% CPU loading */**
  • -10°C ~ 50°C with HDD, 100% CPU loading */**

Storage Temperature

  • -40°C ~85°C

Humidity

  • 10%~90% , non-condensing

Vibration

  • Operating, 5 Grms, 5-500 Hz, 3 Axes (w/ SSD, according to IEC60068-2-64)

Shock

  • Operating, 50 Grms, Half-sine 11 ms Duration (w/ SSD, according to IEC60068-2-27)

EMC

  • CE/FCC Class A, according to EN 55022 & EN 55024

System Core

Processor

  • Intel® Pentium® N4200 1.1/2.5 GHz quad-core processor

Memory

  • 1x SODIMM socket for DDR3L-1866, up to 8GB

Graphics

  • Integrated Intel® HD Graphics 505

Panel I/O Interface

Ethernet

  • 3x Gigabit Ethernet ports by Intel® I210 GbE controller

POE

  • IEEE 802.3at PoE+ on port #2 and #3, 50 W total power budget
    (available for POC-320 only)

Video Port

  • 1x DVI-I connector for both analog RGB and DVI outputs

Serial Port

  • 1x Software-programmable RS-232/422/485 ports (COM1)
  • 3x 3-wire RS-232 ports (COM2/3/4) or 1x RS-422/485 port (COM2)

USB

  • 2x USB 3.1 Gen1 ports
  • 2x USB 2.0 ports

Audio

  • 1x speaker-out
  • 1x microphone-in

Internal I/O Interface

Mini-PCIe

  • 1x full-size mini PCI Express slot with USIM socket

Storage Interface

mSATA

  • 1x half-size mSATA port

SATA

  • 1x SATA port for 2.5″ SSD/ HDD installation
    (optional with MezIO-R11)

Mechanical

Dimension

  • 56 x 108 x 153 mm

Weight

  • 0.96kg

Mounting

  • DIN-rail mount (standard)
  • Wall-mount (optional)

Environmental

Operating Temperature

  • -25°C ~ 70°C with SSD, 100% CPU loading */**
  • -10°C ~ 50°C with HDD, 100% CPU loading */**

Storage Temperature

  • -40°C ~85°C

Humidity

  • 10%~90% , non-condensing

Vibration

  • Operating, 5 Grms, 5-500 Hz, 3 Axes (w/ SSD, according to IEC60068-2-64)

Shock

  • Operating, 50 Grms, Half-sine 11 ms Duration (w/ SSD, according to IEC60068-2-27)

EMC

  • CE/FCC Class A, according to EN 55022, EN55032 & EN 55024
