Click “WhatsApp Us” or “Get a Quote” above to buy EC954 Series High-Performance AI Edge Computer from APulsar Technologies, InHand official distributor.

Purchase from our office in Petaling Jaya, or order online and enjoy fast delivery across Kuala Lumpur and the entire Malaysia.

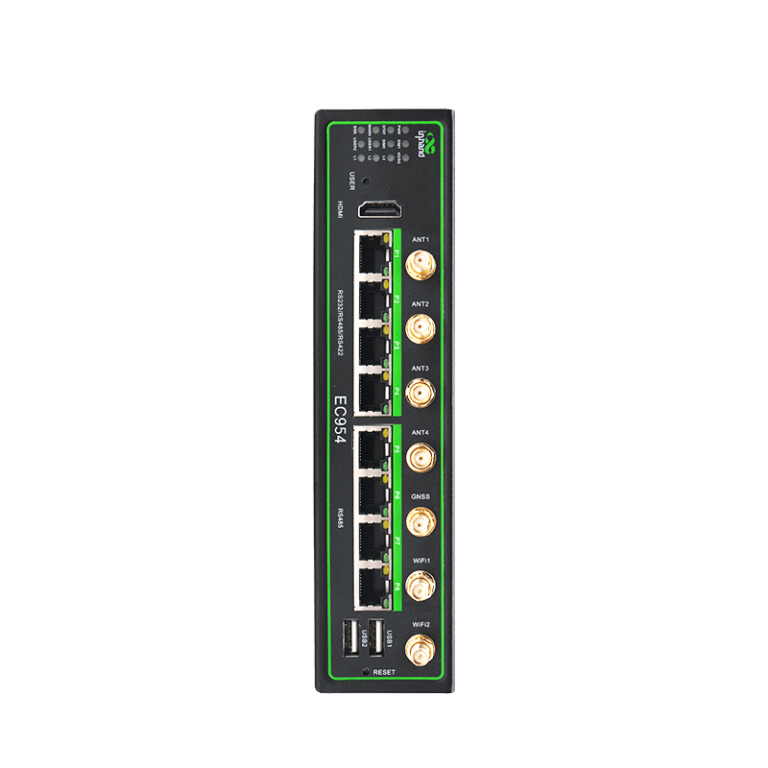

Product introduction

The EC954 is a high-performance multi-interface edge computer with AI extensions that can scale up to 26 TOPS AI computing power and supports the TensorRT/cuDNN/ VisionWorks/OpenCV AI framework. Powered by the ARM CortexA55@2.0GHz quad-core processor, it provides a powerful computing platform. The product uses the Linux distribution system to provide users with flexible and diverse secondary development environment. Security features such as Secure Boot and TPM2.0 are supported to ensure software and data security. Built-in DeviceSupervisor Agent (DSA) service, easy to achieve data collection, processing and cloud, support DeviceLive cloud management.

Performance and Platform

  • CPU: ARM Quad Cortex-A55@2.0GHz
  • GPU: Mail-G52 2EE
  • NPU: RKNN, integrated 1.0 TOPS computing power, expansion up to 26TOPS
  • TensorRT/cuDNN/ VisionWorks/OpenCV AI framework supported
  • *IEOS

Rich interfaces

  • 4x 10/100/1000Mbps
  • Ethernet interface
  • 2x CAN FD
  • 2x USB2.0
  • 1x mSATA
  • 1x MicroSD
  • 4x RS-232 / RS-485 / RS-422 + 4x RS-485
  • I/O, GPS, WIFI/Bluetooth

Stable communication

  • 5G/4G/Wi-Fi/GbE, etc
  • Wired, cellular, Wi-Fi mutual backup, dual SIM failover
  • Independent hardware and software watchdog
  • Multilevel link detection, communication self-healing
  • Fanless

High-level security

  • Linux system security patches and vulnerability remediation services
  • Firewall, VPN
  • Secure Boot
  • TPM 2.0
  • TrustZone

DeviceSupervisor™ Agent Service

  • “Zero code/Low code” easy to achieve data acquisition on the cloud
  • Integrate 80+ mainstream data acquisition protocols
  • Support data preprocessing
  • Integrated data publishing services, public cloud, private cloud, local SCADA and other seamless access

InHand DeviceLive Cloud Manager

  • Remote device access
  • Remote device batch management
  • Remote batch management of edge AI applications
  • Remote container management



Specifications

Hardware Platform

CPU

  • Quad-core Cortex-A55@2.0GHz

GPU Mali G52 2EE

  • NPU 1.0 TOPS, empowered by Hailo-8 M.2 AI module up to 26 TOPS

RAM

  • 4GB

FLASH

  • 16GB eMMC

EtherNet Port

  • 4x 10/100/1000Mbps Ethernet port

Serial Port

  • 4x RS-232/485/422+4x RS485，RJ45

I/O

  • 4x DI, 4x DO CAN 2x CAN 2.0A/B

Wi-Fi

  • STA, 802.11ac/a/b/g/n, 2.4G/5G dual band

Bluetooth

  • BLE 5.0

GPS

  • Supports GPS, Beidou, and GLONASS positioning

USB

  • USB

    2.0, 2x TypeA, 1x TypeC

HDMI

  • 1x HDMI2.0

Expansion Interface

  • 1x mSATA, B key 3042 (Hailo AI)

Reset Button

  • Pinhole reset button

SIM Card

  • 2x Standard SIM

TF Card

  • Supports Micro SD

TPM

  • TPM 2.0

Installation

  • DIN-rail, wall mounting

Protection Rating

  • IP30

Housing

  • Metal

Dimensions

  • 200 x 120 x 48.6 mm



Power Input

  • DC 12-48V, polarity reversal protection

Power Interface

  • Industrial terminal block

Power Consumption

  • 4W(Typical. OS idle mode)
  • 8W(Max. Full loading)

Working Temperature

  • -20~ 70℃

Storage Temperature

  • -40 ~ 85℃

Ambient Humidity

  • 5 ~ 95% (non-condensing)

LED

  • 4G/5G
  • Signal Strength(L1,L2,L3)
  • SIM1
  • SIM2
  • User1
  • User2
  • PWR
  • STATUS
  • WARN
  • ERR

Electrostatic Discharge

  • EN61000-4-2, level 3

Radiation RFI Immunity

  • EN61000-4-3, level 3

Electrical Fast Transients

  • EN61000-4-4, level 3

Surge

  • EN61000-4-5, level 3

Conducted RFI

  • EN61000-4-6 ,level 3

Ring Wave Immunity

  • EN61000-4-12,level 3

Shock

  • IEC60068-2-27

Vibration

  • IEC60068-2-6

Free Fall

  • IEC60068-2-32
  • CE
  • FCC
  • PTCRB
  • Verizon Wireless
  • AT&T

Operation System

  • Yocto/Linux(Debian 11,Kernel 5.10)

File System

  • Debian Core root filesystem

Package Manager

  • Debian Package Manager

Network Type

  • LTE Cat4, LTE Cat6, 5G SA/NSA(Different models for different networks)

Network Access

  • APN, VPDN

Access Authentication

  • CHAP/PAP

LAN Protocol

  • ARP, Ethernet

WAN Protocol

  • Static IP, DHCP

Secure Boot

  • Support

Backup

  • Dual SIM

Link Detection

  • Multi-Level link detection, auto-redials once disconnected

Embedded Watchdog

  • Device self-diagnosing, auto-recovers from operation faults

Industrial Protocol

  • Modbus RTU Master/Slave, Modbus TCP Master/Slave, EtherNet/IP, ISO on TCP, OPC UA Client/Server, Mitsubishi MC 3C/3E/3C OverTCP, Mitsubishi CPU Port, FINSUDP, HostLink, PPI

Electricity Protocol

  • DLT645-2007, IEC101/104, DNP3.0

Other Protocol

  • BACnet, CNC

Upgrade Method

  • Supports patent upgrade mechanism, local or remote firmware upgrade

Configuration Mode

  • WEB

Log

  • Support local system logs, remote logs, and important log poweroff preservation

Remote Management

  • InHand DeviceLive, HTTP, HTTPS, SSH,etc.

DeviceLive Cloud

  • Supports cloud-based parameter configuration, container management, application and firmware management
