Click “WhatsApp Us” or “Get a Quote” above to buy EC942 Series lite AI Edge Computer from APulsar Technologies, InHand official distributor.

Purchase from our office in Petaling Jaya, or order online and enjoy fast delivery across Kuala Lumpur and the entire Malaysia.

Product introduction

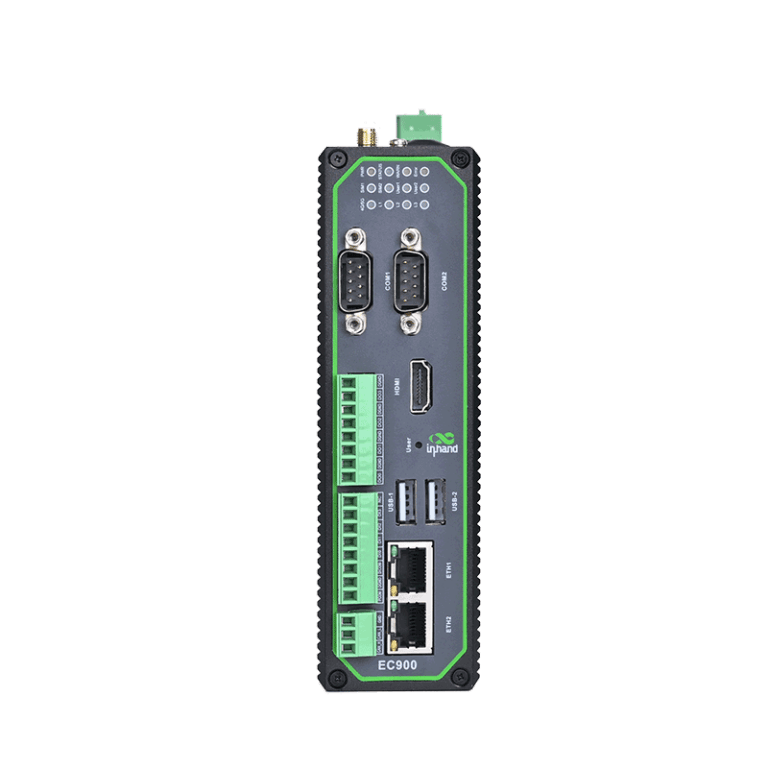

EC942 series edge computer is a lightweight AI-accelerated edge computer launched by InHand for the industrial Internet of Things. It is equipped with an ARM Cortex-A55@2.0GHz quad-core processor, and comes standard with 4GB RAM and 16GB eMMC, providing a powerful computing platform. The product uses the Linux distribution system to provide users with flexible and diverse secondary development environment. Security features such as Secure Boot and TPM2.0 are supported to ensure software and data security. Built-in Device- Supervisor™ Agent (DSA) service, easy to achieve data collection, processing and cloud, and support DeviceLive.

Performance and Platform

  • CPU: ARM Quad CortexA55@2.0GHz
  • GPU: Mali-G52 2EE
  • NPU: RKNN, 1 TOPS
  • Support customers to develop and install edge applications
  • Docker
  • *IEOS

Rich Interfaces

  • 2x 10/100/1000Mbps Ethernet interface
  • 1x CAN BUS
  • 2x USB2.0
  • 1x mSATA
  • 1x MicroSD
  • 2x RS-232/RS-485/RS-422
  • I/O, GPS, Wi-Fi and Bluetooth optional

Stable communication

  • 5G/4G/Wi-Fi/GbE, etc
  • Wired, cellular, Wi-Fi mutual backup, dual SIM failover
  • Independent hardware and software watchdog
  • Multilevel link detection, communication self-healing
  • Fanless

High-level security

  • Linux system security patches and vulnerability remediation services
  • Firewall, VPN
  • Secure Boot
  • TPM 2.0
  • TrustZone

DeviceSupervisor™ Agent Service

  • Easy to achieve data acquisition on the cloud
  • Integrate 80+ mainstream data acquisition protocols
  • Support data preprocessing
  • Integrated data publishing services, public/private cloud, local SCADA

InHand DeviceLive Cloud Service

  • Remote device access
  • Remote device batch management
  • Remote batch management of edge AI applications
  • Remote container management

Specifications

Hardware Platform

CPU

  • Quad-core Cortex-A55@2.0GHz

GPU

  • Mali-G52 2EE

RAM

  • 4GB

STORAGE

  • 16GB eMMC

EtherNet Port

  • 2x 10/100/1000Mbps Ethernet port

Serial Port

  • 2x RS-232/485/422, DB9

I/O (Optional)

  • 4x DI, 4x DO

CAN (Optional) 1

  • 1x CAN 2.0A/B

Wi-Fi (Optional)

  • STA, 802.11ac/a/b/g/n, 2.4G/5G dual band

Bluetooth (Optional)

  • BLE 4.2

GPS (Optional)

  • Supports GPS, Beidou, and GLONASS positioning

USB

  • USB 2.0, 2x TypeA, 1x TypeC

HDMI

  • 1x HDMI 2.0

Expansion Interface

  • 1x mSATA, supports mSATA SSD

Reset Button

  • Pinhole reset button

SIM Card

  • 2x MicroSIM

TF Card

  • Supports MicroSD cards up to 32GB (recommended maximum capacity)

TPM (Optional)

  • Integrated TPM chip, TPM2.0

Installation

  • DIN-rail, wall mounting

Housing

  • Metal

Dimensions

  • 47.3x 162.7x 148.3mm

Power Input

  • DC 12-48V, polarity reversal protection

Power Interface

  • Industrial terminal block

Power Consumption

  • 8W

Working Temperature

  • -20~ 70℃

Storage Temperature

  • -40 ~ 85℃

Ambient Humidity

  • 5 ~ 95% (non-condensing)



LED

  • 4G/5G, Signal Strength(L1, L2, L3), SIM1, SIM2, User1, User2, PWR, STATUS, WARN, ERR

Electrostatic Discharge

  • EN61000-4-2, level 3

Radiation RFI Immunity

  • EN61000-4-3, level 3

Electrical Fast Transients

  • EN61000-4-4, level 3

Surge

  • EN61000-4-5, level 3

Conducted RFI

  • EN61000-4-6 ,level 3

Ring Wave Immunity

  • EN61000-4-12,level 3

Power Frequency Magnetic Field Resistance

  • EN61000-4-8, horizontal / vertical 400A/m (>level 2)

Shock

  • IEC60068-2-27

Vibration

  • IEC60068-2-6

Free Fall

  • IEC60068-2-32
  • CE
  • FCC
  • PTCRB
  • Verizon Wireless
  • AT&T
  • T-Mobile

OS

  • Yocto/Linux(Debian 10, Kernel 4.19)

File System

  • Debian core root filesystem

Package Manager

  • Debian Package Manager

Network Type

  • 5G, LTE Cat4, LTE Cat6(Different models for different networks)

Network Access

  • APN, VPDN

Access Authentication

  • CHAP/PAP

LAN Protocol

  • ARP, Ethernet

WAN Protocol

  • Static IP, DHCP



Secure Boot

  • Support

Backup

  • Dual SIM

Link Detection

  • Multi-Level link detection, auto-redials once disconnected

Embedded Watchdog

  • Device self-diagnosing, auto-recovers from operation faults

Data Acquisition Protocol(*DSA)

  • Modbus RTU Master/Slave, Modbus TCP Master/Slave, EtherNet/IP, ISO on TCP, OPC UA Client/Server, Mitsubishi MC 3C/3E/3C OverTCP, Mitsubishi CPU Port, FINSUDP, HostLink, PPI

Electricity Protocol

  • DLT645-2007, IEC101/104, DNP3.0

Other Protocol

  • BACnet, CNC

Upgrade Method

  • Supports patent upgrade mechanism, local or remote firmware upgrade

Log

  • Support local system logs, remote logs, and important log power-off preservation

Remote Management

  • InHand DeviceLive, HTTP, HTTPS, SSH,etc.

DeviceLive Cloud

  • Supports cloud-based parameter configuration, container management, application and firmware management
