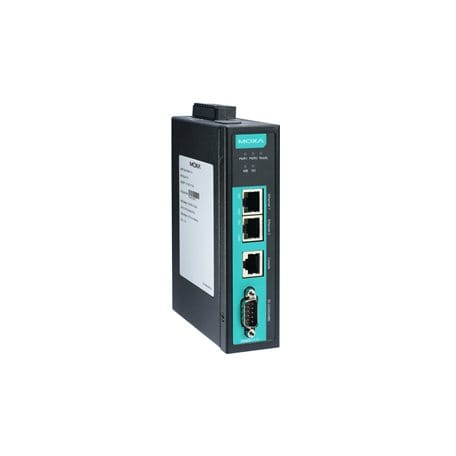

MGate 5114 Series

1-port Modbus RTU/ASCII/TCP/IEC 101-to-IEC 104 gateways

Features and Benefits

  • Protocol conversion between Modbus RTU/ASCII/TCP, IEC 60870-5-101, and IEC 60870-5-104
  • Supports IEC 60870-5-101 master/slave (balanced/unbalanced)
  • Supports IEC 60870-5-104 client/server
  • Supports Modbus RTU/ASCII/TCP master/client and slave/server
  • Effortless configuration via web-based wizard
  • Status monitoring and fault protection for easy maintenance
  • Embedded traffic monitoring/diagnostic information for easy troubleshooting
  • microSD card for configuration backup/duplication and event logs
  • Built-in Ethernet cascading for easy wiring
  • Redundant dual DC power inputs and relay output
  • -40 to 75°C wide operating temperature models available
  • Serial port with 2 kV isolation protection
  • Security features based on IEC 62443

Available to Order
WhatsApp Us
Get Quote Get Quote
Download Datasheet Download Datasheet

Models

  • MGate 5114
  • MGate 5114-T

Overview

How to Buy

Click “WhatsApp Us” or “Get a Quote” above to buy MGate 5114 Series from APulsar Technologies, MOXA official distributor.

Purchase walk-in from our office in Petaling Jaya, or order online and enjoy fast delivery across Kuala Lumpur and the entire Malaysia.

Introduction

The MGate 5114 is an industrial Ethernet gateway with 2 Ethernet ports and 1 RS-232/422/485 serial port for Modbus RTU/ASCII/TCP, IEC 60870-5-101, and IEC 60870-5-104 network communications. By integrating commonly used power protocols, the MGate 5114 provides the flexibility needed to fulfill the various conditions that arise with field devices that use different communications protocols to connect to a power SCADA system. To integrate Modbus or IEC 60870-5-101 devices onto an IEC 60870-5-104 network, use the MGate 5114 as a Modbus master/client or IEC 60870-5-101 master to collect data and exchange data with IEC 60870-5-104 systems.

Easy Configuration via Web Console

  • The MGate 5114 Series comes with an illustrated Quick Setup guide designed to make configuration easy. With Quick Setup, you can easily access protocol conversion modes and finish the configuration in a few steps.

Modbus RTU/ASCII/TCP Protocol Traffic Monitor

  • MGate 5114 Series gateways support Modbus RTU/ASCII/TCP, IEC 60870-5-101, and IEC 60870-5-104 Protocol Traffic Monitor for easy troubleshooting, especially during the installation stage. It is worth mentioning that traffic logs can be viewed in the popular troubleshooting tool, Wireshark. With this feature, you can easily analyze traffic to determine the root cause of a problem.

Maintenance Functions

  • MGate 5114 gateways support a system log function that records events in the MGate; users can easily review log data remotely through the web console. The gateways also support status monitoring and fault protection functions. The status monitoring function notifies a PSCADA system when a device gets disconnected or does not respond, in which case the PSCADA system gets the status of each end device and then issues alarms to notify operators.

Specifications

Ethernet Interface

10/100BaseT(X) Ports (RJ45 connector)

  • 2
  • Auto MDI/MDI-X connection

Magnetic Isolation Protection

  • 1.5 kV (built-in)

Industrial Protocols

  • Modbus TCP Client (Master)
  • Modbus TCP Server (Slave)
  • IEC 60870-5-104 Client
  • IEC 60870-5-104 Server

Configuration Options

  • Web Console (HTTP/HTTPS)
  • Device Search Utility (DSU)
  • Telnet Console

Management

  • ARP
  • DHCP Client
  • DNS
  • HTTP
  • HTTPS
  • SMTP
  • SNMP Trap
  • SNMPv1/v2c/v3
  • TCP/IP
  • Telnet
  • SSH
  • UDP
  • NTP Client

MIB

  • RFC1213, RFC1317

Time Management

  • NTP Client

Authentication

  • Local database

Encryption

  • HTTPS
  • AES-128
  • AES-256
  • SHA-256

Security Protocols

  • SNMPv3
  • SNMPv2c Trap
  • HTTPS (TLS 1.3)

Console Port

  • RS-232 (TxD, RxD, GND), 8-pin RJ45 (115200, n, 8, 1)

No. of Ports

  • 1

Connector

  • DB9 male

Serial Standards

  • RS-232/422/485

Baudrate

  • 50 bps to 921.6 kbps

Data Bits

  • 7, 8

Parity

  • Even
  • Mark
  • None
  • Odd
  • Space

Stop Bits

  • 1, 2

Flow Control

  • RTS Toggle (RS-232 only)
  • RTS/CTS

RS-485 Data Direction Control

  • Automatic Data Direction Control (ADDC)

Pull High/Low Resistor for RS-485

  • 1 kilo-ohm, 150 kilo-ohms

Terminator for RS-485

  • 120 ohms

Isolation

  • 2 kV (built-in)

RS-232

  • TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND

RS-422

  • Tx+, Tx-, Rx+, Rx-, GND

RS-485-2w

  • Data+, Data-, GND

RS-485-4w

  • Tx+, Tx-, Rx+, Rx-, GND

Industrial Protocols

  • Modbus RTU/ASCII Master
  • Modbus RTU/ASCII Slave
  • IEC 60870-5-101 Master (Balanced/Unbalanced)
  • IEC 60870-5-101 Slave (Balanced/Unbalanced)

Configuration Options

  • Serial Console

Mode

  • Master, Slave

Functions Supported

  • 1, 2, 3, 4, 5, 6, 15, 16, 23

Max. No. of Commands

  • 128

Mode

  • Client (Master), Server (Slave)

Functions Supported

  • 1, 2, 3, 4, 5, 6, 15, 16, 23

Max. No. of Client Connections

  • 32

Max. No. of Server Connections

  • 32

Max. No. of Commands

  • 128

Mode

  • Client
  • Server

Max. No. of Client Connections

  • 32

Max. No. of Server Connections

  • 32

Max. No. of Information Objects

  • 2000 points

Mode

  • Master (Balanced/Unbalanced)
  • Slave (Balanced/Unbalanced)

Max. No. of Master Connections

  • 1

Max. No. of Slave Connections

  • 1 (Balanced), 31 (Unbalanced)

Max. No. of Information Objects

  • 2000 points

microSD Slot

  • Up to 32 GB (SD 2.0 compatible)

Input Voltage

  • 12 to 48 VDC

Input Current

  • 455 mA @ 12 VDC

Power Connector

  • Screw-fastened Euroblock terminal

Contact Current Rating

  • Resistive load: 2 A @ 30 VDC

Housing

  • Metal

IP Rating

  • IP30

Dimensions

  • 36 x 105 x 140 mm (1.42 x 4.14 x 5.51 in)

Weight

  • 507 g (1.12 lb)

Operating Temperature

  • MGate 5114: 0 to 60°C (32 to 140°F)
  • MGate 5114-T: -40 to 75°C (-40 to 167°F)

Storage Temperature (package included)

  • -40 to 85°C (-40 to 185°F)

Ambient Relative Humidity

  • 5 to 95% (non-condensing)

EMC

  • EN 55032/35

EMI

  • CISPR 32, FCC Part 15B Class B

EMS

  • IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV
  • IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m
  • IEC 61000-4-4 EFT: Power: 4 kV; Signal: 2 kV
  • IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV
  • IEC 61000-4-6 CS: 150 kHz to 80 MHz: 10 V/m; Signal: 10 V/m
  • IEC 61000-4-8 PFMF

Safety

  • EN 62368-1
  • UL 508

Hazardous Locations

  • ATEX
  • Class I Division 2
  • IECEx

Freefall

  • IEC 60068-2-32

Shock

  • IEC 60068-2-27

Vibration

  • IEC 60068-2-6
  • IEC 60068-2-64

Time

  • 1,140,815 hrs

Standards

  • Telcordia SR332

Warranty Period

  • 5 years
