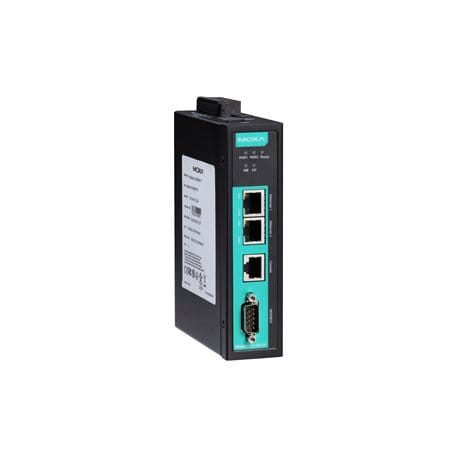

MGate 5105-MB-EIP Series

1-port MQTT-supported Modbus RTU/ASCII/TCP-to-EtherNet/IP gateways

Features and Benefits

  • Connects fieldbus data to cloud through generic MQTT
  • Supports MQTT connection with built-in device SDKs to Azure/Alibaba Cloud
  • Protocol conversion between Modbus and EtherNet/IP
  • Supports EtherNet/IP Scanner/Adapter
  • Supports Modbus RTU/ASCII/TCP master/client and slave/server
  • Supports MQTT connection with TLS and certificate in JSON and Raw data format
  • Embedded traffic monitoring/diagnostic information for easy troubleshooting and cloud data transmission for cost evaluation and analysis
  • microSD card for configuration backup/duplication and event logs, and data buffering when cloud connection is lost
  • -40 to 75°C wide operating temperature models available
  • Serial port with 2 kV isolation protection
  • Security features based on IEC 62443

Available to Order
WhatsApp Us
Get Quote Get Quote
Download Datasheet Download Datasheet

Models

  • MGate 5105-MB-EIP
  • MGate 5105-MB-EIP-T

Overview

How to Buy

Click “WhatsApp Us” or “Get a Quote” above to buy MGate 5105-MB-EIP Series from APulsar Technologies, MOXA official distributor.

Purchase walk-in from our office in Petaling Jaya, or order online and enjoy fast delivery across Kuala Lumpur and the entire Malaysia.

Introduction

The MGate 5105-MB-EIP is an industrial Ethernet gateway for Modbus RTU/ASCII/TCP and EtherNet/IP network communications with IIoT applications, based on MQTT or third-party cloud services, such as Azure and Alibaba Cloud. To integrate existing Modbus devices onto an EtherNet/IP network, use the MGate 5105-MB-EIP as a Modbus master or slave to collect data and exchange data with EtherNet/IP devices. The latest exchange data will be stored in the gateway as well. The gateway converts stored Modbus data into EtherNet/IP packets so the EtherNet/IP scanner can control or monitor Modbus devices. The MQTT standard with supported cloud solutions on the MGate 5105-MB-EIP leverages advanced security, configuration, and diagnostics to troubleshoot technologies to deliver scalable and extensible solutions that are suitable for remote monitoring applications such as energy management and assets management.

Configuration Backup via microSD Card

  • The MGate 5105-MB-EIP is equipped with a microSD card slot. A microSD card can be used to back up both the system configuration and system log, and can be used to conveniently copy the same configuration to several MGate 5105-MP-EIP units. The configuration file stored in the microSD card will be copied to the MGate itself when the system is rebooted.

Effortless Configuration and Troubleshooting via Web Console

  • The MGate 5105-MB-EIP also provides a web console to make configuration easy without having to install an extra utility. Simply log in as an administrator to access all settings, or as a general user with read-only permission. Besides configuring basic protocol settings, you can use the web console to monitor I/O data values and transfers. In particular, I/O Data Mapping shows data addresses for both protocols in the gateway’s memory, and I/O Data View allows you to track data values for online nodes. Moreover, diagnostics and communication analysis for each protocol can also provide helpful information for troubleshooting.

Redundant Power Inputs

  • The MGate 5105-MB-EIP has dual power inputs for greater reliability. The power inputs allow simultaneous connection to 2 live DC power sources, so that continuous operation is provided even if one power source fails. The higher level of reliability makes these advanced Modbus-to-EtherNet/IP gateways ideal for demanding industrial applications.

Specifications

Ethernet Interface

10/100BaseT(X) Ports (RJ45 connector)

  • 2
  • Auto MDI/MDI-X connection

Magnetic Isolation Protection

  • 1.5 kV (built-in)

Industrial Protocols

  • Modbus TCP Client (Master)
  • Modbus TCP Server (Slave)
  • EtherNet/IP Scanner
  • EtherNet/IP Adapter
  • MQTT

Configuration Options

  • Web Console (HTTP/HTTPS)
  • Device Search Utility (DSU)
  • MGate Manager
  • Telnet Console

Management

  • ARP
  • DHCP Client
  • DNS
  • HTTP
  • HTTPS
  • SMTP
  • SNMP Trap
  • SNMPv1/v2c/v3
  • TCP/IP
  • Telnet
  • SSH
  • UDP
  • NTP Client

MIB

  • RFC1213, RFC1317

Time Management

  • NTP Client

Authentication

  • Local database

Encryption

  • HTTPS
  • AES-128
  • AES-256
  • SHA-256

Security Protocols

  • SNMPv3
  • SNMPv2c Trap
  • HTTPS (TLS 1.3)

Console Port

  • RS-232 (TxD, RxD, GND), 8-pin RJ45 (115200, n, 8, 1)

No. of Ports

  • 1

Connector

  • DB9 male

Serial Standards

  • RS-232/422/485

Baudrate

  • 50 bps to 921.6 kbps

Data Bits

  • 7, 8

Parity

  • None
  • Even
  • Odd
  • Space
  • Mark

Stop Bits

  • 1, 2

Flow Control

  • RTS Toggle (RS-232 only)
  • RTS/CTS

RS-485 Data Direction Control

  • Automatic Data Direction Control (ADDC)

Pull High/Low Resistor for RS-485

  • 1 kilo-ohm, 150 kilo-ohms

Terminator for RS-485

  • 120 ohms

Isolation

  • 2 kV (built-in)

RS-232

  • TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND

RS-422

  • Tx+, Tx-, Rx+, Rx-, GND

RS-485-2w

  • Data+, Data-, GND

RS-485-4w

  • Tx+, Tx-, Rx+, Rx-, GND

Configuration Options

  • Serial Console

Industrial Protocols

  • Modbus RTU/ASCII Master
  • Modbus RTU/ASCII Slave

Mode

  • Master, Slave

Functions Supported

  • 1, 2, 3, 4, 5, 6, 15, 16, 23

Max. No. of Commands

  • 100

Input Data Size

  • 2048 bytes

Output Data Size

  • 2048 bytes

Mode

  • Client (Master), Server (Slave)

Functions Supported

  • 1, 2, 3, 4, 5, 6, 15, 16, 23

Max. No. of Client Connections

  • 16

Max. No. of Server Connections

  • 32

Max. No. of Commands

  • 100

Input Data Size

  • 2048 bytes

Output Data Size

  • 2048 bytes

Mode

  • Scanner, Adapter

CIP Objects Supported

  • Identity
  • Message Router
  • Assembly
  • Connection Manager
  • TCP/IP interface
  • Ethernet link
  • Port

Max. No. of Scanner Connections

  • 16 (for read-only), 1 (for read/write)

Max. No. of Adapter Connections

  • 100

Input Data Size

  • 496 bytes

Output Data Size

  • 496 bytes

Mode

  • Publisher/Subscriber of MQTT
  • Azure IoT Hub Device
  • Alibaba IoT Platform Device

Version Supported

  • v3.1.1

QoS Level

  • QoS 0,1,2

Secure Transmission

  • TLS (1.0, 1.1, 1.2) encryption with user’s root CA
  • Client certificate
  • Private key

Max. No. of Data Tag

  • 300 data tags

Max. No. of Message

  • 20 messages

MQTT General Features

  • Keep Alive
  • Retain Message
  • Last Will Message
  • Clean Session

microSD Slot

  • Up to 32 GB (SD 2.0 compatible; Data buffering up to 2 GB)

Input Voltage

  • 12 to 48 VDC

Input Current

  • 455 mA @ 12 VDC

Power Connector

  • Screw-fastened Euroblock terminal

Contact Current Rating

  • Resistive load: 2 A @ 30 VDC

Housing

  • Metal

IP Rating

  • IP30

Dimensions

  • 36 x 105 x 140 mm (1.42 x 4.14 x 5.51 in)

Weight

  • 507 g (1.12 lb)

Operating Temperature

  • MGate 5105-MB-EIP: 0 to 60°C (32 to 140°F)
  • MGate 5105-MB-EIP-T: -40 to 75°C (-40 to 167°F)

Storage Temperature (package included)

  • -40 to 85°C (-40 to 185°F)

Ambient Relative Humidity

  • 5 to 95% (non-condensing)

EMC

  • EN 55032/35

EMI

  • CISPR 32, FCC Part 15B Class B

EMS

  • IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV
  • IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m
  • IEC 61000-4-4 EFT: Power: 4 kV; Signal: 2 kV
  • IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV
  • IEC 61000-4-6 CS: 150 kHz to 80 MHz: 10 V/m; Signal: 10 V/m
  • IEC 61000-4-8 PFMF

Safety

  • EN 62368-1
  • UL 508

Hazardous Locations

  • ATEX
  • Class I Division 2
  • IECEx

Freefall

  • IEC 60068-2-32

Shock

  • IEC 60068-2-27

Vibration

  • IEC 60068-2-6
  • IEC 60068-2-64

Time

  • 859,422 hrs

Standards

  • Telcordia SR332

Warranty Period

  • 5 years
