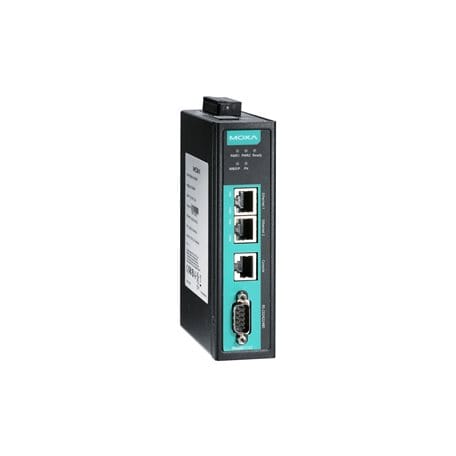

MGate 5103 Series

1-port Modbus RTU/ASCII/TCP/EtherNet/IP-to-PROFINET gateways

Features and Benefits

  • Converts Modbus, or EtherNet/IP to PROFINET
  • Supports PROFINET IO device
  • Supports Modbus RTU/ASCII/TCP master/client and slave/server
  • Supports EtherNet/IP Adapter
  • Effortless configuration via web-based wizard
  • Built-in Ethernet cascading for easy wiring
  • Embedded traffic monitoring/diagnostic information for easy troubleshooting
  • microSD card for configuration backup/duplication and event logs
  • Status monitoring and fault protection for easy maintenance
  • Serial port with 2 kV isolation protection
  • -40 to 75°C wide operating temperature models available
  • Supports redundant dual DC power inputs and 1 relay output
  • Security features based on IEC 62443

Available to Order
WhatsApp Us
Get Quote Get Quote
Download Datasheet Download Datasheet

Models

  • MGate 5103-T
  • MGate 5103

Overview

How to Buy

Click “WhatsApp Us” or “Get a Quote” above to buy MGate 5103 from APulsar Technologies, MOXA official distributor.

Purchase walk-in from our office in Petaling Jaya, or order online and enjoy fast delivery across Kuala Lumpur and the entire Malaysia.

Introduction

The MGate 5103 is an industrial Ethernet gateway for converting Modbus RTU/ASCII/TCP or EtherNet/IP to PROFINET-based network communications. To integrate existing Modbus devices onto a PROFINET network, use the MGate 5103 as a Modbus master/slave or EtherNet/IP adapter to collect data and exchange data with PROFINET devices. The latest exchange data will be stored in the gateway. The gateway will convert stored Modbus or EtherNet/IP data into PROFINET packets so the PROFINET IO Controller can control or monitor field devices.

Easy Configuration via Web Console

  • The MGate 5103 Series comes with an illustrated Quick Setup guide designed to make configuration easy. With Quick Setup, you can easily access protocol conversion modes and finish the configuration in a few steps. The MGate 5103 Series also supports a GSDML export function. GSDML files can be imported into PROFINET PLCs to save time on PLC configuration.

Modbus RTU/ASCII/TCP Protocol Traffic Monitor

  • MGate 5103 gateways support Modbus RTU/ASCII/TCP Protocol Traffic Monitor for easy troubleshooting, especially during the installation stage. Communication issues could be caused by incorrect software parameters, such as slave IDs and register addresses, that were entered incorrectly, or an incorrect command configuration. With Modbus RTU/ASCII/TCP Protocol Traffic Monitor, you can check the captured data and easily identify the root cause.

Maintenance Functions

  • MGate 5103 gateways support a system log function that records events in the MGate; users can easily review log data remotely through the web console. The gateways also support status monitoring and fault protection functions. The status monitoring function notifies a PLC/DCS/SCADA system when a Modbus device gets disconnected or does not respond, in which case the process PLC/DCS gets the status of each end device and then issues alarms to notify operators.

Specifications

Ethernet Interface

10/100BaseT(X) Ports (RJ45 connector)

  • 2
  • Auto MDI/MDI-X connection

Magnetic Isolation Protection

  • 1.5 kV (built-in)

Industrial Protocols

  • PROFINET IO Device
  • Modbus TCP Client (Master)
  • Modbus TCP Server (Slave)
  • EtherNet/IP Adapter

Configuration Options

  • Web Console (HTTP/HTTPS)
  • Device Search Utility (DSU)
  • Telnet Console

Management

  • ARP
  • DHCP Client
  • DNS
  • HTTP
  • HTTPS
  • SMTP
  • SNMP Trap
  • SNMPv1/v2c/v3
  • TCP/IP
  • Telnet
  • SSH
  • UDP
  • NTP Client

MIB

  • RFC1213, RFC1317

Time Management

  • NTP Client

Authentication

  • Local database

Encryption

  • HTTPS
  • AES-128
  • AES-256
  • SHA-256

Security Protocols

  • SNMPv3
  • SNMPv2c Trap
  • HTTPS (TLS 1.3)

Console Port

  • RS-232 (TxD, RxD, GND), 8-pin RJ45 (115200, n, 8, 1)

No. of Ports

  • 1

Connector

  • DB9 male

Serial Standards

  • RS-232/422/485

Baudrate

  • 50 bps to 921.6 kbps

Data Bits

  • 7, 8

Parity

  • None
  • Even
  • Odd
  • Space
  • Mark

Stop Bits

  • 1, 2

Flow Control

  • RTS Toggle (RS-232 only)
  • RTS/CTS

RS-485 Data Direction Control

  • Automatic Data Direction Control (ADDC)

Pull High/Low Resistor for RS-485

  • 1 kilo-ohm, 150 kilo-ohms

Terminator for RS-485

  • 120 ohms

Isolation

  • 2 kV (built-in)

RS-232

  • TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND

RS-422

  • Tx+, Tx-, Rx+, Rx-, GND

RS-485-2w

  • Data+, Data-, GND

RS-485-4w

  • Tx+, Tx-, Rx+, Rx-, GND

Configuration Options

  • Serial Console

Industrial Protocols

  • Modbus RTU/ASCII Master
  • Modbus RTU/ASCII Slave

Mode

  • Master, Slave

Functions Supported

  • 1, 2, 3, 4, 5, 6, 15, 16, 23

Max. No. of Commands

  • 128

Input Data Size

  • 512 bytes

Output Data Size

  • 512 bytes

Mode

  • Client (Master), Server (Slave)

Functions Supported

  • 1, 2, 3, 4, 5, 6, 15, 16, 23

Max. No. of Client Connections

  • 16

Max. No. of Server Connections

  • 32

Max. No. of Commands

  • 128

Input Data Size

  • 512 bytes

Output Data Size

  • 512 bytes

Mode

  • IO Device

Max. No. of IO Controller Connections

  • 1 (for read/write)

Input Data Size

  • 512 bytes

Output Data Size

  • 512 bytes

Mode

  • Adapter

CIP Objects Supported

  • Identity
  • Message Router
  • Assembly
  • Connection Manager
  • TCP/IP interface
  • Ethernet link
  • Port

Max. No. of Scanner Connections

  • 1 (for read-only), 1 (for read/write)

Input Data Size

  • 496 bytes

Output Data Size

  • 496 bytes

microSD Slot

  • Up to 32 GB (SD 2.0 compatible)

Input Voltage

  • 12 to 48 VDC

Input Current

  • 455 mA @ 12 VDC

Power Connector

  • Screw-fastened Euroblock terminal

Contact Current Rating

  • Resistive load: 2 A @ 30 VDC

Housing

  • Metal

IP Rating

  • IP30

Dimensions

  • 36 x 105 x 140 mm (1.42 x 4.14 x 5.51 in)

Weight

  • 507 g (1.12 lb)

Operating Temperature

  • MGate 5103: 0 to 60°C (32 to 140°F)
  • MGate 5103-T: -40 to 75°C (-40 to 167°F)

Storage Temperature (package included)

  • -40 to 85°C (-40 to 185°F)

Ambient Relative Humidity

  • 5 to 95% (non-condensing)

EMC

  • EN 55032/35

EMI

  • CISPR 32, FCC Part 15B Class B

EMS

  • IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV
  • IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m
  • IEC 61000-4-4 EFT: Power: 4 kV; Signal: 2 kV
  • IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV
  • IEC 61000-4-6 CS: 150 kHz to 80 MHz: 10 V/m; Signal: 10 V/m
  • IEC 61000-4-8 PFMF

Safety

  • EN 62368-1
  • UL 508

Hazardous Locations

  • ATEX
  • Class I Division 2
  • IECEx

Freefall

  • IEC 60068-2-32

Shock

  • IEC 60068-2-27

Vibration

  • IEC 60068-2-6
  • IEC 60068-2-64

Time

  • 859,422 hrs

Standards

  • Telcordia SR332

Warranty Period

  • 5 years
