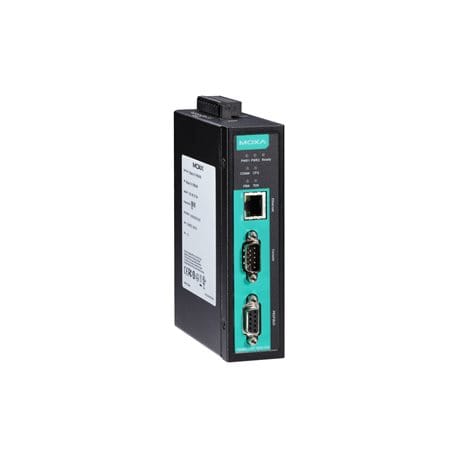

MGate 5101-PBM-MN Series

1-port PROFIBUS-to-Modbus TCP gateways

Features and Benefits

  • Protocol conversion between PROFIBUS and Modbus TCP
  • Supports PROFIBUS DP V1 master
  • Supports Modbus TCP client/server
  • Automatic scan of PROFIBUS devices and easy configuration
  • Web-based GUI for I/O data visualization
  • Embedded traffic monitoring/diagnostic information for easy troubleshooting
  • Status monitoring and fault protection for easy maintenance
  • Supports redundant dual DC power inputs and 1 relay output
  • -40 to 75°C wide operating temperature models available
  • Serial port with 2 kV isolation protection
  • Security features based on IEC 62443

Available to Order
WhatsApp Us
Get Quote Get Quote
Download Datasheet Download Datasheet

Models

  • MGate 5101-PBM-MN-T
  • MGate 5101-PBM-MN

Overview

How to Buy

Click “WhatsApp Us” or “Get a Quote” above to buy MGate 5101-PBM-MN Series from APulsar Technologies, MOXA official distributor.

Purchase walk-in from our office in Petaling Jaya, or order online and enjoy fast delivery across Kuala Lumpur and the entire Malaysia.

Introduction

The MGate 5101-PBM-MN gateway provides a communication portal between PROFIBUS devices (e.g. PROFIBUS drives or instruments) and Modbus TCP hosts. All models are protected with a rugged metallic casing, DIN-rail mountable, and offer optional built-in optical isolation. The PROFIBUS and Ethernet status LED indicators are provided for easy maintenance. The rugged design is suitable for industrial applications such as oil/gas, power, process automation, and factory automation.

Windows Utility for Easy Configuration and Traffic Monitoring

  • The MGate Manager utility provides a user-friendly interface to make configuration and operation as easy as possible. Moxa’s innovative AutoScan function can automatically detect all connected PROFIBUS slave devices and their available I/O modules to quickly complete gateway configuration, after which an easy-to-read data mapping table is created to assist in the configuration of Modbus TCP master (e.g., SCADA, PLC) settings. In addition, users can configure import/export maintenance functions, and use embedded monitoring tools to maintain logs of Modbus communication packets, which can be used for troubleshooting.

A Variety of Maintenance Functions

  • The MGate 5101-PBM-MN provides a Web console and Telnet console for remote maintenance, with both consoles supporting encryption commutation functions such as HTTPS and SSH for preventing unauthorized access. The log functions are provided in firmware such as connection event of Modbus or PROFIBUS for maintenance. Users can monitor each I/O data and review the log through the web console remotely. A relay output alarm is provided for the power input status. It gives maintenance engineers an additional tool for troubleshooting and maintenance.

Redundant Power Inputs

  • The MGate 5101-PBM-MN has dual power inputs for greater reliability. The power inputs allow simultaneous connection to 2 live DC power sources to provide uninterrupted operation even if one power source fails. The higher level of reliability makes these advanced PROFIBUS-master-to-Modbus-TCP gateways ideal for demanding industrial applications.

Specifications

Ethernet Interface

10/100BaseT(X) Ports (RJ45 connector)

  • 1 (auto MDI/MDI-X connection)

Magnetic Isolation Protection

  • 1.5 kV (built-in)

Industrial Protocols

  • Modbus TCP Client (Master)
  • Modbus TCP Server (Slave)

Configuration Options

  • Web Console (HTTP/HTTPS)
  • Device Search Utility (DSU)
  • MGate Manager
  • Telnet Console

Management

  • ARP
  • DHCP Client
  • DNS
  • HTTP
  • HTTPS
  • SMTP
  • SNMP Trap
  • SNMPv1/v2c/v3
  • TCP/IP
  • Telnet
  • SSH
  • UDP
  • NTP Client

MIB

  • RFC1213, RFC1317

Time Management

  • NTP Client

Authentication

  • Local database

Encryption

  • HTTPS
  • AES-128
  • AES-256
  • SHA-256

Security Protocols

  • SNMPv3
  • SNMPv2c Trap
  • HTTPS (TLS 1.3)

Console Port

  • RS-232 (TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND), DB9 male (115200, n, 8, 1)

Configuration Options

  • Serial Console

Industrial Protocols

  • PROFIBUS DP-V1 Master

Mode

  • Client (Master), Server (Slave)

Functions Supported

  • 1, 2, 3, 4, 5, 6, 15, 16, 23

Max. No. of Client Connections

  • 16

Max. No. of Server Connections

  • 32

Max. No. of Commands

  • 100

Input Data Size

  • 1536 bytes

Output Data Size

  • 1536 bytes

Industrial Protocols

  • PROFIBUS DP

No. of Ports

  • 1

Connector

  • DB9 female

Signals

  • PROFIBUS D+, PROFIBUS D-, RTS, Signal Common, 5V

Baudrate

  • 9600 bps to 12 Mbps

Isolation

  • 2 kV (built-in)

Mode

  • DP-V1 Master

Input Data Size

  • 1536 bytes

Output Data Size

  • 1536 bytes

Input Voltage

  • 12 to 48 VDC

Input Current

  • 365 mA @ 12 VDC

Power Connector

  • Screw-fastened Euroblock terminal

Contact Current Rating

  • Resistive load: 2 A @ 30 VDC

Housing

  • Metal

IP Rating

  • IP30

Dimensions

  • 36 x 105 x 140 mm (1.42 x 4.14 x 5.51 in)

Weight

  • 500 g (1.10 lb)

Operating Temperature

  • MGate 5101-PBM-MN: 0 to 60°C (32 to 140°F)
  • MGate 5101-PBM-MN-T: -40 to 75°C (-40 to 167°F)

Storage Temperature (package included)

  • -40 to 85°C (-40 to 185°F)

Ambient Relative Humidity

  • 5 to 95% (non-condensing)

EMC

  • EN 55032/35

EMI

  • CISPR 32, FCC Part 15B Class A

EMS

  • IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
  • IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m
  • IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV
  • IEC 61000-4-5 Surge: Power: 2 kV
  • IEC 61000-4-6 CS: 150 kHz to 80 MHz: 10 V/m; Signal: 10 V/m
  • IEC 61000-4-8 PFMF

Safety

  • IEC 60950-1
  • UL 60950-1
  • EN 62368-1

Hazardous Locations

  • ATEX
  • Class I Division 2
  • IECEx

Freefall

  • IEC 60068-2-32

Shock

  • IEC 60068-2-27

Vibration

  • IEC 60068-2-6
  • IEC 60068-2-64

Time

  • 1,082,881 hrs

Standards

  • Telcordia SR332

Warranty Period

  • 5 years
