W27IAD7T-POA1

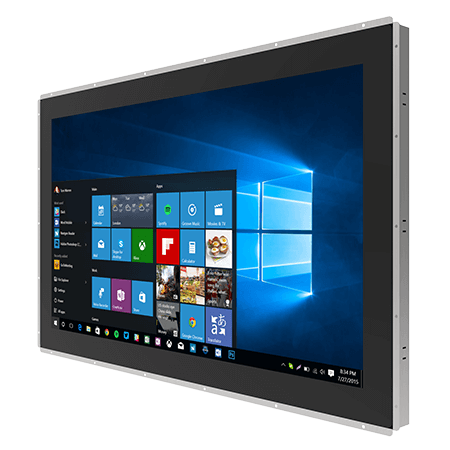

Winmate 27-inch PO series HMI panel PC W27IAD7T-POA1. The W27IAD7T-POA1 ships with an Intel® Core™ Alder Lake S Socket LGA 1700 i9 / i7/ i5 / i3 to deliver a low power consuming result with no compromise on efficiency.

Features and Benefits

  • 12th Gen Intel® Core™ Alder Lake S Socket LGA 1700 i9 / i7/ i5 / i3 processor
  • 1920 x 1080 resolution
  • Projected capacitive multi-touch screen
  • Multi display supports HDMI / LVDS / eDP panel interface
  • Multiple I/Os, 2 x Serial Ports, 4 x USB 3.2 Gen2x1 Ports
  • Front IP65 water and dust proof
  • 12V single voltage power input
FCCCE

Available to Order
WhatsApp Us
Get Quote Get Quote
Download Datasheet Download Datasheet

Models

  • W27IAD7T-POA1

Overview

How to Buy

Click “WhatsApp Us” or “Get a Quote” above to buy W27IAD7T-POA1 from APulsar Technologies, WINMATE official partner.

Winmate PO Series HMI offers a versatile solution for industrial automation and kiosk applications, with sizes ranging from 7″ to 27″. Featuring Intel® processors, a slim-line open-frame design, and a flat multi-touch PCAP display, it delivers sleek aesthetics and advanced functionality. With certifications for rugged environments and options like dual Gigabit Ethernet and IP65-rated front protection, this HMI is ideal for interactive kiosks, process control, and smart manufacturing, ensuring reliable performance and seamless integration.

Introduction

Multi-Display Support

Equipped with HDMI, LVDS, and eDP panel interfaces, the HMI Panel PC supports multiple display options to meet diverse industrial requirements. This versatility allows users to connect the device to various peripherals, such as external monitors or projectors, enhancing visualization and system monitoring capabilities.

Multiple I/O Ports

Understanding the importance of seamless connectivity, the PO Series HMI Panel PC features a range of I/O ports, including 2 Serial Ports for communication with legacy industrial equipment. Additionally, it offers 4 USB 3.2 Gen 2×1 Ports for fast data transfer rates with external devices, such as USB drives and peripherals.

12V Single Voltage Power Input

The PO Series HMI Panel PC is designed for power efficiency and flexibility, accommodating a 12V single voltage power input. This feature allows for seamless integration into various power systems, making it an ideal choice for diverse industrial setups.

Specifications

Display

Resolution

  • 1920×1080

Size

  • 27.0 inches

Contrast Ratio

  • 3000:1

Panel Brightness

  • 300.0 nits

View Angles

  • 89,89,89,89

Active Area

  • 597.6×336.15 mm

Touch / Glass

  • Projected Capacitive Multi Touch Screen

WLAN

  • Support (Optional)

BT

  • Support (Optional)

Processor

  • Intel® Core™ i3-12100TE(up to 4.00GHz) (Default)
  • Intel® Core™ i5-12500TE(up to 4.3GHz) (Optional)
  • Intel® Core™ i7-12700TE(up to 4.6GHz) (Optional)
  • Intel® Core™ i9-12900TE(up to 4.80GHz) (Optional)
  • Intel® Core™ i3-14100T(up to 4.4GHz) (Optional)
  • Intel® Core™ i5-14500T(up to 4.8GHz) (Optional)
  • Intel® Core™ i7-14700T(up to 5.2GHz) (Optional)
  • Intel® Core™ i9-14900T(up to 5.5GHz) (Optional)

Chipset

  • Intel® R680E

Memory

  • 2 x SO-DIMM, DDR5 4800 MHz, 8GB (Default)
  • 16GB (Optional)
  • 32GB (Optional)
  • 64GB (Optional)

Storage

  • 1 x M.2 2280 M-Key NVMe SSD 256GB (Default)
  • 512GB (Optional)
  • 1TB (Optional)
  • 2TB (Optional)
  • 2 x SATA III for 2.5″ SSD/HDD (Optional)

Ethernet controller

  • 2 x Intel® Ethernet Controller

Security

  • TPM 2.0

Operating System

  • Windows 11 IoT Enterprise (64 bit) (Optional)
  • Windows 11 Pro 64 bit (Optional)
  • Linux Ubuntu 22.04(Do not support Wake on Touch) (Optional)

Dimension

  • 685.4 x 423.4 x 84.2 mm

Weight

  • 11.3 kg

Mounting

  • VESA mount

Enclosure

  • Metal Housing

Cooling System

  • Fan Design

Operating Humidity

  • 10% to 90% RH, Non-Condensing

Operating Temperature

  • 0°C to 50°C

Storage Temperature

  • -10°C to 60°C

Certification

  • CE, FCC

Power Input

  • 1 x 12V DC, Din4 pin connector

USB Port

  • 4 x USB 3.2 Gen2x1 (10Gbps, TypeA)

Serial Port

  • 1 x RS232/422/485 (Default RS232)
  • 1 x RS232

Video

  • 1 x DP1.4a DP++ , Max resolution up to
  • 4096×2160@60Hz (Default)
  • 1 x HDMI 2.0b , Max resolution up to
  • 4096×2160@60Hz (Optional)

Audio

  • Mic in
  • Line out

Expansion Port

  • 1 x M.2 2280 M-Key Slot (for NVME SSD)
  • 1 x M.2 2230 E-Key Slot (for Wi-Fi module)

LAN

  • 2 x 2.5 Giga LAN RJ45 Connector

Button

  • 1 x Power Button
  • 1 x Reset Button

Accessory

  • 100~240V AC to DC Adapter
  • Power Cord
  • VESA screws

Power Rating

  • 12V DC

Adapter

  • 12V 220W
