W24L100-MRA1FP

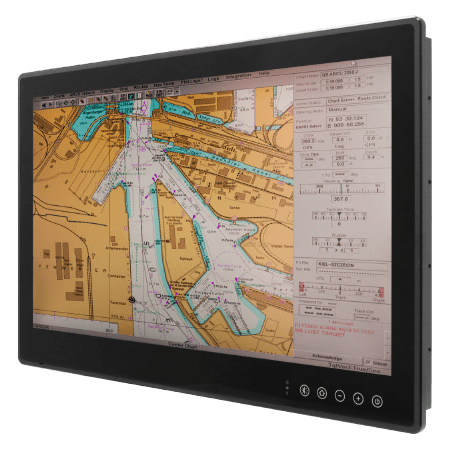

24inch ECDIS Marine Display Meet the requirements of industrial marine standards, including IEC60945 4th Edition, DNVGL-CG-0339, IACS E10

Features and Benefits

  • 24″ 1920 x 1080 resolution with projective capacitive multi-touch screen, ECDIS Marine Display
  • Edge-to-edge narrow bezel design and fanless cooling system
  • Color calibrated for ECDIS compliance (Optional)
  • Capacitive touch keys for quick function access and display control (Support ECDIS DAY, DUSK, and NIGHT mode switching)
  • Meet the requirements of industrial marine standards, including IEC60945 4th Edition, DNVGL-CG-0339, IACS E10

IACS-E10IEC60945DNVGL-CG-0339FCCCE

Available to Order
WhatsApp Us
Get Quote Get Quote
Download Datasheet Download Datasheet

Models

  • W24L100-MRA1FP

Overview

How to Buy

Click “WhatsApp Us” or “Get a Quote” above to buy W24L100-MRA1FP from APulsar Technologies, WINMATE official partner.

Winmate ECDIS Marine Display Series delivers advanced solutions tailored for marine applications, available in sizes from 15″ to 32″. Designed with edge-to-edge narrow bezels and a fanless cooling system, these displays provide a sleek and reliable performance. Featuring capacitive touch keys and support for ECDIS-compliant DAY, DUSK, and NIGHT modes, they ensure optimal visibility in varying lighting conditions. Certified with IEC 60945 4th Edition, DNV-CG-0339, and IACS E10 standards, the series offers rugged durability, optional color calibration, and multi-touch capabilities, making it ideal for navigation and marine control systems.

Specifications

Display

Resolution

  • 1920×1080

Size

  • 24.0 inches

Contrast Ratio

  • 5000:1

Panel Brightness

  • 300.0 nits

Display Color

  • 16.7M Colors

View Angles

  • 89,89,89,89

Active Area

  • 531.36×298.89 mm

Touch / Glass

  • Projected Capacitive Multi Touch Screen (AR Coating) (Default)
  • AG film (Optional)
  • AR Glass (Optional)

Operating Humidity

  • 5% to 95%

Operating Temperature

  • -15~55°C

Shock

  • 15G,11ms duration

Vibration

  • 0.7g@DNV-CG-0339 (Class A)

IP rating

  • IP66 (Front Side)

Certification

  • CE, FCC
  • DNV-CG-0339, IEC60945 4th, IACS E10

USB Port

  • 1 x USB Type A

Serial Port

  • 1 x RS232 for remote control

Video

  • 1 x VGA
  • 1 x DVI-D
  • 1 x HDMI 1.4

Front Control

  • Power
  • Brightness+
  • Brightness-
  • OSD/ Enter
  • ECDIS Key/ ESC

Indicator

  • Day Mode
  • Dusk Mode
  • Night Mode

Buzzer

  • 75 dB~80 dB, 2300 Hz, 1m

Dimension

  • 595 x 385 x 63.8 mm

Weight

  • 10.3 kg

Mounting

  • VESA mount/Panel mount

Enclosure

  • Anodized Aluminum Bezel

Cooling System

  • Fanless Design

Cut out

  • 570 x 360 mm

Power Rating

  • 24V DC-in with Isolation (Approval by Certificate)
  • 9~36V DC Input Acceptable

Consumption

  • 45W (Typical)

Accessory

  • User Manual
  • Mounting clips x 12
  • AC to 12V DC Adapter
  • Power Cord
  • 3 Pin Terminal Block
  • Open Wire Cable
  • 1 x VGA cable
  • 1 x DVI cable
  • 1 x HDMI cable
  • 1 x RS232 cable
  • 1 x USB cable
