W22IE3S-PTA3

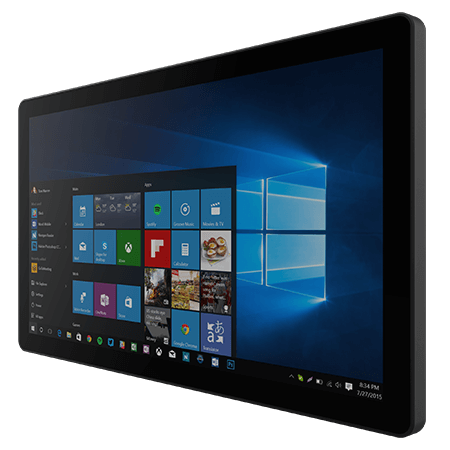

Winmate 21.5-inch PT series HMI panel pc W22IE3S-PTA3 features with fanless cooling system, front IP65 water and dust proof, Windows or Linux operating system.

Features and Benefits

  • Low power consumption with Intel® Celeron® Elkhart Lake N6211 processor
  • Fanless cooling system and ultra-low power consumption
  • Front IP65 for protection against water and dust
  • A true flat, easy-to-clean front surface with edge-to-edge design

FCCCE

Available to Order
Download Datasheet Download Datasheet

Models

  • W22IE3S-PTA3

Overview

How to Buy

Click “WhatsApp Us” or “Get a Quote” above to buy W22IE3S-PTA3 from APulsar Technologies, WINMATE official partner.

Winmate PT Series HMI offers a versatile solution for industrial automation, available in sizes from 15″ to 24″. Designed for various operating systems, it features low power consumption, a fanless cooling system, and supports Windows or Android OS. Its true-flat, edge-to-edge design ensures easy cleaning, while front IP65 protection safeguards against water and dust. With PCAP touchscreen options and multiple I/O ports, including LAN, USB, and CANBUS, the PT Series HMI is ideal for manufacturing, process control, and smart factory applications.



Introduction

Energy Efficient with Intel® Processor

Winmate Panel PCs adopt Intel® Processors to provide high computing performance with energy-efficient solutions. Top up with Windows IoT operating system, it offers easy software integration and opens vast possibilities for customization.

True Flat (Easy-to-clean)

Winmate signature true flat surface design offers a stylish, elegant, aesthetically pleasing look that fits modern interiors and exteriors. It is easy to maintain, clean, and reduce clogged dust on the edges.

Easy Mounting

PT-Series HMIs support universal mounting options, such as a VESA mount for a wall, desk, and in-vehicle installation. Suitable for most industrial scenarios.

P-Cap Touch (Resistant to scratches)

The glass cover provides excellent protection from scratches. P-Cap Touch supports multi-touch and can easily be controlled by fingers, improving the device’s convenience.

Front IP65 Waterproof and Dustproof

Winmate PT series HMI is sealed with IP65 on the front side to protect the device against possible damage from outer dust and water splash.

Specifications

Display

Resolution

  • 1920×1080

Size

  • 21.5 inches

Contrast Ratio

  • 3000:1

Panel Brightness

  • 250.0 nits

View Angles

  • 89,89,89,89

Active Area

  • 476.64×268.11 mm

Touch / Glass

  • Projected Capacitive Multi Touch Screen

WLAN

  • Support (Optional)

BT

  • Support (Optional)

Processor

  • Intel® Celeron® N6211 ( up to 3.0GHz) (Default)
  • Intel® Celeron® N6210 (up to 2.6GHz) (Optional)

Memory

  • 1 x SO-DIMM, DDR4 3200 MHz, 4GB (Default)
  • 8GB (Optional)
  • 16GB (Optional)

Storage

  • 1 x M.2 2242 B-key SSD 128GB (Default)
  • M.2 2242 B-key SSD up to 512GB (Optional)
  • 1 x SATA III for 2.5″ SSD/HDD up to 1TB (Optional)

Ethernet controller

  • 2 x Intel® Ethernet Controller

Security

  • TPM 2.0

Operating System

  • Windows 11 IoT Enterprise (64 bit) (Optional)
  • Windows 11 Pro 64 bit (Optional)
  • Windows 10 IoT Enterprise (64 bit) (Optional)
  • Linux Ubuntu 22.04 (Optional)

Operating Humidity

  • 10% to 90% RH, Non-Condensing

Operating Temperature

  • 0°C to 50°C

Storage Temperature

  • -10°C to 60°C

IP rating

  • Front IP65

Certification

  • CE, FCC

Dimension

  • 530 x 322 x 56 mm

Mounting

  • VESA Mount

Enclosure

  • Plastic

Cooling System

  • Fanless Design

USB Port

  • 2 x USB3.2 Gen1x1 (Type-A)

Serial Port

  • 1 x RS232(Default)/422/485

Video

  • 1 x HDMI 2.0 (Optional)

Audio

  • 2 x Speaker (Optional)

LAN

  • 2 x RJ45-10/100/1000 Mbps

Indicator

  • Power LED Indicator

Power Rating

  • 12V DC

Button

  • 1 x Power Button
  • 1 x Reset Button

Accessory

  • Quick Start Guide(Hardcopy)
  • AC Adapter 12V/50W
  • Power Cord
