R15L100-STC3

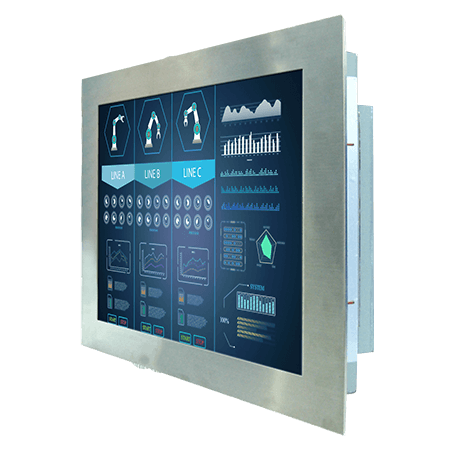

Winmate 15-inch stainless panel mount display R15L100-STC3 for food processing, beverage and chemical indsutry applications.

Features and Benefits

  • 15″, 1024 x 768
  • VGA and HDMI input
  • Panel mount
  • VESA mount

FCC CE

Available to Order
Download Datasheet Download Datasheet

Models

  • R15L100-STC3

Overview

How to Buy

Click “WhatsApp Us” or “Get a Quote” above to buy R15L100-STC3 from APulsar Technologies, WINMATE official partner.

Winmate Stainless Panel Mount Display Series combines durability with sleek functionality, making it ideal for industrial and commercial applications. Available in sizes from 15″ to 21.5″, these displays feature a robust stainless-steel design, VGA and HDMI inputs, and flexible panel or VESA mounting options. The true-flat design ensures easy cleaning, while the high-resolution screens deliver clear visuals for critical operations. Perfect for environments demanding reliability, hygiene, and precision, these displays seamlessly integrate into diverse industrial workflows.

Specifications

Display

Resolution

  • 1024×768

Size

  • 15 inches

Contrast Ratio

  • 2000:1

Panel Brightness

  • 300 nits

Display Color

  • 16.2M Colors

View Angles

  • 88,88,88,88

Active Area

  • 304.1×228.1 mm

Touch / Glass

  • Resistive Touch Screen (Optional)
  • Protection Glass Without Touch Function (Optional)

Dimension

  • 396 x 316 x 56.8 mm

Mounting

  • Panel mount
  • VESA Mount

Enclosure

  • Stainless front bezel

Cooling System

  • Fanless design

Operating Humidity

  • 10% to 90% RH, Non-Condensing

Operating Temperature

  • 0°C to 50°C

Storage Temperature

  • -10°C to 60°C

IP rating

  • Front IP65

Certification

  • CE, FCC

Power Input

  • 1 x 12V DC, 2.5φ DC jack

USB Port

  • 1x USB type-A for touch screen control (Optional)

Serial Port

  • 1 x RS232 D-sub9 for touch screen control (Optional)

Video

  • 1x VGA input (Default)
  • 1x HDMI input (Optional)
  • 1x DVI input (Optional)

Indicator

  • 1 x LED Indicator for power
  • 1 x LED Indicator for status

Accessory

  • 100~240V AC to DC Adapter
  • Power Cord
  • External USB Cable For Touchscreen Control
  • External VGA Cable
  • External HDMI Cable
  • VESA Screws

Optional Accessory

  • External DVI Cable (Optional)

Power Rating

  • 12V DC
