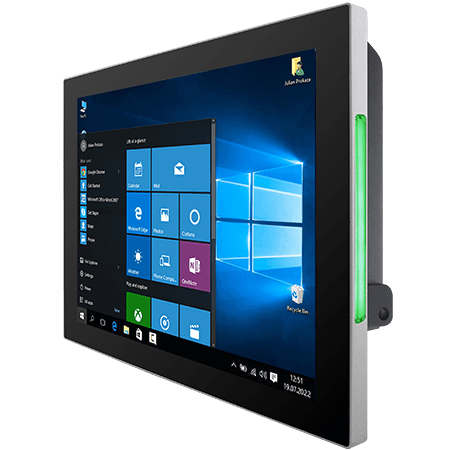

R15IE3S-PCC3AC-POE

Discover Winmate’s R15IE3S-PCC3AC-POE featuring a P-Cap touch, whisper-quiet fanless cooling, and IP65 water and dustproof certification.

Features and Benefits

  • 15” 1024×768 resolution 300nits Panel with PCAP multi-touch screen
  • Intel® Celeron® Elkhart Lake N6211 Processor
  • Fanless cooling system and ultra-low power consumption
  • Dual 2.5 Gigabit Ethernet
  • RGB LED Light Bars on 2 sides
  • Front IP65 water and dust proof
  • Optional 2 MP Front Camera
  • Optional HF RFID Reader
  • Support PoE function
  • Stylish design for room booking, access control and room information applications

FCCCE

Available to Order
WhatsApp Us
Get Quote Get Quote
Download Datasheet Download Datasheet

Models

  • R15IE3S-PCC3AC-POE

Overview

How to Buy

Click “WhatsApp Us” or “Get a Quote” above to buy R15IE3S-PCC3AC-POE from APulsar Technologies, WINMATE official partner.

Winmate S-Series HMI offers a stylish and versatile solution for modern automation and control applications. Available in sizes from 7″ to 15″, this wide rectangular Panel PC supports Power over Ethernet, multiple processors, and operating systems like Windows and Android. With optional HF RFID reader and built-in RGB LED light bar, it is perfect for room booking, access control, and room information systems. Designed with front IP65 water and dust resistance, it delivers durability and sleek aesthetics for industrial and commercial environments.



Introduction

Seamless Interaction with P-Cap Touch Screens

Winmate S-series with PCAP (Projected Capacitive) touchscreens seamlessly bridge the gap between human interaction and technology. With intuitive finger movements, users engage in a seamless 4-point multi-touch experience. The responsiveness, clarity, and durability empower us across various industries.

A Tranquil Work Environment with Fanless Design

Featuring fanless cooling technology, the Winmate S Series HMI utilizes heat sinks and vapor chambers instead of traditional fans to efficiently regulate temperatures while operating silently and conserving energy. Suited for panel PCs and industrial settings, it offers a harmonious balance between performance and quiet operation.

RGB LED Light Bar Indicator and Wireless Radio Frequency Identification Technologies

The Built-in RGB LED Light Bar Indicator seamlessly integrates into S series panel pc, providing both functional status updates and an appealing visual element. The settings are easily programmable according to your preferences. Choose one of the colors to send valuable messages based on your settings. Additionally, S series panel pc has HF RFID and NFC as well, it use radio frequency signals for communication and data transfer, each with specific advantages in different applications.

Protected Against Water and Dust (IP65)

The Winamte S Series HMI panel pc confidently faces water challenges. Its rugged design ensures it can withstand water splashes without missing a beat. Whether you are caught in a rainstorm or dealing with accidental spills, this tablet remains resilient and operational.

Wires That Do More (PoE)

Power over Ethernet (PoE) seamlessly combines power and data transmission via a single ethernet cable. It simplifies installations for devices like wireless access points and network cameras, enables remote placement in challenging environments, reduces costs, and integrates effortlessly with other PoE-enabled devices. This versatility makes PoE an efficient and practical choice for industrial applications.

Specifications

Display

Resolution

  • 1024×768

Size

  • 15.0 inches

Contrast Ratio

  • 2000:1

Panel Brightness

  • 300.0 nits

View Angles

  • 88,88,88,88

Active Area

  • 304.1×228.1 mm

Touch / Glass

  • Projected Capacitive Multi Touch Screen

WLAN

  • Support (Optional)

BT

  • Support (Optional)

RFID

  • HF RFID Reader 13.56 MHz (Optional)

Light Bar

  • Built-in RGB LED Status Light Bar, on both sides

Processor

  • Intel® Celeron® N6211 ( up to 3.0GHz)

Memory

  • 4GB(Default) (Default)
  • 8GB (Optional)
  • 16GB (Optional)

Storage

  • 128GB SSD(Default) (Default)
  • 256GB SSD (Optional)
  • 512GB SSD (Optional)
  • 1TB (Optional)
  • 2TB (Optional)

Ethernet controller

  • 2 x Intel® Ethernet Controller

Security

  • TPM 2.0

Operating System

  • Windows 11 IoT Enterprise (64 bit) (Optional)
  • Windows 11 Pro 64 bit (Optional)
  • Windows 10 IoT Enterprise (64 bit) (Optional)
  • Linux Ubuntu 22.04 (Optional)

Dimension

  • 363.4 x 277.86 x 45.2 mm

Weight

  • 3.5 kg

Mounting

  • Wall mount (Default)
  • VESA mount (Optional)

Enclosure

  • Metal Housing

Cooling System

  • Fanless Design

Cut out

  • 346.5x261mm

Operating Humidity

  • 10% to 90% RH, Non-Condensing

Operating Temperature

  • 0°C to 50°C

Storage Temperature

  • -10°C to 60°C

IP rating

  • Front IP65

Certification

  • CE, FCC

Power Input

  • 1 x 12V DC, 3-Pin Terminal Block

USB Port

  • 2 x USB3.2 Gen1x1 (Type-A)

Serial Port

  • 1 x RS232/422/485 (Default RS232)

Audio

  • 2 x Speaker

Expansion Port

  • 1 x M.2 2242 B-key Slot (for SATA III SSD)
  • 1 x M.2 2230 E-Key Slot (for Wi-Fi module)

LAN

  • 2 x 2.5 Giga LAN RJ45 Connector, One with PoE(PD, 802.3at, 25W)(Optional)

Accessory

  • 100~240V AC to DC Adapter
  • Power Cord
  • Terminal Block to 2.5Ø Female Adapter Cable
  • Open Wire Cable with terminal block connector
  • VESA screws

Optional Accessory

  • VESA Desk Stand (9B0000000412) (Optional)
  • Front Side Wall Mount Kit (99K000A00006) (Optional)

Power Rating

  • 12V DC

Adapter

  • 12V 50W

POE

  • PoE (PD): follows IEEE 802.3at (25 W)
