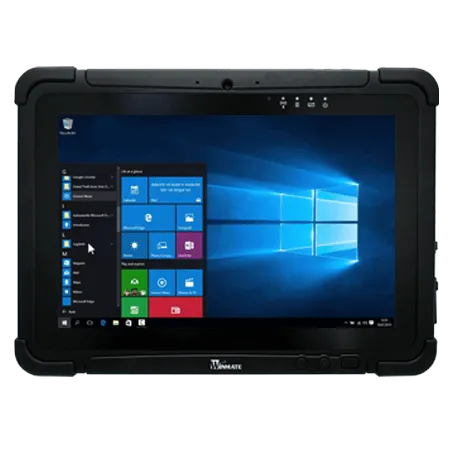

M101AD-EX

10.1” Windows ATEX Rugged Tablet with Intel® Core™ i5-1235U

Features and Benefits

  • Intel® Core™ i5-1235U Alder Lake processor
  • 10.1” 1920 x 1200 IPS LED Panel with direct optical bonding
  • Sunlight readable with antiglare solution
  • Allows cross-zone operations in hazardous and explosive environments
  • Ex Certificate: Class I Division 2 (CID2), ATEX/IECEx Zone 2
  • USB Type C port support PD 3.0 and ALT mode

ATEX & C1D2FCCCE

Available to Order

Models

  • M101P
  • M101PR
  • M101EK
  • M101TG
  • M101S-EX
  • M101AN

Overview

How to Buy

Click “WhatsApp Us” or “Get a Quote” above to buy R19IAD3S-MRM2FP from APulsar Technologies, WINMATE official partner.

Purchase walk-in from our office in Petaling Jaya, or order online and enjoy fast delivery across Kuala Lumpur and the entire Malaysia.

Introduction

Certified for Safe Operations in Hazardous Zones

The M101AD-EX Rugged Tablet is designed to function safely in hazardous and explosive environments. It holds the Ex Certificate for Class I Division 2 (CID2) and ATEX/IECEx Zone 2. This certification ensures the tablet can be used confidently across different hazardous zones.

Outstanding Sunlight Visibility with Anti-Glare Technology

The M101AD-EX Rugged Tablet offers exceptional visibility both indoors and outdoors. Its 10.1″ IPS LED panel, paired with a 1920 x 1200 resolution, delivers sharp and clear images. With optical bonding and an anti-glare touch treatment, you get a superior viewing experience in any lighting condition.



Enhance Efficiency with Real-Time Data Streaming

The M101AD-EX Rugged Tablet delivers real-time data streaming for immediate feedback to your management system. Combined with an Intel processor, optional Barcode and RFID readers, and comprehensive connectivity options like BT, WLAN, LTE, 5G, and GigaLAN, it ensures your operations run smoothly and efficiently.

Advanced Multi-Touch Experience

The M101AD-EX Rugged Tablet delivers a smooth and responsive touch experience with its Projected Capacitive (P-CAP) Multi-Touch screen. It’s designed to support various touch modes, including rain, glove, and stylus modes. This versatility ensures reliable performance in different environments and conditions.|

Built Tough for Industrial Mobility

The M101AD-EX Rugged Tablet is engineered to withstand extreme temperatures, drops, shocks, and vibrations. It’s designed for industrial use and meets the MIL-STD-810H standards, making it resilient in challenging environments

Specifications

Display
  • Size

10.1 inches

  • Resolution

1920×1200

  • Type

Projected Capacitive Multi Touch

  • Panel Brightness

800.0 nits

  • Contrast Ratio

800:1

  • View Angles

85,85,85,85

  • Bonding

Optical Bonding for Sunlight Viewability

  • Viewability

Anti-Glare touch treatment

  • Processor

Intel Core i5-1235U (up to 4.4GHz)

  • Memory

8GB (Default)
16GB (Optional)
32GB (Optional)

  • Storage

128GB SSD
Additional storage available with micro SDXC card slot (Default)
256GB SSD (Optional)
512GB SSD (Optional)
1TB SSD (Optional)
2TB SSD (Optional)

  • Security

Trusted Platform Module (TPM) 2.0
Kensington Lock

  • Operating System

Windows 11 IoT Enterprise LTSC (64 bit) (Default)
Windows 10 IoT Enterprise LTSC (64 bit) (Optional)

  • WLAN

Support

  • BT

Support

  • WWAN

4G LTE (Optional)
5G (Optional)

  • GNSS

GPS, GLONASS

  • RFID

HF RFID reader 13.56 MHz (Optional)

  • Sensors

Light sensor/ G-sensor / Gyro

  • Front Camera

2MP Front Camera

  • Rear Camera

8MP Rear Camera with auto-focus and LED light

  • Dimension

271.5 x 198.2 x 23.3 mm

  • Weight

1.2 kg

  • Cooling System

Fan Design

  • USB Port

1 x USB 3.0 (Type A), 1 x USB 3.0 (Type-C support Power Delivery 20V In and ALT mode)

  • LAN

1 x RJ45-10/100/1000 GigaLAN port

  • Audio

1 x Audio combo 3.5mm audio combo jack
Dual Digital Mic With Noise Cancellation
Dual Speaker

  • SD Card Slot

1 x Micro SDXC slot

  • SIM Card Slot

1 x Nano SIM card slot

  • Indicator

4x LED Indicator for Power, Battery, HDD, RF status

  • Docking Connector

1 x 19-pin docking connector

  • Operating Humidity

10% to 90% RH, non-condensing

  • Operating Temperature

-10°C to 50°C

  • Storage Temperature

-30°C to 70°C (-22°F to 158°F)

  • Shock

MIL-STD-810H Method 516.8 Procedure I

  • Vibration

MIL-STD-810H Method 514.8 Procedure I

  • Drop

MIL-STD-810H Method 516.8 4 ft

  • IP rating

IP65

  • Certification

CE, FCC
Hazardous Location Safety:
IECEx Class I, Zone 2, Ex ic IIC T4 Gc
ATEX Class I, Zone 2, II 3G Ex ic IIC T4 Gc
Class I, Division 2, Groups A, B, C, D, T4
KCs Ex ic IIC T4 Gc

  • SOTI MobiControl

SOTI MobiControl Compliance

  • Kensington Lock

Kensington Lock Support

  • Button

1 x Power, 1 x Home
2 x volume key
2 x Programmable function Keys

  • Battery

Hot-swappable 11.55V, typ. 4558 mAh Li-Polymer Battery (3S2P)

  • Battery Operating Time

Standard. Battery: 8 hours

  • Power Rating

19V DC

  • Adapter

100-240V, 50-60Hz / 19V DC

  • Accessory

Adapter and Power Cord
Capacitive Stylus
Standard Battery

  • Optional Accessory

Desk Dock (Optional)
Vehicle Dock (without VGA output) (Optional)
Vehicle Cradle (Optional)
Vehicle Charger (Optional)
Hand Strap (Optional)
Shoulder Strap (Optional)
Carry Bag (Optional)

  • Barcode Scanner

1D/2D barcode reader (Optional)
