ATX with Intel® Arrow Lake-S , Core™ U9/U7/U5 & Intel® W880 for High-Performance Solution

Features and Benefits

  • Intel® Arrow Lake-S Series with W880
  • 4 DDR5 5600 MT/s ECC/non-ECC UDIMM slots up to 192GB
  • Triple independent displays: VGA, DP, HDMI
  • 4 2.5GbE LAN with RJ-45
  • 1 PCIe x16 (Gen 5) Slot or 2 PCIe x8 (Gen 5), 4 PCIe x4 (Gen 4, 1 signal from CPU, 3 signal from PCH), 1 PCI slot, 1 M.2 E key slot
  • 2 M.2 M key, 4 SATA 3.0 for storage
  • SATA RAID 0/1/5/10
  • 8 USB 3.2 Gen 2, 2 USB 3.2 Gen 1, 3 USB 2.0, 10 COM (2 RS-485 / 8 RS-232), GPIO, PS/2, Audio, 3 System FAN
  • Onboard TPM 2.0
  • SMBus, I2C, PMBus, iAMT 19.x, Chassis Intrusion
  • ATX Power

Price on request

Out of Stock

This product is currently out of stock and unavailable.

WhatsApp Us
Get Quote Get Quote
Download Datasheet Download Datasheet

Models

  • MS-CF20

Overview

How to Buy

Click “WhatsApp Us” or “Get a Quote” above to buy MS-CF20 from APulsar Technologies, MSI IPC official distributor

Purchase walk-in from our office in Petaling Jaya, or order online and enjoy fast delivery across Kuala Lumpur and the entire Malaysia.

Introduction

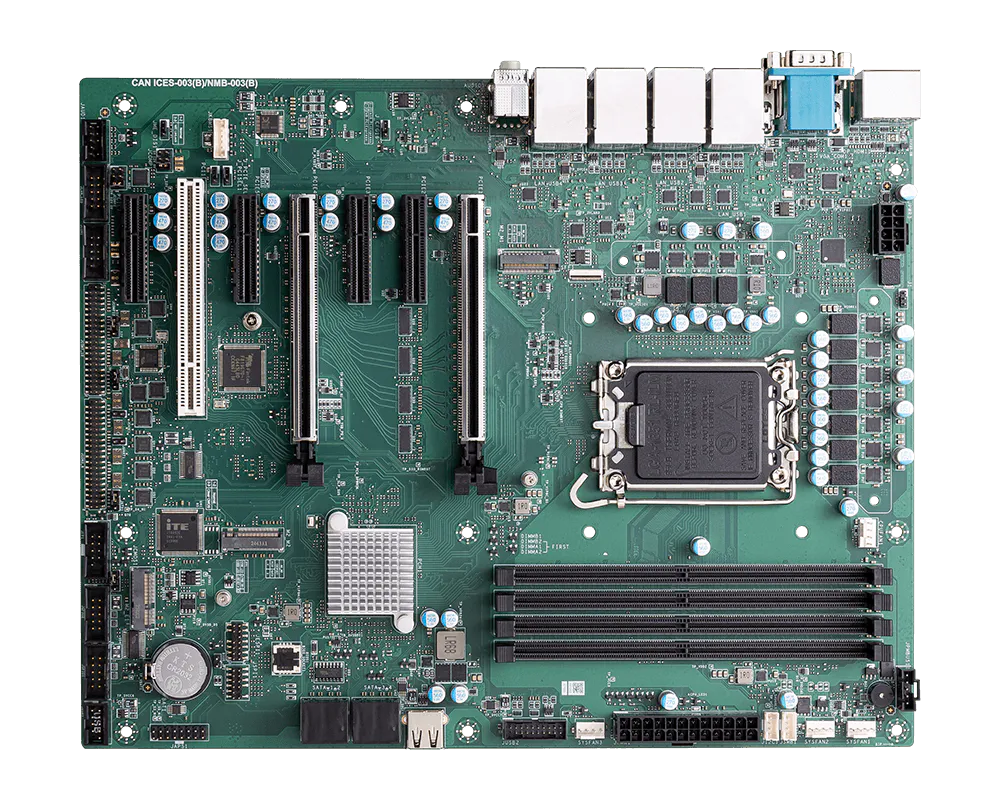

The MSI IPC MS-CF20 is a high-performance industrial ATX motherboard based on the Intel® W880 chipset and designed for edge AI inference, machine vision, industrial automation, and other compute-intensive edge applications. Supporting Intel® Core™ Ultra 200S series desktop processors (Series 2, codenamed Arrow Lake-S) with up to 125W TDP, it provides up to 192GB of dual-channel DDR5-5600 ECC or non-ECC memory, flexible PCIe 5.0 expansion, and up to four Intel® I226-LM 2.5GbE LAN ports. It also supports 3 independent displays, dual M.2 M Key storage, SATA RAID, TPM 2.0, and extensive industrial I/O for scalable edge computing systems.

Specifications

Processor

CPU

  • Intel® Arrow Lake-S Core™ Ultra 9/7/5, Max 125W

Frequency

  • P-Core 1.4GHz~5.6GHz (Depends on CPU)
  • E-Core 1.2GHz~4.6GHz (Depends on CPU)

L2 Cache

  • 3MB~36MB (Depends on CPU)
  • 4MB~36MB (Depends on CPU)

CPU Type

  • Socket (LGA1851)

Chipset

  • Intel® W880

Bios

  • AMI UEFI

Technology

  • Dual-channel DDR5 (non-ECC) 5600 MT/s

Max. Capacity

  • Up to 192GB

Socket

  • 4 x 288-pin UDIMMs

Controller

  • Intel® UHD Graphics

Graphic Memory

  • Depends on CPU

LVDS

  • —

eDP

  • —

VGA

  • 1

DVI

  • —

HDMI

  • 1

DisplayPort

  • 1

Multiple Display

  • 3 independent displays

Display Interface

  • VGA up to 1920 x 1200 @60Hz
  • HDMI up to 4096 x 2160 @60Hz
  • DP up to 4096 x 2304 @60Hz

Controller

  • MS-CF20-SKU1 – 4 x Intel® I226-LM 2.5GbE LAN
  • MS-CF20-SKU2 – 2 x Intel® I226-LM 2.5GbE LAN

Controller

  • Realtek® ALC897 Audio Codec





Controller

  • FINTEK F81967D-I

Watchdog Timer

  • 256-level Watchdog Timer

Smart Fan

  • Yes

Controller

  • Infineon® SLB9672VU2.0

PS/2

  • 1 x PS/2 port by Y-cable for keyboard and mouse

USB

  • 8 x USB 3.2 Gen 2 x1 (8 x rear)
  • 2 x USB 3.2 Gen 1 (2 x internal)
  • 3 x USB 2.0 (3 x internal with one Right Angle Type-A Connector)

Parallel

  • —

MS-CF20-SKU1

Serial

  • 10 x COM ports (1 x rear, 9 x internal)
  • COM1~2: RS-232/422/485, Ring/0V/5V/12V, Auto-flow Control (Default set to Ring)
  • COM3~6: RS-232, 0V/5V/12V
  • COM7~10: RS-232, 0V/5V/12V

MS-CF20-SKU2

Serial

  • 6 x COM ports (1 x rear, 5 x internal)
  • COM1~2: RS-232/422/485, Ring/0V/5V/12V, Auto-flow Control (Default set to Ring)
  • COM3~6: RS-232, 0V/5V/12V

GPIO

  • 16-bits (8 x GPI; 8 x GPO), 5V

PCIe x16

  • 2 (Signal configured as 1 PCIe x16 or 2 PCIe x8)

PCIe x8

  • —

PCIe x4

  • 4

PCIe x1

  • —

PCI

  • 1

M.2

  • 1 x M key (Signal from CPU) 2280, 1 x M key (Signal Shared by PCIe Slot5) 2280
    1 x E key (PCIe x1), 2230

Mini-PCIe

  • 1

SATA

  • 4 x SATA 3.0 (RAID 0/1/5/10)

IDE

  • —

eSATA

  • —

CFast

  • —

mSATA

  • —

CompactFlash

  • —

DC Input

  • —

ATX

  • ATX-Power 24P, 12V-8P

Operating Temperature

  • 0 ~ 60°C

Operating Humidity

  • 10 ~ 90%, non-condensing

Storage Humidity

  • 10 ~ 90%, non-condensing

Storage Temperature

  • -20 ~ 80°C

Dimensions

  • 305 x 244 mm (ATX)

MS-CF20-SKU1

Weight

  • 0.777 Kg

MS-CF20-SKU2

Weight

  • 0.744 kg

EMC

  • CE, FCC Class B, BSMI, RCM, VCCI, UKCA, CN

OS Support

  • Windows 10 IoT Enterprise 21H2 LTSC (64-bit)
  • Windows 11 IoT Enterprise 24H2 LTSC (64-bit)
  • Linux (Support by request)
  • Noted : All driver base on Intel & chip vendor supported
  • 2 x PCIe x16 slot(signal:x16
    or x8 + x8)
  • 4 x PCIe x4 slot
  • 1 x PCI slot
