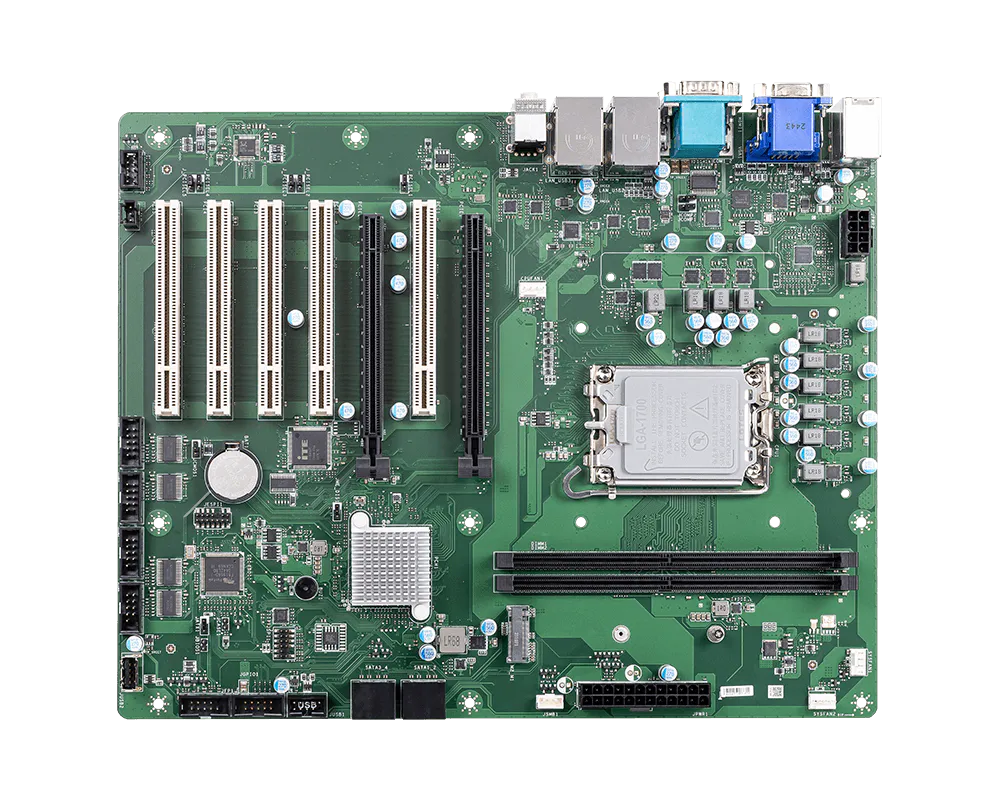

ATX with 14th/13th/12th Gen Intel® Raptor Lake-S Refresh/ Raptor Lake-S/Alder Lake-S, Core™ i9/i7/i5/i3, Pentium®, Celeron®, Bartlett Lake-S Core™ i7/i5/i3/300 Processor & Intel® H610E for Mainstream Solution

Features and Benefits

  • Intel®14th/13th/12th Gen Raptor Lake-S Refresh/Raptor Lake-S/Alder Lake-S Series/Bartlett Lake-S with H610E
  • 2 DDR5 5600 MT/s non-ECC UDIMM slots up to 64GB
  • Dual independent displays: VGA, HDMI
  • 1 2.5GbE LAN with RJ-45, 1 GbE LAN with RJ-45
  • 1 PCIe x16 (Gen 5) , 1 PCIe x4 (Gen3), 5 PCI
  • 1 M.2 M key, 4 SATA 3.0 for storage
  • 2 USB 3.2 Gen 2, 2 USB 3.2 Gen 1, 5 USB 2.0, 6 COM (1 RS-485), GPIO, PS/2, Audio, 2 System FAN
  • Onboard TPM 2.0
  • SMBus, Chassis Intrusion
  • ATX Power

Price on request

Out of Stock

This product is currently out of stock and unavailable.

WhatsApp Us
Get Quote Get Quote
Download Datasheet Download Datasheet

Models

  • MS-CF06 V2.0

Overview

How to Buy

Click “WhatsApp Us” or “Get a Quote” above to buy MS-CF06 V2.0 from APulsar Technologies, MSI IPC official distributor

Purchase walk-in from our office in Petaling Jaya, or order online and enjoy fast delivery across Kuala Lumpur and the entire Malaysia.

Introduction

The MSI MS-CF06 V2.0 is an industrial ATX motherboard based on the Intel® H610E chipset, supporting 12th, 13th, and 14th Gen Intel® Core™ processors and Intel® Bartlett Lake-S processors up to 65W. It provides up to 64GB of dual-channel DDR5 5600 MT/s memory, PCIe Gen 5 x16 expansion, five legacy PCI slots, dual independent displays, 2.5GbE and GbE LAN, M.2 and SATA storage, six COM ports, GPIO, and onboard TPM 2.0. Designed for factory automation, machine control, test equipment, and industrial system modernization, the MS-CF06 V2.0 combines current-generation computing performance with extensive connectivity and legacy expansion support.

Specifications

Processor

CPU

  • 12th Gen Intel® Alder Lake-S i9/i7/i5/i3/Pentium®/Celeron® IOTG Series Processor, Max 65W
  • 13th Gen Intel® Raptor Lake-S i9/i7/i5/i3/Pentium®/Celeron® IOTG Series Processor, Max 65W
  • 14th Gen Intel® Raptor Lake-S Refresh i9/i7/i5/i3/Pentium®/Celeron® IOTG Series Processor, Max 65W
  • Intel® Bartlett Lake-S i7/i5/i3/300 IOTG Series Processor, Max 65W

Frequency

  • P-Core 1.1GHz~5.9GHz (Depends on CPU
  • E-Core 0.9GHz~3.8GHz (Depends on CPU)

L2 Cache

  • 4MB~36MB (Depends on CPU)

CPU Type

  • Socket (LGA1700)

Chipset

  • Intel® Q670E Express

Bios

  • AMI UEFI

Technology

  • Dual-channel DDR5 (non-ECC) 5600 MT/s

Max. Capacity

  • Up to 64GB

Socket

  • 2 x 288-pin UDIMMs

Controller

  • Intel® UHD Graphics

Graphic Memory

  • Depends on CPU

Display Mode

  • VGA up to 1920 x 1200 @60Hz
  • HDMI™ up to 4096 x 2160 @24Hz

LVDS

  • —

eDP

  • —

VGA

  • 1

DVI

  • —

HDMI

  • 1

DisplayPort

  • —

Multiple Display

  • 2 independent displays

Controller

  • 1 x Intel® I219LM GbE LAN PHY 1 x Intel®® I226-V 2.5GbE LAN





Controller

  • Realtek® ALC897 Audio Codec (Co-lay ALC888S)

Controller

  • FINTEK F81966D-I

Watchdog Timer

  • 256-level Watchdog Timer

Smart Fan

  • Yes

PS/2

  • 1 x PS/2 port by Y-cable for keyboard and mouse

USB

  • 2 x USB 3.2 Gen 2 x1 (8 x rear)
  • 5 x USB 3.2 Gen 1 Ports (2 x internal)
  • 5 x USB 2.0 (3 x internal with one Vertical Type-A Connector)

Parallel

  • —

Serial

  • 6 x COM ports (2 rear, 4 x internal)
  • COM1: RS-232/422/485 0V/5V/12V, Auto-flow Control
  • COM2: RS-232, 0V/5V/12V
  • COM3~6: RS-232

GPIO

  • 8-bits (4 x GPI; 4 x GPO), 5V

Controller

  • Infineon® SLB9672VU2.0

SATA

  • 4 x SATA 3.0 (SATA port 1 shared with M.2 M Key)

IDE

  • —

eSATA

  • —

CFast

  • —

mSATA

  • —

CompactFlash

  • —

PCIe x16

  • 1

PCle x8

  • —

PCle x4

  • 1

PCle x1

  • —

PCI

  • 5

M 2

  • 1 x M.2 M key (SATA 3.0, signal shared with SATA port 1), 2242/2280

Mini PCle

  • —

Operating Temperature

  • 0 ~ 60°C

Operating Humidity

  • 10 ~ 90%, non-condensing

Storage Humidity

  • 10 ~ 90%, non-condensing

Storage Temperature

  • -20 ~ 80°C

Dimensions

  • 305 x 244 mm (ATX)

Weight

  • 0.728 Kg

EMC

  • CE, FCC Class B, BSMI, RCM, VCCI, UKCA, CN

OS Support

  • Windows 10 IoT Enterprise 21H2 LTSC (64-bit)
  • Windows 11 IoT Enterprise 24H2 LTSC (64-bit)
  • Linux (Support by request)
  • Noted : All driver base on Intel & chip vendor supported
  • 2 x PCIe x16 slot(signal:x16
    or x8 + x8)
  • 4 x PCIe x4 slot
  • 1 x PCI slot
