MSI IPC

MS-CF05 V2.0

ATX with 14th/13th/12th Gen Intel® Raptor Lake-S Refresh/ Raptor Lake-S/Alder Lake-S, Core™ i9/i7/i5/i3, Pentium®, Celeron®, Bartlett Lake-S Core™ i7/i5/i3/300 Processor, Intel® Core™ Processors (Series 2) Bartlett Lake 12P 9/7/5 Series Processor & Intel® Q670E for High-Performance Solution

Features and Benefits

  • Intel®14th/13th/12th Gen Raptor Lake-S Refresh/Raptor Lake-S/Alder Lake-S Series/Bartlett Lake-S/Bartlett Lake 12P with Q670E
  • 4 DDR5 4400 MT/s non-ECC UDIMM slots up to 128GB
  • Triple independent displays: VGA, DP, HDMI
  • 2 2.5GbE LAN with RJ-45
  • 1 PCIe x16 (Gen 4) or 2 PCIe x8 (Gen 4), 1 PCIe x4 (Gen 4), 3 PCIe x4 (Gen 3), 1 PCI slot, 1 M.2 B key slots
  • 2 M.2 M key, 4 SATA 3.0 for storage
  • SATA RAID 0/1/5/10
  • 8 USB 3.2 Gen 2, 2 USB 3.2 Gen 1, 3 USB 2.0, 6 COM (6 RS-485), GPIO, PS/2, Audio, 3 System FAN
  • Onboard TPM 2.0
  • SMBus, I2C, PMBus, iAMT 16.x, Chassis Intrusion
  • ATX Power

Price on request

Out of Stock

This product is currently out of stock and unavailable.

WhatsApp Us
Get Quote Get Quote
Download Datasheet Download Datasheet

Models

  • MS-CF05 V2.0

Overview

 How to Buy

Click “WhatsApp Us” or “Get a Quote” above to buy MS-CF05 V2.0 from APulsar Technologies, MSI IPC official distributor

Purchase walk-in from our office in Petaling Jaya, or order online and enjoy fast delivery across Kuala Lumpur and the entire Malaysia.

Introduction

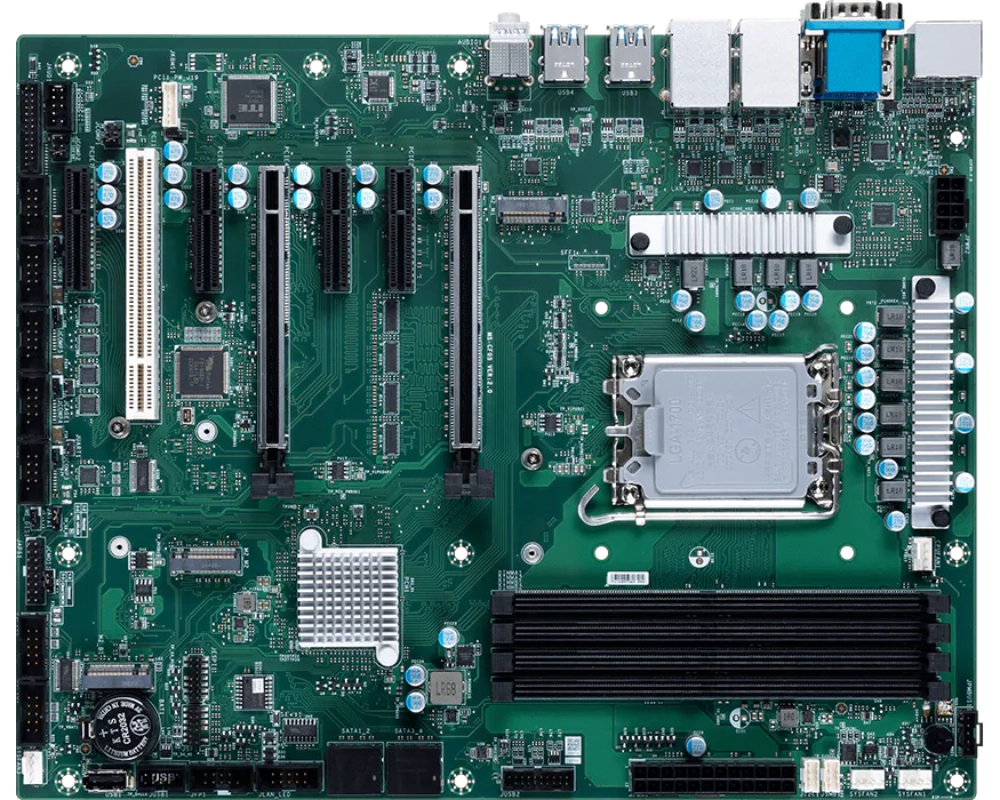

The MSI IPC MS-CF05 V2.0 is a high-performance industrial ATX motherboard based on the Intel® Q670E chipset. It supports 12th, 13th, and 14th Gen Intel® Core™ processors, as well as selected Intel® Core™ processors Series 2 based on the Bartlett Lake-S platform, with CPU TDP up to 125W.Designed for industrial automation, machine vision, edge computing, and equipment control, the MS-CF05 V2.0 supports up to 128GB of dual-channel DDR5-4400 non-ECC memory, 3 independent displays through VGA, HDMI, and DisplayPort, and 2 Intel® I226-LM 2.5GbE LAN ports. Its extensive expansion capabilities include configurable PCIe x16 (Gen 4) or dual PCIe x8 (Gen 4)slots, multiple PCIe x4 slots, 1 legacy PCI slot, dual M.2 M Key storage slots, 1 M.2 B Key slot, and 4 SATA 3.0 ports with RAID 0, 1, 5, and 10 support.

Specifications

Processor

CPU

  • 12th Gen Intel® Alder Lake-S i9/i7/i5/i3/Pentium®/Celeron® IOTG Series Processor, Max 125W
  • 13th Gen Intel® Raptor Lake-S i9/i7/i5/i3/Pentium®/Celeron® IOTG Series Processor, Max 125W
  • 14th Gen Intel® Raptor Lake-S Refresh i9/i7/i5/i3/Pentium®/Celeron® IOTG Series Processor, Max 125W
  • Intel® Bartlett Lake-S i7/i5/i3/300 IOTG Series Processor, Max 125W
  • Intel® Core™ processors (Series 2) Bartlett Lake 12P 9/7/5 Series Processor, Max 125W

Frequency

  • P-Core 1.1GHz~5.9GHz (Depends on CPU
  • E-Core 0.9GHz~3.8GHz (Depends on CPU)

L2 Cache

  • 4MB~36MB (Depends on CPU)

CPU Type

  • Socket (LGA1700)

Chipset

  • Intel® Q670E Express

Bios

  • AMI UEFI

Technology

  • Dual-channel DDR5 (non-ECC) 4400 MT/s

Max. Capacity

  • Up to 128GB

Socket

  • 4 x 288-pin UDIMMs

Controller

  • Controller

Graphic Memory

  • Depends on CPU

LVDS

  • —

eDP

  • —

VGA

  • 1

DVI

  • —

HDMI

  • 1

DisplayPort

  • 1

Multiple Display

  • 3 independent displays

Display Interface

  • VGA up to 1920 x 1200 @60Hz
  • HDMI up to 4096 x 2160 @60Hz
  • DP up to 4096 x 2304 @60Hz

Controller

  • 2 x Intel® I226-LM 2.5GbE

Controller

  • Realtek® ALC897 Audio Codec (Co-lay ALC888S)





Controller

  • FINTEK F81966D-I

Watchdog Timer

  • 256-level Watchdog Timer

Smart Fan

  • Yes

Controller

  • Infineon® SLB9672VU2.0

PS/2

  • 1 x PS/2 port by Y-cable for keyboard and mouse

USB

  • 8 x USB 3.2 Gen 2 x1 (8 x rear)
  • 2 x USB 3.2 Gen 1 Ports (2 x internal)
  • 3 x USB 2.0 (3 x internal with one Vertical Type-A Connector)

Parallel

  • Yes

Serial

  • 6 x COM ports (1 x rear, 5 x internal)
  • COM1~2: RS-232/422/485, Ring/0V/5V/12V, Auto-flow Control (Default set to Ring)
  • COM3~6: RS-232, 0V/5V/12V

GPIO

  • 16-bits (8 x GPI; 8 x GPO), 5V

PCIe x16

  • 2 (Signal configured as 1 PCIe x16 or 2 PCIe x8)

PCle x8

  • —

PCle x4

  • 4

PCle x1

  • —

PCI

  • 1

M.2

  • 1 x M key (Signal from CPU), 2242/2280
  • 1 x M key (Signal Shared by PCIe Slot5), 2242/2280
  • 1 x B key (PCIe x1), 2242/2280

Mini-PCle

  • —





SATA

  • 4 x SATA 3.0 (RAID 0/1/5/10)

IDE

  • —

eSATA

  • —

CFast

  • —

mSATA

  • —

CompactFlash

  • —

DC Input

  • —

ATX

  • ATX-Power 24P, 12V-8P

Operating Temperature

  • 0 ~ 60°C

Operating Humidity

  • 10 ~ 90%, non-condensing

Storage Humidity

  • 10 ~ 90%, non-condensing

Storage Temperature

  • -20 ~ 80°C

Dimensions

  • 305 x 244 mm (ATX)

Weight

  • 0.779 Kg

EMC

  • BSMI, KC

OS Support

  • Windows 10 IoT Enterprise 21H2 LTSC (64-bit)
  • Windows 11 IoT Enterprise 24H2 LTSC (64-bit)
  • Linux (Support by request)
  • Noted : All driver base on Intel & chip vendor supported
  • 2 x PCIe x16 slot(signal:x16
    or x8 + x8)
  • 4 x PCIe x4 slot
  • 1 x PCI slot
