Winmate

I330EAC-ITWE

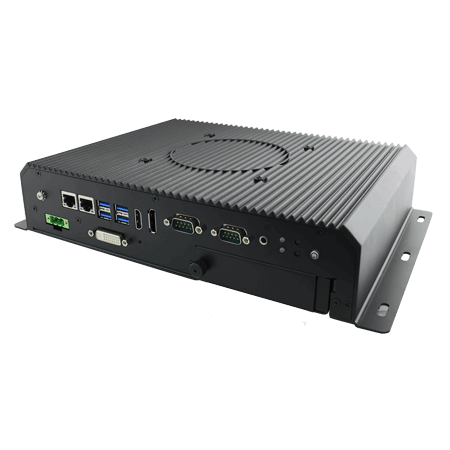

Marine Computer I330EAC-ITWE with Intel® Tiger Lake Celeron® 6305 processor.

Features and Benefits

  • Intel® Tiger Lake Celeron® 6305
  • RAM 4G DDR4L (Up to 32G)
  • Removable 2.5″ SSD drive bay
  • Multi Video Output, DVI/HDMI/Display Port
  • Isolation Power Protection 1.5KV
  • 4 x Digital Input / 4 x Digital Output
  • 8 x NMEA Port 0183

Available to Order
WhatsApp Us
Get Quote Get Quote
Download Datasheet Download Datasheet

Models

  • I330EAC-ITWE

Overview

How to Buy

Click “WhatsApp Us” or “Get a Quote” above to buy R19IAD3S-MRM2FP from APulsar Technologies, WINMATE official partner.

Winmate Marine Computer Series offers high-performance computing solutions tailored for maritime environments. Powered by advanced processors, including Intel® Tiger Lake, Elkhart Lake, and Apollo Lake, these systems deliver reliable performance for navigation, vessel monitoring, and industrial automation. Designed with features such as multi-video output, isolation power protection, and support for NMEA 0183, they ensure seamless integration with marine systems. In compliance with DNVGL-CG-0339 and IEC60945 standards, the series guarantees durability in harsh conditions. With compact designs, fanless cooling, and versatile mounting options, these marine computers are ideal for a wide range of marine and industrial applications.

Specifications

System Specification

Processor

  • Intel Celeron 6305 1.8GHz

Memory

  • 4G (Default)
  • 8GB (Optional)
  • 16GB (Optional)
  • 32GB (Optional)

Storage

  • 1 x M.2 M-Key 2280 NVMe SSD, 128GB (Default)
  • 256GB (Optional)
  • 512GB (Optional)
  • 1TB (Optional)
  • 2TB (Optional)
  • 4TB (Optional)

Ethernet controller

  • Intel® Ethernet Connection I219-LM
  • Intel® Ethernet Connection I225-LM

Operating System

  • Windows 11 IoT Enterprise LTSC (64 bit) (Optional)
  • Windows 10 IoT Enterprise (64 bit) (Optional)

Operating Humidity

  • 5% to 95%

Operating Temperature

  • -15~55°C

Shock

  • 15G,11ms duration

Vibration

  • 0.7g@DNV-CG-0339 (Class A)

Certification

  • CE, FCC

USB Port

  • 4 x USB 3.0

Serial Port

  • 2 x RS232/422/485

Video

  • 1 x DVI
  • 1 x Display Port (Default)
  • 1 x HDMI Output (Optional)

Audio

  • 1 x Audio combo 3.5mm audio combo jack

Expansion Port

  • 2 x 2.5″ Removable SSD/HDD (Optional)

LAN

  • 2 x Giga LAN

DIDO

  • 8 x Isolated DIDO, 4 In/ 4out

NMEA

  • 8 x NMEA 0183 Port

Dimension

  • 316.44 x 206.8 x 62.1 mm
  • (With Mounting)

Weight

  • 3.9 kg

Mounting

  • Table mount

Enclosure

  • Aluminum

Cooling System

  • Fanless Design

Power Rating

  • 24V DC In (Approval by Certificate)
  • 9~36V DC Input Acceptable

Consumption

  • 50W

Button

  • 1 x Power Button
  • 1 x Reset Button

Accessory

  • 1 x Quick Start Guide
  • 1 x Power Cord
  • 1 x Open Wire Cable
  • 1 x AC Adapter12V/ 84W
