Winmate

I330EAC-ITW-6L

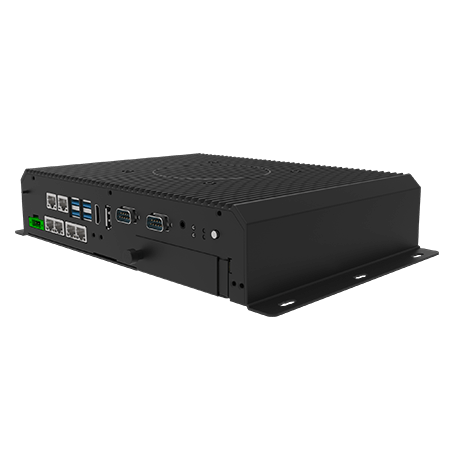

Winmate marine computer I330EAC-ITW-6L with Intel® Tiger Lake Core™ i5-11135G7 Processor.

Features and Benefits

  • Intel® Tiger Lake Core™ i5-1135G7, Marine computer
  • RAM 4G DDR4L (Up to 32G)
  • Removable 2.5” SSD drive bay
  • 6 x LAN port
  • Isolation Power Protection 1.5KV
  • DNVGL-CG-0339, IEC60945 Certificate
IEC60945DNVGL-CG-0339FCCCE

Available to Order
WhatsApp Us
Get Quote Get Quote
Download Datasheet Download Datasheet

Models

  • I330EAC-ITW-6L

Overview

How to Buy

Click “WhatsApp Us” or “Get a Quote” above to buy I330EAC-ITW-6L from APulsar Technologies, WINMATE official partner.

Winmate Marine Embedded Computer Series is engineered for maritime applications, combining robust performance with certification from DNVG-CG-0339, IEC 60945 and IACS E10. Powered by the Intel® Tiger Lake Core™ i5-1135G7 processor, it supports up to 32GB DDR4L RAM and features a removable 2.5” SSD drive bay for storage flexibility. With 6 LAN ports, multi-video output, and isolation power protection, the system ensures reliable communication and operation in demanding environments. Its modular design allows seamless integration with industrial monitors, making it ideal for port management, offshore systems, and maritime IoT applications.

Specifications

System Specification

Processor

  • Intel Core i5-1135G7 2.4GHz (up to 4.2GHz)

Memory

  • 4GB (Default)
  • 8GB (Optional)
  • 16GB (Optional)
  • 32GB (Optional)

Storage

  • 1 x M.2 M-Key 2280 NVMe SSD, 128GB (Default)
  • 256GB (Optional)
  • 512GB (Optional)
  • 1TB (Optional)
  • 2TB (Optional)
  • 4TB (Optional)

Ethernet controller

  • Intel® Ethernet Connection I219-LM
  • Intel® Ethernet Connection I225-LM

Operating System

  • Windows 11 IoT Enterprise LTSC (64 bit) (Optional)
  • Windows 10 IoT Enterprise (64 bit) (Optional)

Operating Humidity

  • 5% to 95%

Operating Temperature

  • -15~55°C

Shock

  • 15G,11ms duration

Vibration

  • 0.7g@DNV-CG-0339 (Class A)

Certification

  • CE, FCC
  • DNV-CG-0339, IEC60945 4th, IACS E10

USB Port

  • 4 x USB 3.0

Serial Port

  • 2 x RS232/422/485

Video

  • 1 x Display Port (Default)
  • 1 x HDMI Output (Optional)

Audio

  • 1 x Audio combo 3.5mm audio combo jack

Expansion Port

  • 2 x 2.5″ Removable SSD/HDD (Optional)

LAN

  • 6 x Giga LAN

Dimension

  • 316.44 x 206.8 x 62.1 mm
  • (With Mounting)

Weight

  • 3.9 kg

Mounting

  • Table mount

Enclosure

  • Aluminum

Cooling System

  • Fanless Design

Power Rating

  • 24V DC In (Approval by Certificate)
  • 9~36V DC Input Acceptable

Consumption

  • 50W

Button

  • 1 x Power Button
  • 1 x Reset Button

Accessory

  • 1 x Quick Start Guide
  • 1 x Power Cord
  • 1 x Open Wire Cable
  • 1 x AC Adapter12V/ 120W
