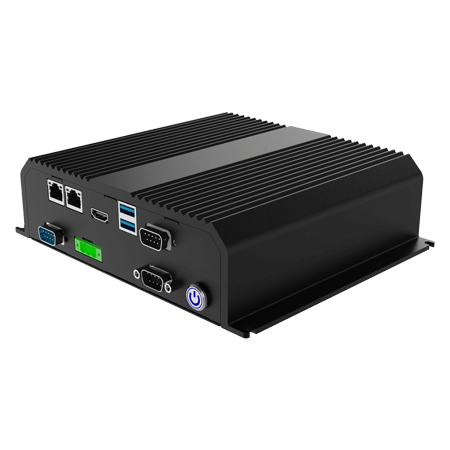

I330EAC-IE3

Discover the power and reliability of industrial marine computing with the Intel® Elkhart Lake Pentium® N6415 Processor Dash Panel PC. This advanced solution meets industrial marine standards, including DNVGL-CG-0339, IEC60945, and IACS E10.

Features and Benefits

  • Intel® Elkhart Lake Pentium® N6415 Processor Dash panel PC
  • 9~36V DC Power input acceptable

FCCCE

Available to Order
Download Datasheet Download Datasheet

Models

  • I330EAC-IE3

Overview

How to Buy

Click “WhatsApp Us” or “Get a Quote” above to buy I330EAC-IE3 from APulsar Technologies, WINMATE official partner.

Winmate Marine Computer Series offers high-performance computing solutions tailored for maritime environments. Powered by advanced processors, including Intel® Tiger Lake, Elkhart Lake, and Apollo Lake, these systems deliver reliable performance for navigation, vessel monitoring, and industrial automation. Designed with features such as multi-video output, isolation power protection, and support for NMEA 0183, they ensure seamless integration with marine systems. In compliance with DNVGL-CG-0339 and IEC60945 standards, the series guarantees durability in harsh conditions. With compact designs, fanless cooling, and versatile mounting options, these marine computers are ideal for a wide range of marine and industrial applications.

Specifications

System Specification

Processor

  • Intel®Pentium® N6415 (1.5M Cache, up to 3.0GHz)

Memory

  • 1 x SO-DIMM, DDR4 3200 MHz, 4GB (Default)
  • 8GB (Optional)
  • 16GB (Optional)

Storage

  • 1 x M.2 2242 B-key SSD 256GB (Default)
  • 512GB (Optional)

Ethernet controller

  • 2 x 2.5 Giga LAN RJ45 Connector

Security

  • TPM 2.0

Operating System

  • Windows 11 IoT Enterprise LTSC (64 bit) (Optional)
  • Windows 10 IoT Enterprise (64 bit) (Optional)

Operating Humidity

  • 5% to 95%

Operating Temperature

  • -15~55°C

Shock

  • 15G,11ms duration

IP rating

  • IP66 (Front Side)

Certification

  • CE, FCC

USB Port

  • 2 x USB3.2 Gen1x1 (Type-A)

Serial Port

  • 3 x RS232

Video

  • 1 x HDMI 2.0 (Optional)

LAN

  • 2 x RJ45-10/100/1000 Mbps

Dimension

  • 205 x 170 x 55 mm

Weight

  • 2.3 kg

Mounting

  • VESA mount

Enclosure

  • Metal

Cooling System

  • Fanless Design

Power Rating

  • 9V~36V DC In Terminal Block

Button

  • 1 x Power Button

Accessory

  • Driver CD & User Manual
  • AC to DC Adapter 12V/ 50W
  • Power Cord
  • 3 pin Terminal Block to DC Jack
