Winmate

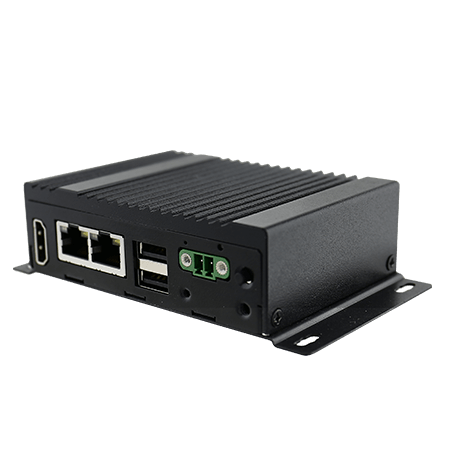

EACIL20-MR

Winmate Marine Computer EACIL20-MR built for marine industry with DNV CE FCC certifications and a compact fanless design.

Features and Benefits

  • Intel® Apollo Lake N4200 Computer
  • Fanless cooling system
  • Compact size 100 x 70 x 31 mm(w/o mounting bracket)
  • Expansion module design
  • Various mounting options: desk, wall, VESA, DIN-Rail
DNVGL-CG-0339FCCCE

Available to Order
WhatsApp Us
Get Quote Get Quote
Download Datasheet Download Datasheet

Models

  • EACIL20-MR

Overview

How to Buy

Click “WhatsApp Us” or “Get a Quote” above to buy EACIL20-MR from APulsar Technologies, WINMATE official partner.

Winmate Marine Computer Series offers high-performance computing solutions tailored for maritime environments. Powered by advanced processors, including Intel® Tiger Lake, Elkhart Lake, and Apollo Lake, these systems deliver reliable performance for navigation, vessel monitoring, and industrial automation. Designed with features such as multi-video output, isolation power protection, and support for NMEA 0183, they ensure seamless integration with marine systems. Certified with DNVGL-CG-0339 and meeting IEC60945 standards, the series guarantees durability in harsh conditions. With compact designs, fanless cooling, and versatile mounting options, these marine computers are ideal for a wide range of marine and industrial applications.

Specifications

System Specification

WLAN

  • Support (Optional)

BT

  • Support (Optional)

WWAN

  • WWAN (Optional)

Expansion Port

  • EACWSLT-222 WWAN Expansion Board (Single SIM Slot)
  • EACWSLT-231 3-port RS232/422/485 w/ isolation
  • EACWSLT-232 16-Channel Digital I/O w/ isolation
  • EACWSLT-233 2-port CANBUS w/ isolation
  • EACWLST-234 3 -port USB 2.0
  • EACWLST-235 2-port RS232/422/485 w/ isolation
  • EACWLST-236 2-port Giga-LAN
  • EACWLST-237 WWAN Expansion Board (Dual SIM Slot)

Processor

  • Intel Pentium N4200 1.1GHz (up to 2.5GHz)

Memory

  • 4GB LPDDR4 2400 MHz

Storage

  • eMMC: Onboard 32 GB (Default)
  • eMMC: Onboard 64 GB (Optional)
  • eMMC: Onboard 128 GB (Optional)
  • mSATA SSD 128GB (Optional)

Ethernet controller

  • 2 x Intel® Ethernet Controller

Security

  • TPM 2.0

Operating System

  • Windows 10 IoT Enterprise (64 bit) (Optional)

Dimension

  • 100 (W) x 70 (H) x 31(D) mm(One layer)
  • 100 (W) x 70 (H) x 61(D) mm(Double layer)

Weight

  • 0.4 kg (One layer),
  • 0.5 kg (Double layer)

Mounting

  • Desk mount & Wall mount (Default)
  • VESA mount (Optional)
  • DIN-Rail mount (Optional)

Enclosure

  • Metal

Cooling System

  • Fanless Design

Operating Humidity

  • 30% to 90% RH, Non-Condensing

Operating Temperature

  • 0°C to 55°C

Storage Temperature

  • -15°C to 70°C

Shock

  • Operating, IEC 60068-2-27

Vibration

  • Operating, IEC 60068-2-64

IP rating

  • IP30

Certification

  • CE, FCC
  • DNVGL-CG-0339

USB Port

  • 2 x USB3.2 Gen1x1 (Type-A)

Video

  • 1 x HDMI 1.4 (Optional)

Expansion Port

  • mPCIe: 1 x Full-size mPCIe slot
  • USB Wafer : 2 x USB Wafer

LAN

  • 2 x Giga LAN RJ45 Connector

Indicator

  • 1 x LED Indicator for power

mini PCIe

  • 1 x Mini PCIE

Button

  • 1 x Power Button
  • 1 x Reset Button

Accessory

  • Quick Start Guide
  • Driver CD
  • AC to DC Adapter 12V/36W
  • Terminal Block 2 pin to 2.5Ø Female Adapter Cable
  • Open Wire Cable with terminal block 2 pin connector
  • WLAN External Antenna (For WLAN sku)
  • WWAN External Antenna (For WWAN sku) (Default)
  • VESA Mounting Kit (Optional)
  • DIN Rail Mounting Kit (Optional)

Power Rating

  • 9V to 36V DC, 2-Pin Terminal Block

Consumption

  • 25W (Typical)
