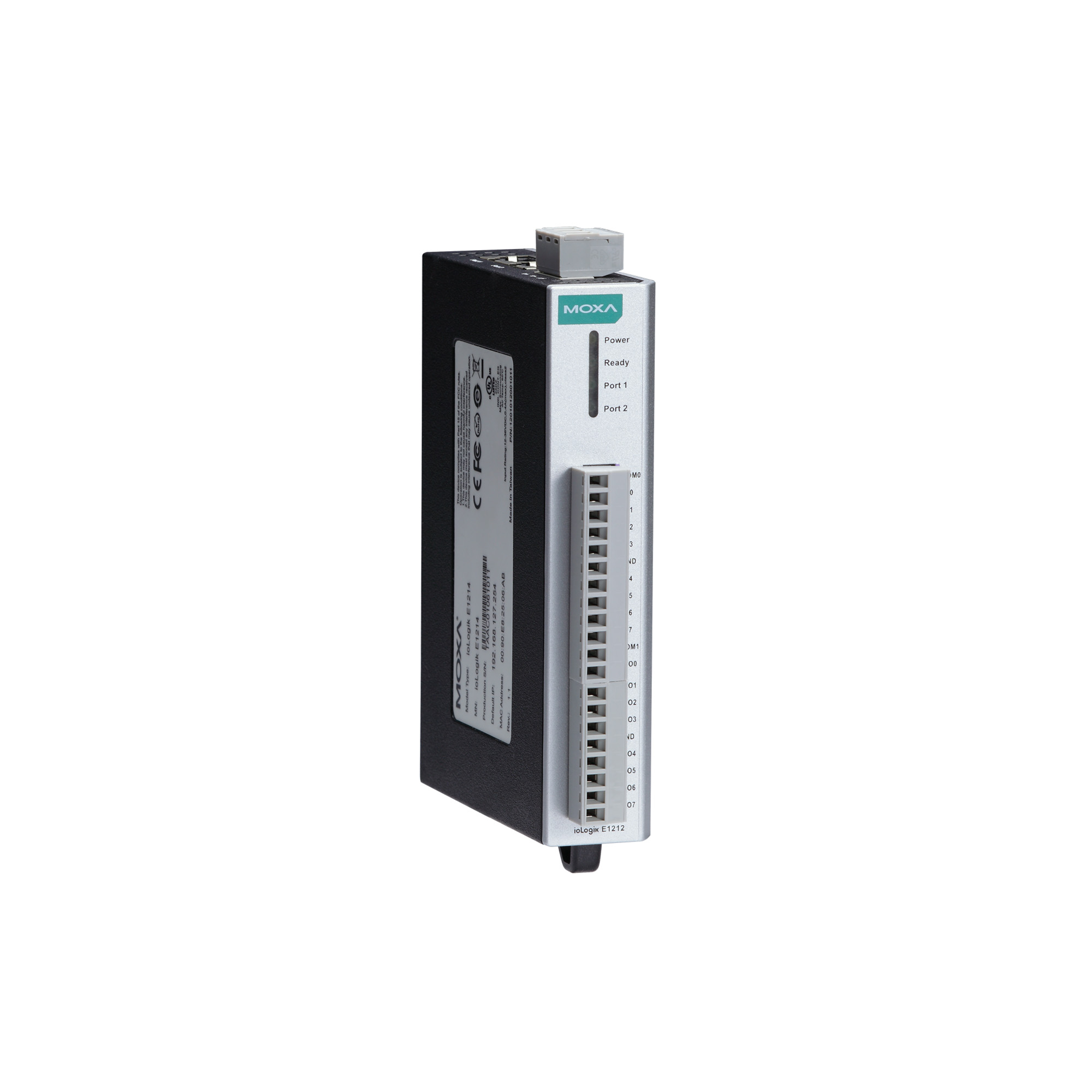

ioLogik E1200 Series

Ethernet remote I/O with 2-port Ethernet switch

Features and Benefits

  • User-definable Modbus TCP Slave addressing
  • Supports RESTful API for IIoT applications
  • Supports EtherNet/IP Adapter
  • 2-port Ethernet switch for daisy-chain topologies
  • Saves time and wiring costs with peer-to-peer communications
  • Active communication with MX-AOPC UA Server
  • Supports SNMP v1/v2c
  • Easy mass deployment and configuration with ioSearch utility
  • Friendly configuration via web browser
  • Simplifies I/O management with MXIO library for Windows or Linux
  • Class I Division 2, ATEX Zone 2 certification
  • Wide operating temperature models available for -40 to 75°C (-40 to 167°F) environments

Available to Order
WhatsApp Us
Get Quote Get Quote
Download Datasheet Download Datasheet

Models

  • ioLogik E1210 (In Stock) / ioLogik E1210-T
  • ioLogik E1211 (In Stock) / ioLogik E1211-T
  • ioLogik E1212 (In Stock) / ioLogik E1212-T
  • ioLogik E1213 / ioLogik E1213-T
  • ioLogik E1214 (In Stock) / ioLogik E1214-T
  • ioLogik E1240 (In Stock) / ioLogik E1240-T
  • ioLogik E1241 / ioLogik E1241-T
  • ioLogik E1242 (In Stock) / ioLogik E1242-T
  • ioLogik E1260 / ioLogik E1260-T
  • ioLogik E1262 / ioLogik E1262-T

Overview

How to Buy

Click “WhatsApp Us” or “Get a Quote” above to buy ioLogik E1200 Series from APulsar Technologies, MOXA official distributor.

In Stock. Purchase walk-in from our office in Petaling Jaya. Or order online and enjoy fast delivery across Kuala Lumpur and the entire Malaysia.

Introduction

The ioLogik E1200 Series supports the most widely used protocols for retrieving I/O data, making it suitable for diverse applications. IT engineers often use SNMP or RESTful API, while OT engineers prefer Modbus and EtherNet/IP.

With Moxa’s Smart I/O, both IT and OT teams can retrieve data from the same device. The E1200 speaks six protocols: Modbus TCP, EtherNet/IP, and Moxa AOPC for OT; SNMP, RESTful API, and Moxa MXIO library for IT. It can retrieve data and convert it into any of these protocols simultaneously, ensuring quick and flexible integration.

Daisy-Chained Ethernet I/O Connection

The E1200 features two switched Ethernet ports for downstream and upstream connections. This enables expandable daisy-chained Ethernet I/O arrays without extra switches.

You can connect devices downstream to local equipment or upstream to a control server. This setup works well in factory automation, security and surveillance, or tunnel systems. Daisy-chaining increases expandability and lowers costs by reducing switches, cabling, and labor.

Save Time and Wiring Costs with Peer-to-Peer Communications

In remote automation, the control room and sensors are often far apart. Long-distance wiring is expensive and complex.

Peer-to-peer networking maps a pair of ioLogik modules so that input values are sent directly to output channels. This eliminates extra wiring and simplifies installation.

User-Definable Modbus TCP Addressing for Painless Upgrading of Existing Systems

Many Modbus devices use fixed addresses, which can slow setup. You must locate each device’s networking details, such as I/O channels or vendor-specific addresses, before configuring a SCADA or PLC.

The E1200 supports user-definable Modbus TCP addressing, so you simply set the function and address map to match your system, reducing setup time.

Push Technology for Events

When paired with MX-AOPC UA Server, the E1200 can push event data directly to a SCADA system. Unlike polling, push technology sends updates only when changes or configured events occur. This reduces data traffic while increasing accuracy.

Specifications

Input/Output Interface

Digital Input Channels

  • ioLogik E1210 models: 16
  • ioLogik E1212/E1213 models: 8
  • ioLogik E1214 models: 6
  • ioLogik E1242 models: 4

Digital Output Channels

  • ioLogik E1211 models: 16
  • ioLogik E1213 models: 4

Configurable DIO Channels (by jumper)

  • ioLogik E1212 models: 8
  • ioLogik E1213/E1242 models: 4

Relay Channels

  • ioLogik E1214 models: 6

Analog Input Channels

  • ioLogik E1240 models: 8
  • ioLogik E1242 models: 4

Analog Output Channels

  • ioLogik E1241 models: 4

RTD Channels

  • ioLogik E1260 models: 6

Thermocouple Channels

  • ioLogik E1262 models: 8

Isolation

  • 3k VDC or 2k Vrms

Buttons

  • Reset button

Connector

  • Screw-fastened Euroblock terminal

Sensor Type

  • Dry contact
    Wet contact (NPN or PNP)

I/O Mode

  • DI or event counter

Dry Contact

  • On: short to GND
    Off: open

Wet Contact (DI to COM)

  • ioLogik E1210/E1212/E1213/E1214/E1242 models:
    On: 10 to 30 VDC
    Off: 0 to 3 VDC

Counter Frequency

  • 250 Hz

Digital Filtering Time Interval

  • Software configurable

Points per COM

  • ioLogik E1210/E1212 models: 8 channels
    ioLogik E1213 models: 12 channels
    ioLogik E1214 models: 6 channels
    ioLogik E1242 models: 4 channels

Connector

  • Screw-fastened Euroblock terminal

I/O Type

  • ioLogik E1211/E1212/E1242 models: Sink
  • ioLogik E1213 models: Source

I/O Mode

  • DO or pulse output

Current Rating

  • ioLogik E1211/E1212/E1242 models: 200 mA per channel
  • ioLogik E1213 models: 500 mA per channel

Pulse Output Frequency

  • 500 Hz (max.)

Over-Current Protection

  • ioLogik E1211/E1212/E1242 models: 2.6 A per channel @ 25°C
  • ioLogik E1213 models: 1.5 A per channel @ 25°C

Over-Temperature Shutdown

  • 175°C (typical), 150°C (min.)

Over-Voltage Protection

  • 35 VDC

Connector

  • Screw-fastened Euroblock terminal

Type

  • Form A (N.O.) power relay

I/O Mode

  • Relay or pulse output

Pulse Output Frequency

  • 0.3 Hz at rated load (max.)

Contact Current Rating

  • ioLogik E1214/E1214-T models:
    • Resistive load: 5A @ 30 VDC, 250 VAC, 110 VAC

Contact Resistance

  • 100 milli-ohms (max.)

Mechanical Endurance

  • 5,000,000 operations

Electrical Endurance

  • 100,000 operations @ 5 A resistive load

Breakdown Voltage

  • 500 VAC

Initial Insulation Resistance

  • 1,000 mega-ohms (min.) @ 500 VDC

Note

  • Ambient humidity must be non-condensing and remain between 5 and 95%. The relays may malfunction when operating in high condensation environments below 0°C.

Connector

  • Screw-fastened Euroblock terminal

I/O Mode

  • Voltage/Current

I/O Type

  • Differential

Resolution

  • 16 bits

Input Range

  • 0 to 10 VDC
  • 0 to 20 mA
  • 4 to 20 mA
  • 4 to 20 mA (with burn-out detection)

Accuracy

  • ioLogik E1240/E1242:
    • ±0.1% FSR @ 25°C
    • ±0.3% FSR @ -10 to 60°C
  • ioLogik E1240-T/E1242-T:
  • ±0.1% FSR @ 25°C
  • ±0.3% FSR @ -10 to 60°C
  • ±0.5% FSR @ -40 to 75°C

Sampling Rate

  • ioLogik E1240: 12 samples/sec per module (shared between up to 8 channels)
  • ioLogik E1242: 12 samples/sec per module (shared between up to 4 channels)

Built-in Resistor for Current Input

  • 120 ohms

Input Impedance

  • 10 mega-ohms (min.)

Connector

  • Screw-fastened Euroblock terminal

I/O Mode

  • Voltage/Current

Output Range

  • 0 to 10 VDC
  • 0 to 20 mA
  • 4 to 20 mA

Resolution

  • 12-bit

Accuracy

  • ioLogik E1241:
    • ±0.1% FSR @ 25°C
    • ±0.3% FSR @ -10 to 60°C
  • ioLogik E1241-T:
    • ±0.1% FSR @ 25°C
    • ±0.3% FSR @ -40 to 75°C

Load (Current Mode)

  • Internal power: 400 ohms (max.)
  • 24 V external power: 1000 ohms (max.)

Voltage Output Short-Circuit Protection

  • 10 mA

Connector

  • Screw-fastened Euroblock terminal

Sensor Type

  • PT1000 (-200 to 350°C)
  • PT50, PT100, PT200, PT500 (-200 to 850°C)

Resistance Type

  • 310, 620, 1250, and 2200 ohms

Input Connection

  • 2- or 3-wire

Sampling Rate

  • ioLogik E1260: 12 samples/sec per module (shared between up to 6 channels)

Resolution

  • 0.1°C or 0.1 ohms

Accuracy

  • ioLogik E1260:
    • ±0.1% FSR @ 25°C
    • ±0.3% FSR @ -10 to 60°C
  • ioLogik E1260-T:
    • ±0.1% FSR @ 25°C
    • ±0.3% FSR @ -40 to 75°C

Input Impedance

  • 625 kilo-ohms (min.)

Connector

  • Screw-fastened Euroblock terminal

Sensor Type

  • J, K, T, E, R, S, B, N

Millivolt Type

  • ±19.532 mV
  • ±39.062 mV
  • ±78.126 mV
  • Fault and over-voltage protection: -35 to +35 VDC (power off); -25 to +30 VDC (power on)

Resolution

  • 16 bits

Millivolt Accuracy

  • ioLogik E1262:
    • ±0.1% FSR @ 25°C
    • ±0.3% FSR @ -10 to 60°C
  • ioLogik E1262-T:
    • ±0.1% FSR @ 25°C
    • ±0.3% FSR @ -40 to 75°C

TC Accuracy

  • Types J, T, E, S, B: ±5°C
  • Types K, R, N: ±8°C

CJC Accuracy

  • ±0.5°C @ 25°C
  • ±1.5°C @ -40 to 75°C

Sampling Rate

  • ioLogik E1262: 12 samples/sec per module (shared between up to 8 channels)

Input Impedance

  • 10 mega-ohms (min.)

10/100BaseT(X) Ports (RJ45 connector)

  • 2, 1 MAC address (Ethernet bypass)

Magnetic Isolation Protection

  • 1.5 kV (built-in)

Configuration Options

  • Web Console (HTTP)
  • Windows Utility (ioSearch)
  • MCC Tool

Industrial Protocols

  • Modbus TCP Server (Slave)
  • Moxa AOPC (Active Tag)
  • MXIO Library
  • EtherNet/IP Adapter

Management

  • RESTful API
  • SNMPv1/v2c
  • SNMPv1 Trap
  • HTTP
  • DHCP Client
  • BOOTP
  • IPv4
  • TCP/IP
  • UDP

MIB

  • Device Settings MIB

Security

  • Access control list

Authentication

  • Local database

LED Indicators

  • Power, Ready, Port 1, Port 2

Functions Supported

  • 1, 2, 3, 4, 5, 6, 15, 16, 23

Mode

  • Server (Slave)

Max. No. of Client Connections

  • 10

Mode

  • Adapter

Max. No. of Scanner Connections

  • 9 (for read-only), 1 (for read/write)

Power Connector

  • Screw-fastened Euroblock terminal

No. of Power Inputs

  • 1

Input Voltage

  • 12 to 36 VDC

Power Consumption

  • ioLogik E1210 models: 110 mA @ 24 VDC
  • ioLogik E1211 models: 200 mA @ 24 VDC
  • ioLogik E1212 models: 155 mA @ 24 VDC
  • ioLogik E1213 models: 130 mA @ 24 VDC
  • ioLogik E1214 models: 188 mA @ 24 VDC
  • ioLogik E1240 models: 121 mA @ 24 VDC
  • ioLogik E1241 models: 194 mA @ 24 VDC
  • ioLogik E1242 models: 139 mA @ 24 VDC
  • ioLogik E1260 models: 110 mA @ 24 VDC
  • ioLogik E1262 models: 118 mA @ 24 VDC

Housing

  • Plastic

Dimensions

  • 27.8 x 124 x 84 mm (1.09 x 4.88 x 3.31 in)

Weight

  • 200 g (0.44 lb)

Installation

  • DIN-rail mounting
  • Wall mounting

Wiring

  • I/O cable, 16 to 26 AWG
  • Power cable, 12 to 24 AWG

Operating Temperature

  • Standard models: -10 to 60°C (14 to 140°F)
  • Wide temp. models: -40 to 75°C (-40 to 167°F)

Storage Temperature (package included)

  • -40 to 85°C (-40 to 185°F)

Ambient Relative Humidity

  • 5 to 95% (non-condensing)

Altitude

  • 4000 m

EMC

  • EN 55032/24
  • EN 61000-6-2/-6-4

EMI

  • CISPR 32, FCC Part 15B Class A

EMS

  • IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
  • IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m
  • IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV
  • IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV
  • IEC 61000-4-6 CS: 10 V
  • IEC 61000-4-8 PFMF

Hazardous Locations

  • ATEX, Class I Division 2

Safety

  • UL 508

Shock

  • IEC 60068-2-27

Freefall

  • IEC 60068-2-32

Vibration

  • IEC 60068-2-6

Green Product

  • RoHS, CRoHS, WEEE

Time

  • ioLogik E1210 models: 671,345 hrs
  • ioLogik E1211 models: 923,027 hrs
  • ioLogik E1212 models: 561,930 hrs
  • ioLogik E1213 models: 715,256 hrs
  • ioLogik E1214 models: 808,744 hrs
  • ioLogik E1240 models: 474,053 hrs
  • ioLogik E1241 models: 888,656 hrs
  • ioLogik E1242 models: 502,210 hrs
  • ioLogik E1260 models: 660,260 hrs
  • ioLogik E1262 models: 631,418 hrs

Standards

  • Telcordia Standard SR-332

Warranty Period

  • ioLogik E1214: 2 years
  • ioLogik E1210/E1211/E1212/E1213/E1240/E1241/E1242/E1260/E1262: 5 years
