FWA02

Features and Benefits

  • Plug and Play High-speed 5G
  • “Always-on” Connectivity
  • Secure Network Connection
  • Cloud-Managed Networking Solution

Available to Order

Models

  • FWA02

Overview

Shipment Information

Click “WhatsApp Us” or “Get a Quote” above to buy 5G FWA02 Router from APulsar Technologies, InHand official distributor.

Purchase from our office in Petaling Jaya, or order online and enjoy fast delivery across Kuala Lumpur and the entire Malaysia.

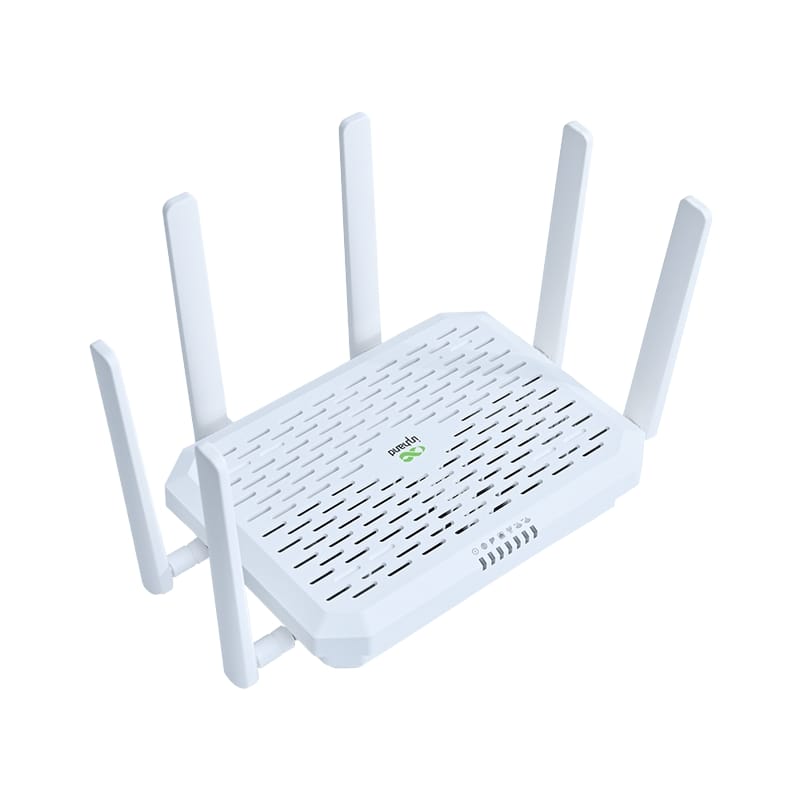

Product introduction

The FWA02 delivers 5G Indoor Cellular connectivity with Wi-Fi 6 support through cloud management. This router provides global 5G access for reliable, secure internet in urban, suburban, remote, or rural locations. Traditional cable and fiber connections can’t match its faster speeds, lower latency, and superior performance. The plug-and-play design lets you focus on business and online activities. Seamless wireless connectivity transforms your network experience.

Plug and Play High-speed 5G

Experience high-speed internet instantly with blazing-fast technology. Download speeds reach up to 4.76Gbps. Upload speeds hit up to 1.25Gbps. The device falls back to high-speed LTE Cat 19 when needed.

“Always-on” Connectivity

Multiple backup features ensure continuous connection. Wired backup provides redundancy. Cellular link failover maintains stability. Dual SIM switching offers flexibility. Optional eSIM adds convenience. These features deliver reliable and robust connectivity for consistent network performance.

Secure Network Connection

Advanced security features protect your connection. Firewall policies control access. Built-in VPN encrypts data transmission. Access control manages user permissions. Enhanced Wi-Fi security guards wireless connections. These tools effectively safeguard network integrity.

Cloud-Managed Networking Solution

The device works with InCloud Manager for seamless cloud management. Monitor distributed sites at scale effortlessly. Real-time network monitoring enhances IT management efficiency. Access management tools from anywhere. This combination unlocks your network’s full potential.

Specifications

Hardware Platform

Stateful Firewall Throughput

  • 2Gbps

Recommended No. of Users

  • 220 (128 Wi-Fi devices)

Ethernet Port

  • 2*2.5 GbE RJ45; WAN/LAN switchable, Dual-LAN

USB

  • 1*Type-C,USB 2.0,Supports HOST and SLAVE modes

SIM

  • 1*eSIM; 2*SIM, Nano SIM slot, Hot plug

Reset

  • Reset button

Power Switch

  • 1*button

Lights

  • System, Cellular, Signal, WAN, LAN, Wi-Fi

Antenna Interface

  • 6*external sub6 antenna, 4*built-in Wi-Fi antenna NATM model(4*external sub6 antenna)

Cellular Rate

  • 5G SA&NSA: 4.76Gbps (DL)/1.25Gbps (UL)
  • 4G CAT19 : 1.6Gbps (DL)/200Mbps (UL)

Antenna Freq. Range

  • 617-5925 MHz
  • 617-894MHz: 2 dBi

Antenna Gain

  • 1700-5000MHz: 4.11 dBi

Radio Frequency

  • 2.4GHz&5.8GHz

Max Transmission Bandwidth

  • 3600Mbps

Transfer Protocol

  • 802.11 ax/ac/b/g/n , Wi-Fi 6

Antenna Freq. Range

  • 2400-2500;5000-5800 MHz

Antenna Gain

  • 2400-2500MHz: 4.17 dBi
  • 5000-5800MHz: 4.56 dBi

InCloud Manager

  • Centralized management platform
  • Simple and intuitive dashboard
  • User-friendly management
  • Batch upgrade and management

Network Access

  • Multiple network access
  • 5G/4G cellular network access
  • ETH network access

Dial-up Service

  • PPPoE
  • Cellular automatic redial
  • Dual SIM switching
  • APN configuration

Smart Link

  • Link backup
  • Packet-by-packet load balancing among multiple links
  • Real-time detection of link delay, jitter, and packet loss
  • Supports link priority adjustment

Dashboard

  • Device information, interface status, and refined traffic

Link Monitoring

  • Link delay, jitter, packet loss, and throughput monitoring

Cellular Signal

  • Real-time view of cellular signal strength, RSSI, RSRP, RSRQ, SINR, etc.

Data Security

  • System logs, diagnostic logs, device events, email alerts

IP Protocol

  • IPv4/IPv6

IP Application

  • VLAN, DHCP server/client, DNS, DDNS, Fixed Address Assignment, IP Passthrough

Wi-Fi

  • 802.11 ax/ac/b/g/n , Wi-Fi 6, AP mode

Policy Management

  • Policy Routing
  • Traffic Shaping

Self Recovery

  • Built-in software and hardware watchdog, self-healing equipment operation failure, to ensure the equipment maintains high availability

VPN

  • IPSec VPN, L2TP VPN

Firewall

  • Access control, port mapping, port forwarding, MAC address filtering
  • Firewall filtering based on MAC, IP, port, and protocol

Remote Access Control

  • Supports Web UI/CLI remote access and control

Connector

  • Remote maintenance of PCs, monitoring equipment, servers, etc.

Network Diagnostics

  • Ping, Traceroute, network packet capture tools, diagnostic logs

Configuration Backup

  • Supports configuration import and export

Power

  • Circular interface, 12V 2A

Power

  • Consumption ≤15W

Installation

  • Wall mounted, desktop mounted

Dimensions & Weight

  • 236 * 172.5 * 58.5 (mm), 2.2lbs
  • 9.29 * 6.79 * 2.3(in)

Working Temperature

  • -10°C to 50°C

Storage Temperature

  • -40°C to 85°C

Humidity

  • 5% to 95% (non-condensing)

Ingress Protection

  • IP20

Shockproof

  • IEC60068-2-27

Vibration

  • Resistance IEC60068-2-6

Free Fall

  • IEC60068-2-32

Certification

  • FCC, IC, PTCRB, Verizon, T-Mobile, CE

Warranty

  • 3 years
