Collaborative Robot Universal Training Platform

Universal platform that supports various robot model

Features and Benefits

  • Rich Functions
  • Easy Operation
  • High Usability

In Stock
WhatsApp Us
Get Quote Get Quote
Download Datasheet Download Datasheet

Models

  • Dobot CR3
  • Magician E6
  • MG400

Overview

How to Buy

Click “WhatsApp Us” or “Get a Quote” above to get Collaborative Robot Universal Training Platform from APulsar Technologies, Dobot Robotics Official Distributor.

Purchase from our office in Petaling Jaya, or order online and enjoy fast delivery across Kuala Lumpur and the entire Malaysia.

Introduction

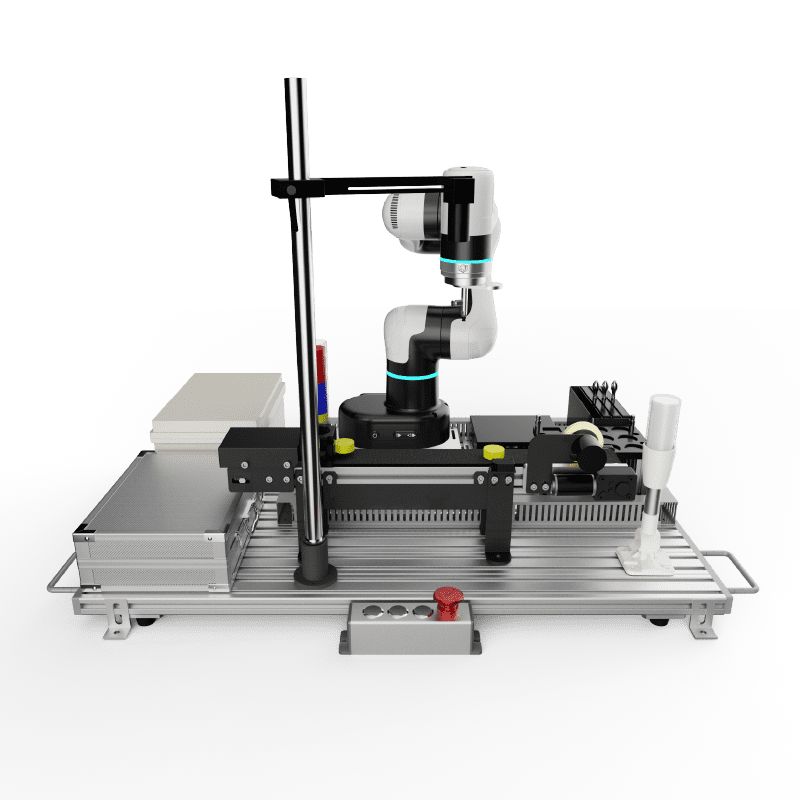

Collaborative Robot Universal Training Platform is a teaching platform for vocational schools and enterprise training which integrates a robots, control system, vision system, conveyor belt and other components. It adopts a modular design and can be combined flexibly and easily for automation simulation, such as object detection, grabbing, handling, palletizing, and assembly, as well as teaching projects such as robot system calibration, trajectory tracking, and communication control, helping students acquire skills related to smart robot systems, and improve practical and innovative capabilities effectively.

Rich Functions

Use the system to teach robotic system calibration, trajectory tracking, communication and more. By combining with the workpiece models, tasks like object tracking, grabbing, inspection, transportation, palletizing and assembly can be carried out.

Easy Operation

By combining lightweight collaborative robot (works with CR3/E6/MG400) and flexible modular units, users can create automation tasks easily.
High Usability
The system covers topics such as robotic system, robotic vision system and optional PLC modular system. Users can deal with the majority of automation tasks after learning. The Conveyor Belt Kit can be used independently with the robotic arm itself.

Specifications

Dobot Robot
  • Works with DOBOT CR3/E6/MG400
  • Includes Industrial  Camera/ Prime Lens/ Light Source/ Camera Stand
  • Includes Conveyor Belt Module/ Feeding Module/ Encoder (can be purchased exclusively)
  • Includes Siemens 1200 Series/ HMI Touch Screen
  • Mini Vacuum Source – Air Pressure Range
  • Function Plate Storage Box – For storing track plat, standard inspection plate and mobile phone model location plate and more
  • Guide Assembly Plate – Include fixed base
  • Button Control Box – Include the start, stop, rest and emergency stop button
  • LED Status Indicator – Includes buzzer, color changes between red, green and yellow
  • Electrical Control Box – Includes electrical parts (For distribution wiring)
  • Tool Box – Includes spare parts, workpieces, suction cup, calibration needle and other tools
  • Aluminum Base – 600 mm * 900 mm
  • Model – DT-BE_R-17
  • Voltage – 100 – 240V AC, 50/60Hz
  • Full Load Current – 5A (MG 400, E6) 10A (CR3)
  • Rated Short Circuit Current – 18A
  • Total Power – Max 500W (MG 400, E6) 800W (CR3)
  • Weight – 30 kg
  • Size – 900 mm x 600 mm x 211mm
  • Box Dimensions – 1118mm x 718mm x 275mm

Mini Vacuum Source

  • Power Consumption – 20W
  • Noise – 65dB
  • Dimensions – 163 mm x 143mm x 53mm
  • Model – DT-BE-R-16
  • Dimensions – 538 ± 8 mm x 115 mm x 180 ± 5mm
  • Voltage – 100 – 240V AC/24V DC
  • Total Power – Max 75W
  • Full Load Current – 3A
  • Operating Load – 3KG
  • Effective Carrying Length – 400mm
  • Rated Speed – 2.25m/min
  • Control Mode – I/O Control
  • Encoder – Incremental Encoder, Resolution Ratio : 1000 P/R, Diameter: 40mm
  • Model – DT-BE-R-15
  • Weight – 3.5 kG
  • Voltage – 24V DCV
  • Total Power – Max 75W
  • Full Load Current – 3A
  • Size – 335mm x 270mm x 235mm

HMI

  • Screen Size – 7.0 inches
  • Resolution: 800 x 480

PLC

  • CPU: 1212C DC/DC/DC
  • Working Storage: 75 kB
  • Loading Storage: – 2 MB
  • High Speed Counter: 4
  • Integrated I/O: DI x 8, DQ x 6, AI x 2
  • Extendibility: Signal Board (SB) x 1, Signal Module (SM) x2 , Communication Module (CM) x3
