Dobot

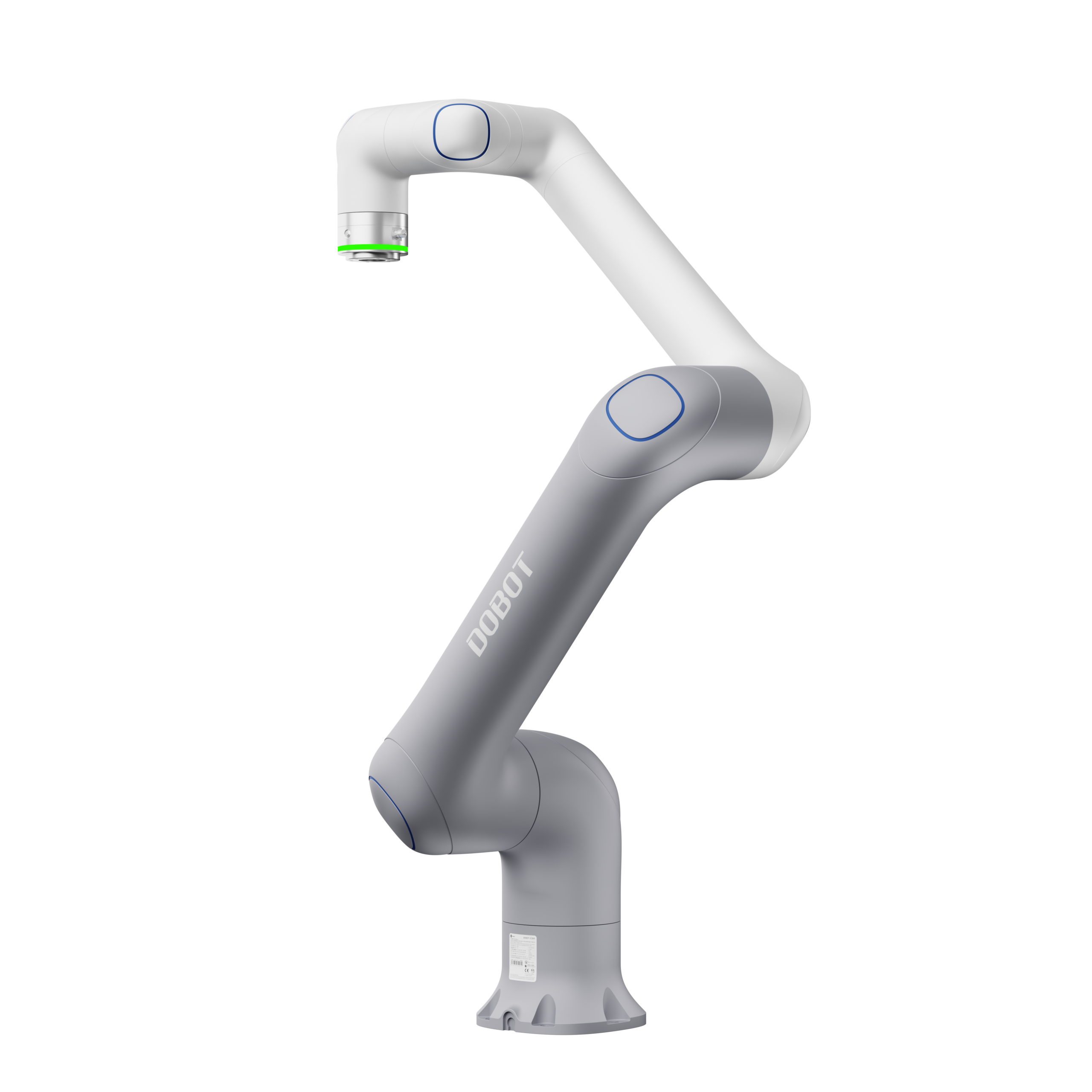

CR 30H Collaborative Robots

Industry’s Fastest 30kg Cobot for Peak Productivity

Features and Benefits

  • High-Speed
  • High-Payload
  • High-Stability

In Stock
WhatsApp Us
Get Quote Get Quote
Download Datasheet Download Datasheet

Models

  • CR30H - Standard Edition
  • CR30HT - Touch Edition
  • Cr30H - Clean Edition

Overview

How to Buy

Click “WhatsApp Us” or “Get a Quote” above to buy Dobot CR30H from APulsar Technologies, Dobot Robotics Official Distributor.

Purchase from our office in Petaling Jaya, or order online and enjoy fast delivery across Kuala Lumpur and the entire Malaysia.

Introduction

Designed for high-end industrial automation that demands superior performance, stability, and efficiency, the CR 30H represents a breakthrough in heavy-duty collaborative robotics. With a record-breaking 300°/s joint speed, the fastest in its class, it shatters productivity barriers by perfectly balancing high payload capacity, blazing speed, and exceptional stability.

Specifications

Robot Body

Product name

  • CR30H

Weight

  • 98.5 Kg

Max. Payload

  • 30 Kg

Workding Radius

  • 1800mm

Joint Motion Range

  • J1/J2/J4/J5/J6 – ±360°
  • J3 – ±163°

Max. Joint Speed

  • J3 – 200°/s
  • J4/J5/J6 – 300°/s

End I/O

  • Power Supply – 0/12/24V, 2A(avg), 3A(max)
  • DI – 4 channel
  • DO – 4 channel
  • RS485 – 1 channel

Repeatability

  • ±0.05mm

IP Rating

  • IP67

Noise Level

  • 70dB(A)

Operating Temp

  • 0~50℃

Mounting

  • Floor/Wall/Ceiling

Cable Length

  • 6 m (Body to Cabinet)

Materials

  • Aluminum Alloy/ABS/Rubber



Dimension

  • 400mm*190mm*400mm

Weight

  • 19kg

Power Supply

  • Single phase 200-240V AC, 50/60Hz

IO Power

  • 24V, 3A(max), 0.5A/channel

General IO interface

  • DI – 24 channels (NPN/PNP)
  • DO – 24 channels (NPN/PNP)
  • AI – 2 channels, 0-10V/4-20mA
  • AO – 2 channels, 0-10V/4-20mA

Safety IO interface

  • SI – 10 channel
  • SO – 10 channel

Remote Power on/off

  • Supported

Connection

  • Network Ports – 2 × Ethernet (TCP/IP, Modbus TCP, Ethernet/IP, Profinet)
  • USB – 2 × WiFi module connection, file import and export
  • RS485 Porta – 1 × (Modbus RTU)
  • Encoder – 1 × ABZ incremental encoder interface

Environment

  • Temperature – 0~50℃
  • Humidity – ≤95%, non-condensing

IP Rating

  • IP20（optional: IP54）

Cooling Methods

  • Fan cooling

Teaching Methods

  • (Teach Pendant/PC/Android App)

Dimension

  • 294mm×184mm×59mm

Weight

  • 1.09kg

IP Rating

  • IP54

Cable Length

  • 4.5m (controller to control cabinet)

Screen Size

  • 10.1 inches

Screen Resolution

  • 1900×1200@60Hz

Screen Type

  • Capacitive screen, multi-point control

Operating System

  • Android

Memory

  • 4GB+32GB

USB Port

  • TypeA×2，TypeA×1

Material

  • PC、ABS
  • 2,000 mm/s
J1 ～ J2 120° /s
J3 150° /s
J4 ～ J6 180° /s
J1/J2/J4/J5/J6 ±360°
J3 ±165°
Power 24V, Rated 2A, Max 3A
Ports 2 connectors, RS485/AI, 2 x DO, 2 x DI
  • ±0.05 mm
  • IP54
  • ≤ 70 dB
  • 0° ～ 50° C
  • Upright
  • 6 m
  • Carbon steel, aluminum alloy, ABS plastic
