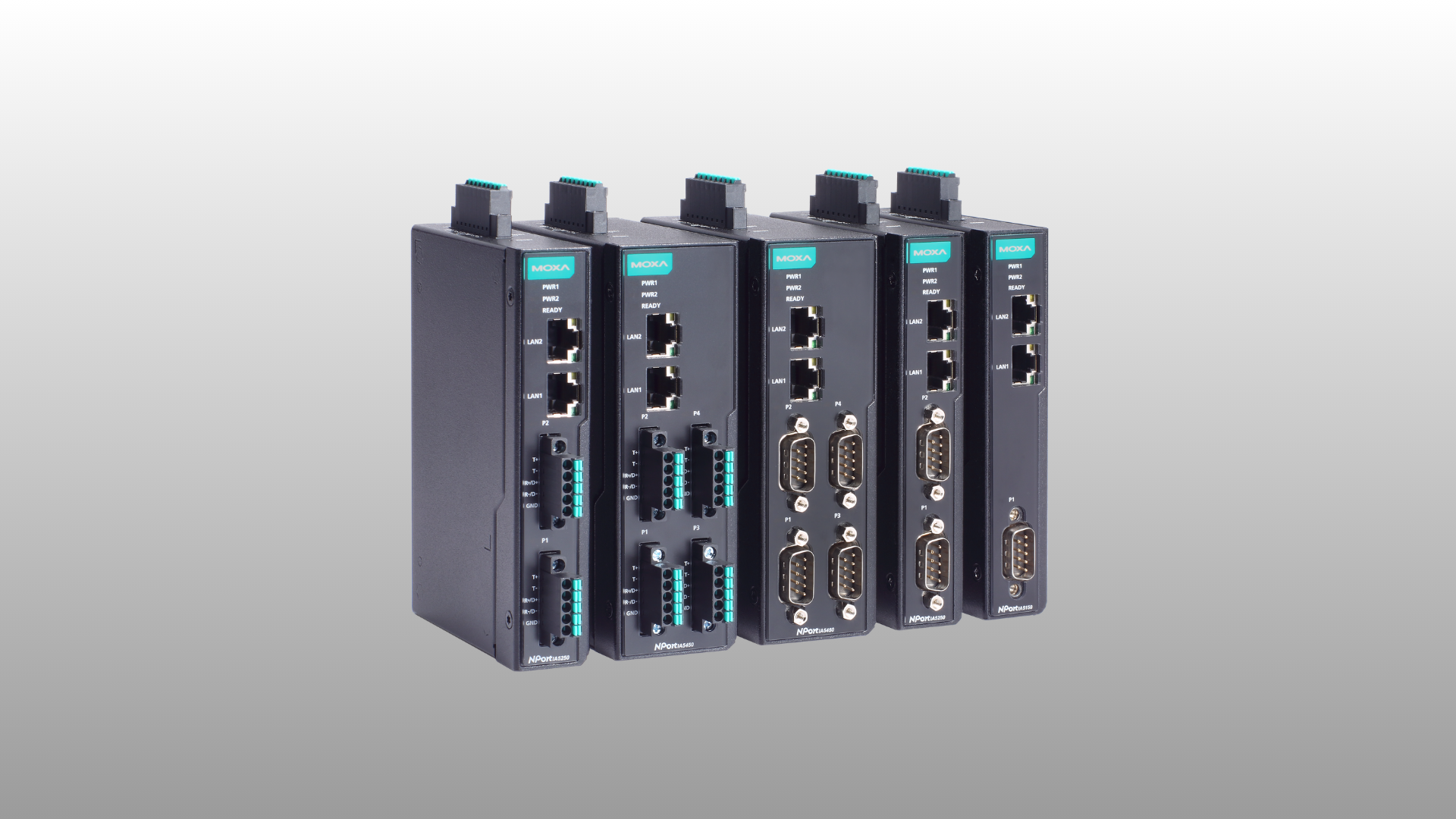

The NPort IA5000-G2 Series is the latest generation of industrial device servers from Moxa, designed to connect serial-based equipment to modern Ethernet networks, allowing essential field hardware such as sensors, motors, and controllers to communicate over a network for better data management and remote access.
As the direct successor to both the original NPort IA5000 Series and the widely adopted NPort IA5000A Series, the G2 brings together the strengths of both into a single, updated product line, giving existing users of either generation a clear and supported path to upgrade.
Beyond connectivity, the G2 series introduces meaningful improvements in three key areas: physical interface options, cybersecurity, and ease of use, reflecting the growing demands of modern industrial environments where both reliability and security are equally important.
NPort IA5000-G2: A Rugged and Reliable Connection Bridge
All NPort servers act as a bridge, converting serial data into a format that can travel over standard network cables, allowing field equipment such as PLCs, sensors, and motors to connect to modern networks.
Retaining the robust metal housing, dual redundant power inputs, and full surge protection across serial, power, and Ethernet connections found in the previous IA5000A generation, the G2 series introduces compliance with the IEC 62443-4-2 SL2 cybersecurity standard, marking a significant step up from earlier generations. It also features a new one-click log collection tool that helps technical teams quickly extract diagnostic data to resolve network issues.
Key Specifications: Built for Performance and Durability
A detailed breakdown of the Gen 2 series technical capabilities.
*Understanding IEC 62443-4-2 Compliance
IEC 62443-4-2 is a globally recognized cybersecurity standard specifically designed for industrial automation and control systems. It establishes strict technical security requirements for network components to defend against cyber threats. In the context of the Gen 2 series, achieving compliance to IEC 62443-4-2 means the device is fortified with advanced access controls, secure password management, and encrypted data transmission. For facility operators, this guarantees that the serial-to-Ethernet bridge will not act as a vulnerability, actively protecting critical field data—such as motor controls or sensor readings—from unauthorized access and malicious network
NPort IA5000-G2 vs Gen 1
The primary benefit of the Gen 2 series lies in its unified design. It eliminates the dilemma of choosing between two separate legacy lines by merging the core physical strengths of both the IA5000 and IA5000A into one platform, enhanced with value-added features for modern security and troubleshooting.
NPort IA5000 vs NPort IA5000A vs NPort IA5000-G2 Comparison Table
*The Role of Hardware-Based Secure Boot
Secure Boot is a foundational defence mechanism that protects a device from the exact moment it powers on by cryptographically verifying the integrity of the system’s firmware before execution. When a Gen 2 device is powered up, its hardware support for Secure Boot checks the firmware signature against an unalterable key embedded directly in the hardware. If the software has been tampered with or replaced by unauthorized malicious code, the boot process is immediately halted. This prevents any compromised hardware from ever establishing a connection to the wider industrial network, ensuring a strictly secure operational baseline.
**The Role of TRNG (True Random Number Generator)
The TRNG ensures the generation of completely unpredictable cryptographic keys, preventing hackers from guessing encryption patterns.
Real-World Applications for NPort IA5000-G2
While the technical specifications tell us what the NPort IA5000-G2 series is capable of, its true value becomes clear when you look at how it solves physical networking problems out in the field. Here is a look at how these devices are actively deployed to keep essential operations running safely and efficiently:
- Manufacturing Plants: Connecting barcode readers and operator displays to a central monitoring system for streamlined production management.
- Oil and Gas Facilities: Deploying surge-protected models to keep equipment running safely in environments prone to electrical spikes and interference.
- Power Automation: Maintaining reliable communication for meters and motors in areas with high levels of electrical noise.
- Hazardous Environments: Using fiber optic models to eliminate the risk of sparks and protect against ground voltage differences, making them a safer choice where flammable materials are present.
- Remote Monitoring: Giving engineers the ability to access and manage legacy machines and sensors from a central office without being on-site.
Summary: The New Standard for Industrial Reliability
The NPort IA5000-G2 series builds on the solid foundation already established by the NPort IA5000A series, which had already introduced metal housing and high-speed data communication to the product line.
What the G2 brings forward is a meaningful step up in cybersecurity and ease of maintenance. The addition of IEC 62443-4-2 compliance, advanced data encryption, and a one-click log collection tool addresses the growing need for better security and faster troubleshooting in modern industrial settings.
For facilities looking to modernize their operations while meeting today’s security standards, the G2 series offers a well-rounded and reliable upgrade path.
For more information about Moxa NPort IA5000-G2 series, please click here.
