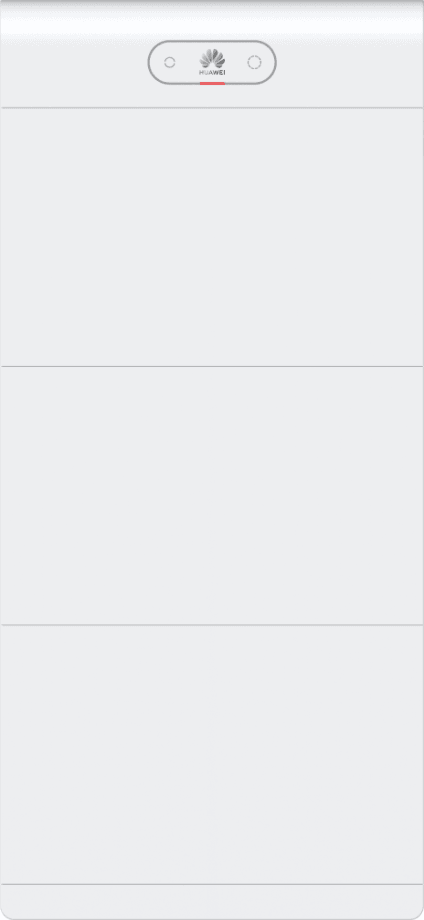

LUNA2000-5/7/10/12/14/15/17/19/21-S1

Features and Benefits

  • 5 kWh to 21 kWh, Easy Expand
  • Smoothest curve, Staunchest Strength
  • Wider Operating Temperature Range
  • 5-layer of protection
  • Fast charge and discharge

Available to Order

Models

  • LUNA2000-5/7/10/12/14/15/17/19/21-S1

Overview

How to Buy

Click “WhatsApp Us” or “Get a Quote” above to buy SUN2000-3/4/5/6/8/10KTL-M1 (High Current Version) from APulsar Technologies, Huawei Partner in Malaysia

Purchase walk-in from our office in Petaling Jaya. Or order online and enjoy fast delivery across Kuala Lumpur and the entire Malaysia.

Introduction

5 kWh Pack, Welcome to join the S1 family

The S1 family just became stronger. With the new 5 kWh battery, you can now flexibly combine 5 and 7 kWh packs to unlock up to 9 capacity options, from 5 to 21 kWh. Compact yet powerful, it adapts to your lifestyle today and scales with your energy needs tomorrow—making smart living more flexible and affordable than ever.

More Energy, Shines for Longer
The Module+ Architecture enables LUNA S1 to adopt the built-in energy optimizer, improving more than 40% energy throughput* and extending warranty to up to 15 years**. Module-level optimization ensures plug-and-play capacity expansion. Each new battery is always ready to go without the need of pre-charge or SOC calibration.

Charge and Discharge, Faster than You’ve Ever Expected
Independent module-level management enables fast charge and discharge at 3.5 kW for each battery module and the maximum input and output power of 10.5 kW for each energy storage system. The upgrade is from performance to efficiency.





Specifications

Performance

Power module

  • LUNA2000-10KW-C1

Battery module

  • LUNA2000-5-E1 / LUNA2000-7-E1

Battery module energy

  • LUNA2000-5-E1: 5 kWh / LUNA2000-7-E1: 6.9 kWh

Number of power modules

  • 1

Number of battery modules

  • 1(5)
  • 1(7)
  • 2(5+5)
  • 2(5+7)
  • 2(7+7)
  • 3(5+5+5)
  • 3(5+5+7)
  • 3(5+7+7)
  • 3(7+7+7)
Battery usable energy 1
  • 5 kWh
  • 6.9 kWh
  • 10 kWh
  • 11.9 kWh
  • 13.8 kWh
  • 15 kWh
  • 16.9 kWh
  • 18.8 kWh
  • 20.7 kWh
Max. charging & discharging power
  • 3.5 kW
  • 7 kW
  • 10.5 kW

Operating voltage range (single-phase system)

  • 350 – 560 V

Operating voltage range (three phase system)

  • 600 – 980 V

Display

  • SOC status indicator, LED indicator

Communication2

  • RS485 / FE / CAN

LUNA2000-7-14-21-S1LUNA2000-7-14-21-S1LUNA2000-7-14-21-S1

Dimension (W x D x H)

  • 590 mm x 255 mm x 510 mm
  • 590 mm x 255 mm x 870 mm
  • 590 mm x 255 mm x 1230 mm

Weight (Floor stand toolkit included)

  • 80 kg
  • 148 kg
  • 216 kg
Power module dimensions (W x D x H)
  • 590 mm x 255 mm x 150 mm

Power module weight

  • 10 kg

Battery module dimensions (W x D x H)

  • 590 mm x 255 mm x 360 mm

Battery module weight3

  • 68 kg

Installation

  • Floor stand (standard), Wall mount (optional)

Operating temperature4

  • –20°C to +55°C (–4°F to +131°F)

Max. operating altitude5

  • 4,000 m (13,123 ft.) (Derated above 2,000 m)

Environment6

  • Outdoor / Indoor

Relative humidity

  • 5% ~ 95%

Cooling

  • Natural convection

IP rating

  • IP66

Noise emission

  • < 29 dB7

Cell technology

  • Lithium-iron phosphate (LiFePO4)

Scalability8

  • Max.4 systems in parallel operation

Compatible inverters

  • SUN2000-2/3/3.68/4/4.6/5/6KTL-L1, SUN2000-3/3.68/4/4.6/5/6K-LB0, SUN2000-8/10K-LC0, SUN2000-3/4/5/6/8/10KTL-M1, SUN2000-5/6/8/10/12K-MAP0, SUN2000-12/15/17/20/25K-MB0, SUN5000-8/12K-MAP0, SUN5000-17/25K-MB0, SUN5000-3/6K-LB0



  • CE, RCM, CEC, VDE2510-50, IEC62619, UN38.3, ISO13849, REACH, RoHS
  • Ordering and Deliverable Part
  • Dimensions (W x H x D) – 1,048 x 732 x 395 mm
    Weight (with mounting plate) –  ≤ 112 kg
    Operating temperature range
    -25 °C ~ 60 °C
  • Standards compliance – IEC 62109-1/-2, IEC 62920, IEC 60947-2, EN 50549-2, IEC 61683, etc.

DC MBUS compatible optimizer

  • SUN2000-450W-P2, SUN2000-600W-P

Safety

  • EN/IEC 62109-1, EN/IEC 62109-2, IEC 62116

Grid connection standards

  • G98, G99, EN 50438, CEI 0-21, VDE-AR-N-4105, AS 4777, C10/11, ABNT, UTE C15-712, RD 1699, TOR D4, NRS 097-2-1, IEC61727, IEC62116, DEWA
