MAT-WDB-DA-RM-2-0203-1m Series

Features and Benefits

  • Small size for easy installation
  • Desktop mount
  • RP-SMA-type (male) connector
WhatsApp Us
Get Quote Get Quote
Download Datasheet Download Datasheet

Models

  • MAT-WDB-DA-RM-2-0203-1m

Overview

How to Buy

Click “WhatsApp Us” or “Get a Quote” above to buy MAT-WDB-DA-RM-2-0203-1m from APulsar Technologies, MOXA official distributor.

Purchase walk-in from our office in Petaling Jaya, or order online and enjoy fast delivery across Kuala Lumpur and the entire Malaysia.

Introduction

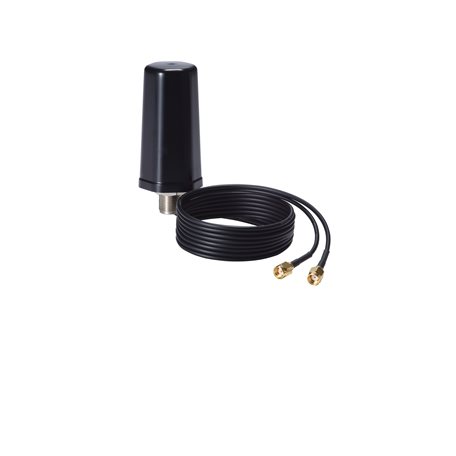

The MAT-WDB-DA-RM-2-0203-1m antenna is a compact MIMO 2×2 dual-band desktop antenna with a RP-SMA-type (male) connector. The antenna can be used in both the 2.4 GHz and 5 GHz frequencies, provides an antenna gain of 2/3 dBi, and comes with a 1-m cable.

Specifications

Antenna Characteristics

Frequency

  • 2.4 to 2.5, 4.9 to 5.85 GHz

Antenna Type

  • MIMO 2×2
  • Omni-directional

Typical Antenna Gain

  • 2/3 dBi

Connector

  • RP-SMA (male)

Impedance

  • 50 ohms

Polarization

  • Linear
  • Vertical

HPBW/Horizontal

  • 360/114°

HPBW/Vertical

  • 75/54°

V.S.W.R.

  • 2:1 max.

Power Handling

  • 2 W (max.)

Weight

  • 156 g (0.34 lb)

Length (including RF cable)

  • 1094.3 mm (43.08 in)

IP Rating

  • IP55

Radome Color

  • Black

Radome Material

  • PC-1250G

Installation

  • Desktop Mount

Cable

  • RG-174

Cable Length

  • 1 m

Operating Temperature

  • -40 to 75°C (-40 to 167°F)

Storage Temperature (package included)

  • -40 to 75°C (-40 to 167°F)

Ambient Relative Humidity

  • 5 to 95% (30°C, non-condensing)

Warranty Period

  • 1 year
