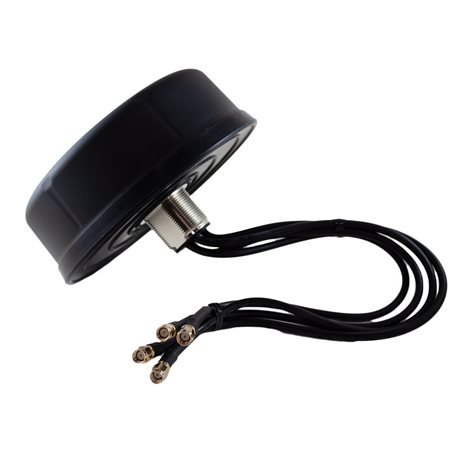

MAT-5G-PA-SM-4-05-1m Series

Features and Benefits

  • Supports all global sub-6 5G bands
  • High-gain antenna to enhance performance
  • 4-in-1 LTE combination design
  • Flexible installation
  • 1-meter cable
  • SMA connector (male) supported
WhatsApp Us
Get Quote Get Quote
Download Datasheet Download Datasheet

Models

  • MAT-5G-PA-SM-4-05-1m

Overview

How to Buy

Click “WhatsApp Us” or “Get a Quote” above to buy MAT-5G-PA-SM-4-05-1m from APulsar Technologies, MOXA official distributor.

Purchase walk-in from our office in Petaling Jaya, or order online and enjoy fast delivery across Kuala Lumpur and the entire Malaysia.

Introduction

The MAT-5G-PA-SM-4-05-1m Series is a 4-in-1 panel antenna suitable for LTE and sub–6 5G NR bands. The antenna provides a gain of 5 dBi and is designed to operate in temperatures ranging from -30 to 70°C.

Specifications

Antenna Characteristics

Frequency

  • 698 to 960, 1710 to 2700, 3300 to 5925 MHz

Antenna Type

  • Panel

Typical Antenna Gain

  • 3 dBi @ 698 to 960 MHz
  • 4 dBi @ 1710 to 2700 MHz
  • 5 dBi @ 3300 to 5925 MHz

Connector

  • SMA (male)

Impedance

  • 50 ohms

Polarization

  • Linear
  • Vertical

Dimensions

  • φ 141.3 x 50 mm (φ 5.56 x 1.97 in)

Radome Color

  • Black

Radome Material

  • Plastic

Installation

  • Pole mount
  • Screw mount

Cable

  • J195

Cable Length

  • 1 m

IP Rating

  • IP67

Operating Temperature

  • -30 to 70°C (-22 to 158°F)

Storage Temperature

  • -40 to 85°C (-40 to 185°F)

Ambient Relative Humidity

  • 5 to 95% (30°C, non-condensing)

Warranty Period

  • 1 year
