Introduction

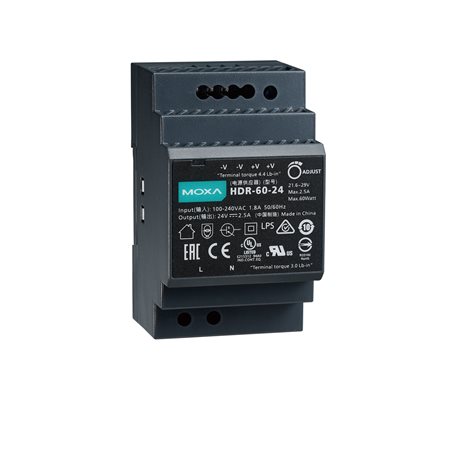

The HDR-60-24 Power Supply Series has been specifically designed for industrial applications. The small form factor makes it ideal for installation in limited spaces, and the devices have been built to operate between -30 to 70°C. The devices have a plastic housing and support AC input ranges from 85 to 264 VAC and conform to the EN 61000-3-2 standard, which the European Union uses to regulate harmonic current. Furthermore, the devices are equipped with constant current mode for overload protection.
Specifications
Output Power Parameters
Wattage
60 W
Voltage
24 VDC
Current Rating
0 to 2.5 A
Ripple and Noise
150 mVp-p
Voltage Adjustment Range
21.6 to 29 VDC
Setup/Rise Time at Full Load
500 ms, 50 ms at 230 VAC
500 ms, 50 ms at 115 VAC
Typical Hold Up Time at Full Load
30 ms at 230 VAC
12 ms at 115 VAC
Input Power Parameters
Voltage Range
100 to 240 VAC (50 to 60 Hz)
120 to 370 VDC
Typical Efficiency
90%
Typical Current
0.8 A @ 230 VAC, 1.2 A @ 115 VAC
Inrush Current (cold start)
60 A @ 230 VAC, 30 A @ 115 VAC
Overload Protection
Rated Output Power
105 to 160%
Protection Type
Constant current limiting, recovers automatically after fault condition is removed
Overvoltage Protection
Overvoltage Range
30 to 36 V
Protection Type
Shut down operating voltage, repower on to recover
Physical Characteristics
Housing
Plastic
Dimensions
52.5 x 90 x 54.5 mm (2.07 x 3.54 x 2.15 in)
Weight
230 g (0.5 lb)
Environmental Limits
Operating Temperature
-30 to 70°C (-22 to 158°F)
Max. Operating Temperature at Full Load
45°C (113°F)
Storage Temperature (package included)
-40 to 85°C (-40 to 185°F)
Ambient Relative Humidity
20 to 90% (non-condensing)
Standards and Certifications
Safety
UL 508
EN 62368-1
UL 62368-1
IEC 62368-1
EMC
EN 55032/35
EN 61000-3-2 Class A
EN 61000-3-3
EN IEC 61204-3
EN IEC 61000-6-2
EMS
IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m
IEC 61000-4-4 EFT: Power: 2 kV
IEC 61000-4-5 Surge: Power: 4 kV
IEC 61000-4-6 CS: 0.15 kHz to 80 MHz: 10 Vrms
IEC 61000-4-8 PFMF: 30 A/m
IEC 61000-4-11
MTBF
Time
927,560 hrs
Standards
MIL-HDBK-217F
Warranty
Warranty Period
3 years
