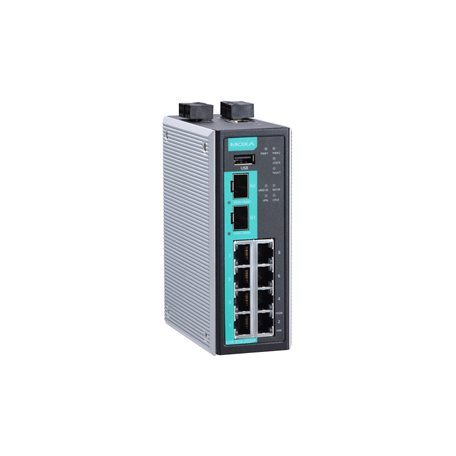

EDR-810 Series

8 10/100BaseT(X) copper + 2 GbE SFP multiport industrial secure routers

Features and Benefits

  • 8+2G all-in-one firewall/NAT/VPN/router/switch
  • Secure remote access tunnel with VPN
  • Stateful firewall protects critical assets
  • Inspect industrial protocols with PacketGuard technology
  • Easy network setup with Network Address Translation (NAT)
  • RSTP/Turbo Ring redundant protocol enhances network redundancy
  • Compliant with the IEC 61162-460 marine cybersecurity standard
  • Check firewall settings with the intelligent SettingCheck feature
  • -40 to 75°C operating temperature range (-T model)

Available to Order
WhatsApp Us
Get Quote Get Quote
Download Datasheet Download Datasheet

Models

  • EDR-810-VPN-2GSFP
  • EDR-810-2GSFP-T
  • EDR-810-VPN-2GSFP-T
  • EDR-810-2GSFP

Overview

How to Buy

Click “WhatsApp Us” or “Get a Quote” above to buy EDR-810 from APulsar Technologies, MOXA official distributor.

Purchase walk-in from our office in Petaling Jaya, or order online and enjoy fast delivery across Kuala Lumpur and the entire Malaysia.

This product has been phased out, and has been replaced by the EDR-8010 Series.



Specifications

Input/Output Interface

Alarm Contact Channels

  • Resistive load: 1 A @ 24 VDC

Buttons

  • Reset button

Digital Input Channels

  • +13 to +30 V for state 1
  • -30 to +3 V for state 0
  • Max. input current: 8 mA

10/100BaseT(X) Ports (RJ45 connector)

  • 8

100/1000BaseSFP Slots

  • 2

Standards

  • IEEE 802.1Q for VLAN Tagging
  • IEEE 802.3 for 10BaseT
  • IEEE 802.3ab for 1000BaseT(X)
  • Static Port Trunk
  • IEEE 802.3u for 100BaseT(X)
  • IEEE 802.3x for flow control
  • IEEE 802.3z for 1000BaseSX/LX/LHX/ZX

Broadcast Forwarding

  • IP directed broadcast, broadcast forwarding

Management

  • Back Pressure Flow Control
  • DDNS
  • DHCP Server/Client
  • Web Console (HTTP/HTTPS)
  • LLDP
  • QoS/CoS/ToS
  • SNMPv1/v2c/v3
  • Telnet
  • TFTP

Multicast Routing

  • DVMRP
  • PIM-SM
  • PIM-SSM

Redundancy Protocols

  • RSTP
  • STP
  • Turbo Ring v2

Routing

  • Throughput: 10,000 packets per second (max. 100 Mbps)

Routing Redundancy

  • VRRP

Security

  • All models: HTTPS/SSL, SSH, L2TP (server), RADIUS
  • EDR-810-VPN-2GSFP Series: HTTPS/SSL, SSH, IPsec, OpenVPN (client and server), UDP and TCP Tunnel mode (routing) and TAP mode (bridge), L2TP (server), RADIUS
  • L2TP (server)
  • RADIUS

Time Management

  • NTP Server/Client
  • SNTP

Unicast Routing

  • OSPF
  • RIPV1/V2
  • Static Route

Filter

  • IGMP v1/v2/v3

VLAN ID Range

  • VID 1 to 4094

IGMP Groups

  • 256

Max. No. of VLANs

  • 16

LED Indicators

  • STATE, PWR1, PWR2, FAULT, 10/100/1000M

Technology

  • ARP-Flood
  • FIN Scan
  • ICMP-Death
  • NEWWithout-SYN Scan
  • NMAP-ID Scan
  • NMAP-Xmas Scan
  • Null Scan
  • SYN/FIN Scan
  • SYN/RST Scan
  • SYN-Flood
  • Xmas Scan

Deep Packet Inspection

  • Modbus TCP
  • Modbus UDP

Filter

  • DDoS
  • Ethernet protocols
  • ICMP
  • IP address
  • MAC address
  • Ports

Quick Automation Profiles

  • DNP
  • EtherCAT
  • EtherNet/IP
  • FOUNDATION Fieldbus
  • FTP
  • HTTP
  • IEC 60870-104
  • IPsec
  • L2TP
  • LonWorks
  • Modbus TCP
  • PPTP
  • PROFINET
  • RADIUS
  • SSH
  • Telnet

Stateful Inspection

  • Router firewall
  • Transparent (bridge) firewall

Throughput

  • Max. 10,000 packets per second (max. 100 Mbps)

Authentication

  • EDR-810-VPN-2GSFP Series: MD5 and SHA (SHA-256), RSA (key size: 1024-bit, 2048-bit), X.509 v3 certificate

Concurrent VPN Tunnels

  • EDR-810-VPN-2GSFP Series: Max. 10 IPsec VPN tunnels

Encryption

  • EDR-810-VPN-2GSFP Series: DES, 3DES, AES-128, AES-192, AES-256

Protocols

  • EDR-810-VPN-2GSFP Series: IPsec, L2TP (server), PPTP (client)

Throughput

  • EDR-810-VPN-2GSFP Series: Max. 17 Mbps (Conditions: AES-256, SHA-256)

Features

  • 1-to-1
  • N-to-1
  • Port forwarding

Authentication

  • EDR-810-VPN-2GSFP Series: User password by MD5 and SHA1

Concurrent VPN Tunnels

EDR-810-VPN-2GSFP Series:

  • Client Mode: max. 2 external servers
  • Server Mode: max. 5 external clients

Encryption

  • EDR-810-VPN-2GSFP Series: AES-128/192/256 CBC, Blowfish CBC, DES CBC, DES-EDE3 CBC

Protocols

EDR-810-VPN-2GSFP Series:

  • OpenVPN (client and server), UDP, and TCP
  • Tunnel mode (routing) and TAP mode (bridge)

Throughput

  • EDR-810-VPN-2GSFP Series: Max. 5 Mbps

Event Type

  • All models: Firewall event
  • EDR-810-VPN-2GSFP Series: VPN event

Media

  • Local storage
  • SNMP Trap
  • Syslog server

Console Port

  • RS-232 (TxD, RxD, GND), 3-pin (115200, n, 8, 1)

Connection



Removable terminal block

Input Voltage

  • 12 to 48 VDC

Input Current

  • 0.706 A @ 12 VDC, 0.353 A @ 24 VDC, 0.187 A @ 48 VDC

Reverse Polarity Protection

  • Supported

Housing

  • Metal

Dimensions

  • 53.6 x 135 x 105 mm (2.11 x 5.31 x 4.13 in)

Weight

  • 830 g (2.10 lb)

Installation

  • DIN-rail mounting
  • Wall mounting (with optional kit)

Operating Temperature

  • Standard Models: -10 to 60°C (14 to 140°F)
  • Wide Temp. Models: -40 to 75°C (-40 to 167°F)

Storage Temperature (package included)

  • -40 to 85°C (-40 to 185°F)

Ambient Relative Humidity

  • 5 to 95% (non-condensing)

Safety

  • UL 508

EMC

  • EN 55032/24

EMI

  • CISPR 32, FCC Part 15B Class A

EMS

  • IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV
  • IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m
  • IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV
  • IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV
  • IEC 61000-4-6 CS: 10 V
  • IEC 61000-4-8 PFMF

Hazardous Locations

  • ATEX
  • Class I Division 2

Maritime

  • DNV

Traffic Control

  • NEMA TS2

Railway

  • EN 50121-4

Shock

  • IEC 60068-2-27

Freefall

  • IEC 60068-2-32

Vibration

  • IEC 60068-2-6

Industrial Cybersecurity

  • IEC 61162-460

Time

  • 981,954 hrs

Standards

  • Telcordia (Bellcore), GB

Warranty Period

  • 5 years
