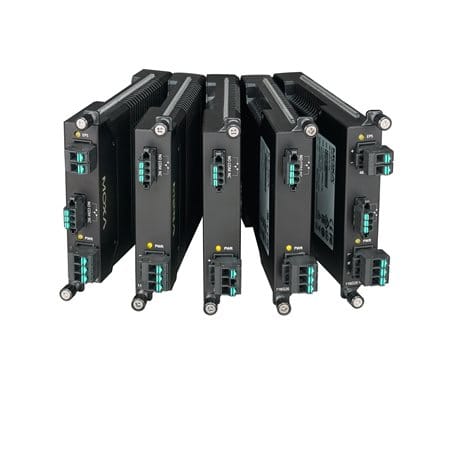

PWR Power Module Series

Features and Benefits

-40 to 85°C wide operating temperature
IEC 61850-3 and IEEE 1613 compliant

Get Quote Get Quote

Download Datasheet Download Datasheet

Models

PWR-LV-P48
PWR-LV-NP
PWR-HV-P48
PWR-HV-NP

Overview

How to Buy

Click “WhatsApp Us” or “Get a Quote” above to buy PWR Power Module Series from APulsar Technologies, MOXA official distributor.

In stock. Purchase walk-in from our office in Petaling Jaya, or order online and enjoy fast delivery across Kuala Lumpur and the entire Malaysia.

Introduction

The PWR Power Module Series hot-swappable power modules are designed for Moxa switches. The power modules allow supported switches to use 24/48 VDC or 110/220 VAC/VDC.

Specifications

Power Parameters

Input Voltage

PWR-HV-P48:
110/220 VDC/VAC for the switch system
48 VDC for PoE systems
(53 to 57 VDC is recommended for PoE+ devices)
PWR-LV-P48:
24/48 VDC for the switch system
48 VDC for PoE systems
(53 to 57 VDC is recommended for PoE+ devices)
PWR-HV-NP:
110/220 VDC/VAC for the switch system
PWR-LV-NP:
24/48 VDC for the switch system

Operating Voltage

PWR-HV-P48:
88 to 300 VDC, 90 to 264 VAC for the switch system
46 to 57 VDC for PoE systems
PWR-LV-P48:
18 to 72 VDC for the switch system
46 to 57 VDC for PoE systems
PWR-HV-NP:
88 to 300 VDC, 90 to 264 VAC for the switch system
PWR-LV-NP:
18 to 72 VDC for the switch system

Reverse Polarity Protection

Supported

Alarm Contact Channels

1 relay output with current carrying capacity of 2 A @ 30 VDC or 0.5 A @ 125 VAC

Physical Characteristics

Weight

PWR-HV-P48: 360 g (0.79 lb)
PWR-LV-P48: 360 g (0.79 lb)
PWR-HV-NP: 340 g (0.75 lb)
PWR-LV-NP: 340 g (0.75 lb)

MTBF

Time

PWR-HV-P48: 1,530,831 hrs
PWR-LV-P48: 1,388,747 hrs
PWR-HV-NP: 2,556,214 hrs
PWR-LV-NP: 2,710,293 hrs

Standards

Telcordia (Bellcore), GB

Warranty

Warranty Period

5 years
