PWR-A Power Module Series

Features and Benefits

-40 to 85°C wide operating temperature
IEC 61850-3 and IEEE 1613 compliant

Get Quote Get Quote

Download Datasheet Download Datasheet

Models

PWR-LV-P48-A
PWR-HV-P48-A

Overview

How to Buy

Click “WhatsApp Us” or “Get a Quote” above to buy PWR-A Power Module Series from APulsar Technologies, MOXA official distributor.

Purchase walk-in from our office in Petaling Jaya, or order online and enjoy fast delivery across Kuala Lumpur and the entire Malaysia.

Introduction

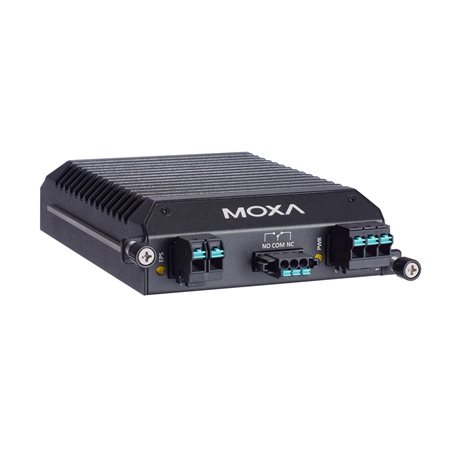

The PWR-A Power Module Series hot-swappable power modules are designed for Moxa switches. The power modules allow supported switches to use 24/48 VDC, 110/220 VAC/VDC, or 48 VDC for PoE systems.

Specifications

Power Parameters

Input Voltage

PWR-HV-P48–A:

110/220 VDC/VAC for the switch system
48 VDC for PoE systems
(53 to 57 VDC is recommended for PoE+ devices)

PWR-LV-P48–A:

24/48 VDC for the switch system
48 VDC for PoE systems
(53 to 57 VDC is recommended for PoE+ devices)

Operating Voltage

PWR-HV-P48-A:

88 to 300 VDC, 90 to 264 VAC for the switch system
46 to 57 VDC for PoE systems

PWR-LV-P48-A:

18 to 72 VDC for the switch system
46 to 57 VDC for PoE systems

Reverse Polarity Protection

Supported

Alarm Contact Channels

1 relay output with current carrying capacity of 2 A @ 30 VDC or 0.5 A @ 125 VAC

Physical Characteristics

Weight

PWR-HV-P48-A: 420 g (0.93 lb)
PWR-LV-P48-A: 400 g (0.88 lb)

MTBF

Time

PWR-HV-P48-A: 1,530,831 hrs
PWR-LV-P48-A: 1,388,747 hrs

Standards

Telcordia (Bellcore), GB

Warranty

Warranty Period

5 years

Details

See www.moxa.com/warranty

Available Models

PWR-LV-P48-A
PWR-HV-P48-A
