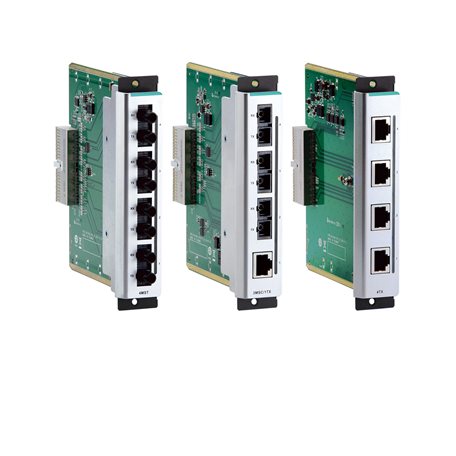

The CM-600 Module Series has been designed for use with the EDS-600 Series. The CM-600 Series has a compact modular design with one slot that accommodates 4 ports, which support multiple media types including TX, MSC, SSC, and MST. The modular design ensures that the EDS-600 Series can meet multiple application requirements.
| 100BaseFX | ||||
| Multi-Mode | Single-Mode | |||
| Fiber Cable Type | OM1 | 50/125 µm | G.652 | |
| 800 MHz x km | ||||
| Typical Distance | 4 km | 5 km | 40 km | |
| Wavelength | Typical (nm) | 1300 | 1310 | |
| TX Range (nm) | 1260 to 1360 | 1280 to 1340 | ||
| RX Range (nm) | 1100 to 1600 | 1100 to 1600 | ||
| Optical Power | TX Range (dBm) | -10 to -20 | 0 to -5 | |
| RX Range (dBm) | -3 to -32 | -3 to -34 | ||
| Link Budget (dB) | 12 | 29 | ||
| Dispersion Penalty (dB) | 3 | 1 | ||
| Note: When connecting a single-mode fiber transceiver, we recommend using an attenuator to prevent damage caused by excessive optical power. Note: Compute the “typical distance” of a specific fiber transceiver as follows: Link budget (dB) > dispersion penalty (dB) + total link loss (dB). |
||||
