Product introduction

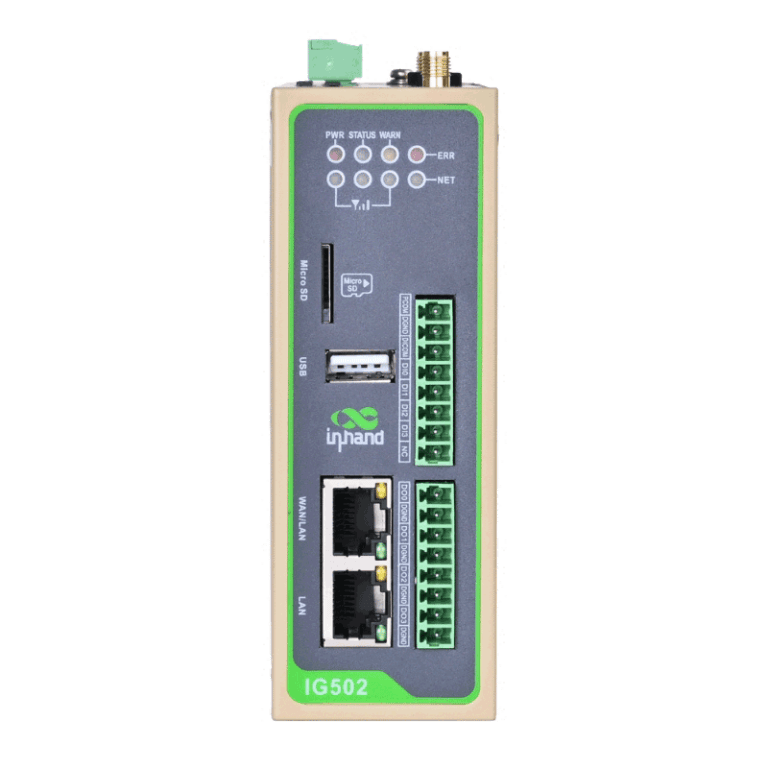

InGateway502 (referred to as IG502) is a cost-effective edge gateway launched by Inhand for the industrial Internet of Things. The IG502 is small in size and rich in interfaces for convenient global cellular access. Support users to use Python secondary development, built-in DeviceSupervisor™ Agent service, support hundreds of communication protocols, easy to achieve device data acquisition, processing and cloud, while supporting DeviceLive cloud management, to help enterprises speed up the digital process.

Performance and Platform

• High-performance ARM Cortex-A8 processor, 600MHz
• High capacity DDR3 RAM up to 512MB and 8GB eMMC Flash
• Gives the cellular gateway powerful edge computing capability, providing computing resources for data optimization, real-time response, agile connection, and intelligent analysis on edge nodes.

 Rich interface

• 2x 10/100Mbps ethernet interface
• 1x RS-232/RS-485+1x RS-485
• 1x USB2.0
• 1x MicroSD
• 4x DI+4x DO, optional
• GPS, WIFI and Bluetooth optional

Stable communication

• 4G/Wi-Fi/FE, etc
• Wired, cellular, Wi-Fi mutual backup, dual SIM failover
• Independent hardware and software watchdog
• Multilevel link detection, communication self-healing

Industrial-grade, ready for harsh industrial environments

• Operating temperatures up to -20 °C~ 70 °C, supports +12 ~ 48VDC wide voltage power inputs, protection rating IP30, providing stable and secure network communications for demanding unattended industrial sites

DeviceSupervisor™ Agent Service

• “Zero code/Low code” easy to achieve data acquisition on the cloud
• Integrate 80+ mainstream data acquisition protocols
• Support data preprocessing
• Integrated data publishing services, public cloud, private cloud, local SCADA and other seamless access

InHand DeviceLive Cloud Manager

• Supports device remote access
• Supports remote batch management of devices
• Supports DSA remote management
• Supports remote user terminal management
