UPort 2210/2410 Series

Features and Benefits

  • Hi-Speed USB 2.0 for up to 480 Mbps USB data transmission rates
  • 921.6 kbps maximum baudrate for fast data transmission
  • Drivers provided for Windows and Linux
  • Driver support for MAC OS
  • Supports fixed-base COM Utility for setting the initial extended COM port number
  • LEDs for easy monitoring
WhatsApp Us
Get Quote Get Quote
Download Datasheet Download Datasheet

Models

  • UPort 2210
  • UPort 2410

Overview

How to Buy

Click “WhatsApp Us” or “Get a Quote” above to buy UPort 2210/2410 Series from APulsar Technologies, MOXA official distributor.

Purchase walk-in from our office in Petaling Jaya, or order online and enjoy fast delivery across Kuala Lumpur and the entire Malaysia.

Introduction

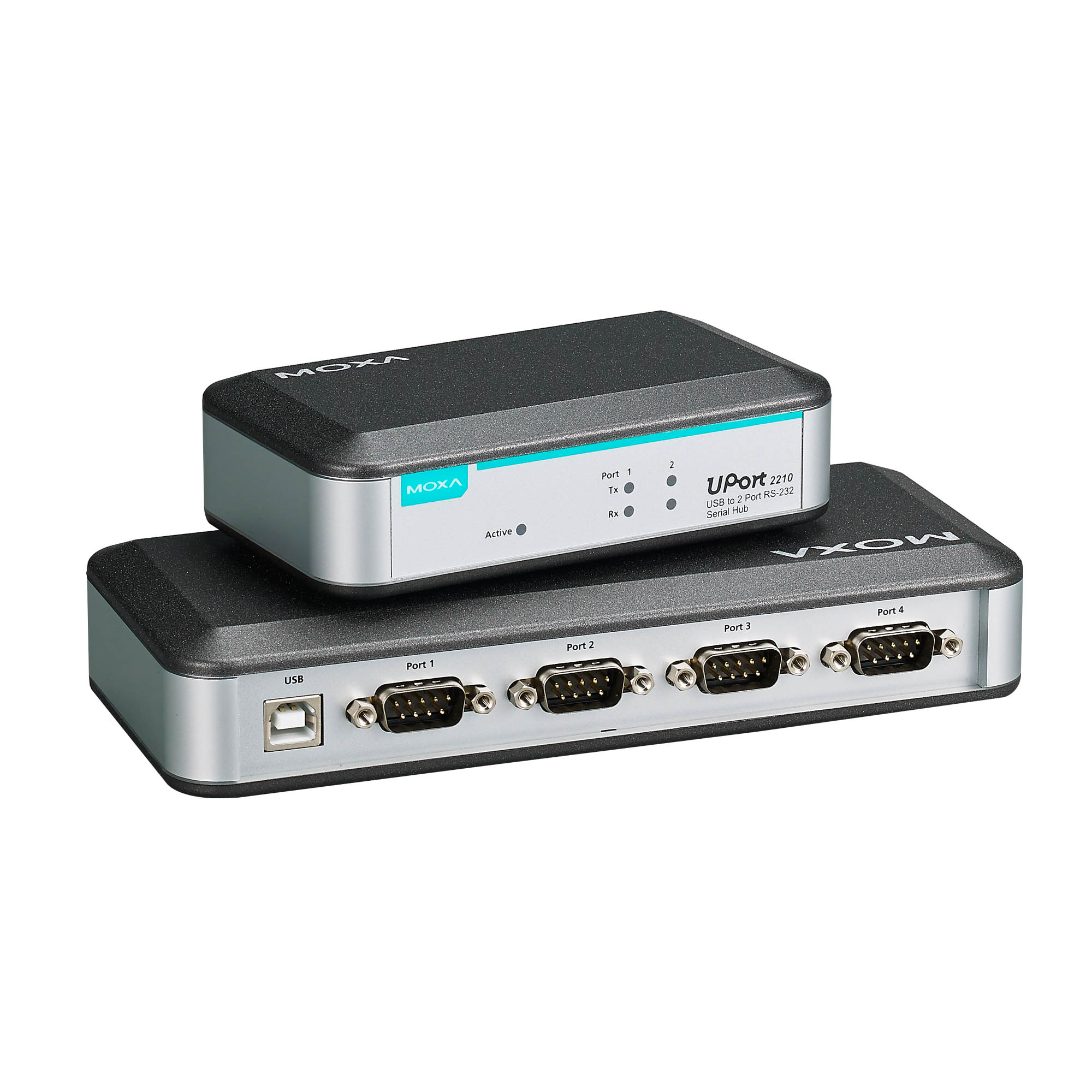

The UPort® 2210/2410 USB-to-serial converters allow you to connect two or four RS-232 devices to your laptop or workstation through the USB port. The UPort® 2210 and UPort® 2410 are cost-effective solutions for both new and legacy RS-232 devices, and they are perfect for mobile, instrumentation, and point-of-sale applications.

Specifications

USB Interface

Speed

  • 12 Mbps, 480 Mbps

USB Connector

  • USB Type B

USB Standards

  • USB 1.1/2.0 compliant

Serial Standards

  • RS-232

No. of Ports

  • UPort 2210: 2
  • UPort 2410: 4

Connector

  • DB9 male

Baudrate

  • 50 bps to 921.6 kbps

Data Bits

  • 5, 6, 7, 8

Stop Bits

  • 1, 1.5, 2

Parity

  • None, Even, Odd, Space, Mark

Flow Control

  • None, RTS/CTS, XON/XOFF

RS-232

  • TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND

Input Voltage

  • 5 VDC

Input Current

  • UPort 2210: 140 mA @ 5 VDC
  • UPort 2410: 240 mA @ 5 VDC

Housing

  • Polycarbonate (PC)

Dimensions

  • UPort 2210: 70 x 35 x 120 mm (2.76 x 1.38 x 4.72 in)
  • UPort 2410: 80 x 35 x 185 mm (3.15 x 1.38 x 7.28 in)

Weight

  • Packaged:
    UPort 2210: 325 g (0.72 lb)
    UPort 2410: 455 g (1 lb)
  • Product only:
    UPort 2210: 120 g (0.26 lb)
    UPort 2410: 210 g (0.46 lb)

Operating Temperature

  • 0 to 55°C (32 to 131°F)

Storage Temperature (package included)

  • -20 to 75°C (-4 to 167°F)

Ambient Relative Humidity

  • 5 to 95% (non-condensing)

EMC

  • EN 55032/24

EMI

  • CISPR 32, FCC Part 15B Class B

EMS

  • IEC 61000-4-2 ESD: Contact: 8 kV; Air: 4 kV
  • IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m
  • IEC 61000-4-4 EFT: Power: 1 kV
  • IEC 61000-4-5 Surge: Power: 1 kV
  • IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m; Signal: 3 V/m
  • IEC 61000-4-8 PFMF

Safety

  • UL 60950-1

Vibration

  • IEC 60068-2-6

Freefall

  • IEC 60068-2-32

Green Product

  • RoHS, CRoHS, WEEE

Time

  • UPort 2210: 4,221,778 hrs
  • UPort 2410: 3,901,775 hrs

Standards

  • Telcordia (Bellcore), GB

Warranty Period

  • 5 years
