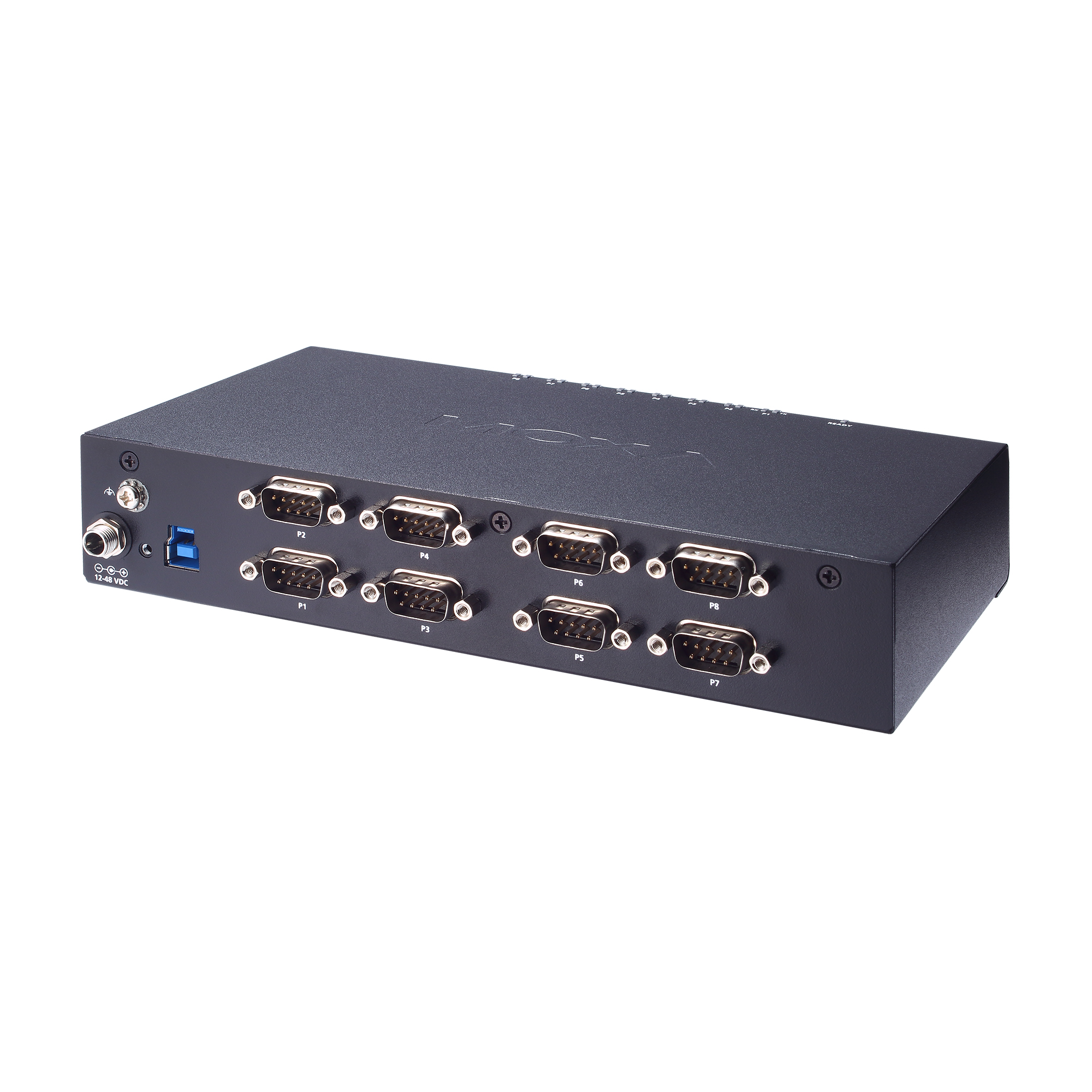

UPort 1600-8-G2 Series

Features and Benefits

  • USB 3.2 SuperSpeed capability
  • 512-byte on-chip FIFO cache and flow control for enhanced performance
  • Drivers provided for a broad selection of operating systems, including Windows and Linux
  • 50 bps to 921.6 kbps baudrate (nonstandard baudrates supported)
  • Double-sided LEDs located at the corners show power, TX, and RX statuses in either directions
  • Cascades with 3 UPort-G2 devices to up port capacity to 32 ports; no additional power adaptors required (UPort 1650-8-G2-Hub)
  • Latching USB cable design for firmer connection
  • Wide operating temperature models available for -40 to 75°C (-40 to 167°F) environments
  • Serial port with 2 kV isolation protection (for “-I” models)
WhatsApp Us
Get Quote Get Quote
Download Datasheet Download Datasheet

Models

  • UPort 1650-8-G2-Hub
  • UPort 1610-8-G2
  • UPort 1650I-8-G2
  • UPort 1650-8-G2
  • UPort 1650I-8-G2-T
  • UPort 1650-8-G2-T

Overview

How to Buy

Click “WhatsApp Us” or “Get a Quote” above to buy UPort 1600-8-G2 Series from APulsar Technologies, MOXA official distributor.

Purchase walk-in from our office in Petaling Jaya, or order online and enjoy fast delivery across Kuala Lumpur and the entire Malaysia.

Introduction

The UPort® 1600-8-G2 Series USB-to-serial converters are ideal for laptop or workstation computers that need serial port expansion. They are essential for computers which need to connect different serial devices in the field or need separate interface converters for devices without a standard COM port or DB9 connector. The computers also come with a USB cable that has a latch and screw lock for a more secure connection between the UPort and your computer. With the cascading capability of the UPort® 1650-8-G2-Hub, you can link up to 32 serial ports without a power adaptor to the UPort. The UPort® 1600-8-G2 Series converts from USB to RS-232/422/485. All products are compatible with legacy serial devices and can be used with instrumentation and point-of-sale applications.

Specifications

USB Interface

USB Standards

  • USB 3.2 Gen 1
  • USB 1.1/2.0 compliant

Speed

  • 5 Gbps, 480 Mbps, 12 Mbps

No. of USB Ports

  • 1 x UFP for all models, and 3 additional DFP for UPort 1650-8-G2-Hub

USB Connector

  • USB type B (UFP) for all models, and type A (DFP) for UPort 1650-8-G2-Hub

Connector

  • DB9 male

No. of Ports

  • 8

Serial Standards

  • RS-232: UPort 1610-8-G2
  • RS-232/422/485: All other models

FIFO

  • 512 bytes

Baudrate

  • 50 bps to 921.6 kbps (supports non-standard baudrates)

Parity

  • None, Even, Odd, Space, Mark

Data Bits

  • 5, 6, 7, 8

Stop Bits

  • 1, 1.5, 2

Flow Control

  • RTS/CTS, XON/XOFF

RS-485 Data Direction Control

  • Automatic Data Direction Control (ADDC)

Pull High/Low Resistor for RS-485

  • 1 kilo-ohm, 150 kilo-ohms

Terminator for RS-485

  • 120 ohms

Surge

  • 0.5 kV

Isolation

  • 2 kV (I models)

RS-232

  • TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND

RS-422

  • Tx+, Tx-, Rx+, Rx-, GND

RS-485-4w

  • Tx+, Tx-, Rx+, Rx-, GND

RS-485-2w

  • Data+, Data-, GND

Windows Drivers

  • Windows 11, 10, 8.1, 8, and 7
  • Windows Server 2022, 2019, 2016, 2012 R2, 2012 and 2008 R2

Linux Drivers

  • Kernel 6.x, 5.x and 4.x

Mac Drivers

  • macOS version (Intel 64): 13, 12, 11 and 10.1x

Virtual Machine

  • VMware Fusion (Windows on macOS 13, 12, 11, 10.1x, Intel 64) VMWare ESXi (Linux kernel 4)
  • Parallels Desktop (Windows on macOS 13, 12, 11, 10.1x, Intel 64)

Arm®-based Platform Support

  • Linux kernel 6.x, 5.x and 4.x

Android API

  • Android 3.1.x and later

Input Voltage

  • UPort 1610-8-G2/1650-8-G2 models:
    5 VDC by USB bus power or 12 to 48 VDC by external power adaptor
  • UPort 1650I-8-G2 models/1650-8-G2-Hub:
    12 to 48 VDC by external power adaptor

Input Current

  • UPort 1610-8-G2: 308 mA @ USB 2.0, 495 mA @ USB 3.2, 260 mA @ 12 VDC
  • UPort 1650-8-G2 models: 466 ma @ USB 2.0, 652 mA & USB 3.2, 350 mA @ 12 VDC
  • UPort 1650I-8-G2 models: 530 mA @ 12 VDC
  • UPort 1650-8-G2-Hub: 2,250 mA @ 12 VDC

Output Power Rating

  • UPort 1650-8-G2-Hub: 900 mA @ 5 VDC (USB 3.2)
  • 500 mA @ 5 VDC (USB 2.0)

Housing

  • Metal

Dimensions

  • 216 x 41.5 x 121.6 mm (8.50 x 1.63 x 4.79 in)

Weight

  • UPort 1610-8-G2: 650 g (1.43 lb)
  • UPort 1650-8-G2 models: 670 g (1.48 lb)
  • UPort 1650I-8-G2 models: 678 g (1.49 lb)
  • UPort 1650-8-G2-Hub: 689 g (1.52 lb)

IP Rating

  • IP20

Operating Temperature

  • Standard models: 0 to 60°C (32 to 140°F)
  • -T models: -40 to 75°C (-40 to 167°F)

Storage Temperature

  • -40 to 75°C (-40 to 167°F)

Ambient Relative Humidity

  • 5 to 95% (non-condensing)

EMC

  • EN 55032/35

EMI

  • CISPR 32, FCC Part 15B Class A

EMS

  • IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
  • IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m
  • IEC 61000-4-4 EFT: Power: 1 kV
  • IEC 61000-4-5 Surge: Power: 1 kV, Signal: 0.5 kV
  • IEC 61000-4-6 CS: 3 V; 150 kHz to 80 MHz
  • IEC 61000-4-8 PFMF

Safety

  • IEC 62368-1
  • EN 62368-1
  • UL 62368-1 (CB)
  • KC

Vibration

  • IEC 60068-2-6
  • IEC 60068-2-64

Shock

  • IEC 60068-2-27

Freefall

  • IEC 60068-2-31

Green Product

  • RoHS, CRoHS, WEEE

Standards

  • Telcordia Standard SR332, Telcordia Issue 2

Time

  • UPort 1610-8-G2: 1,431,860 hrs
  • UPort 1650-8-G2 models: 951,145 hrs
  • UPort 1650I-8-G2 models: 782,795 hrs
  • UPort 1650-8-G2-Hub: 823,983 hrs
