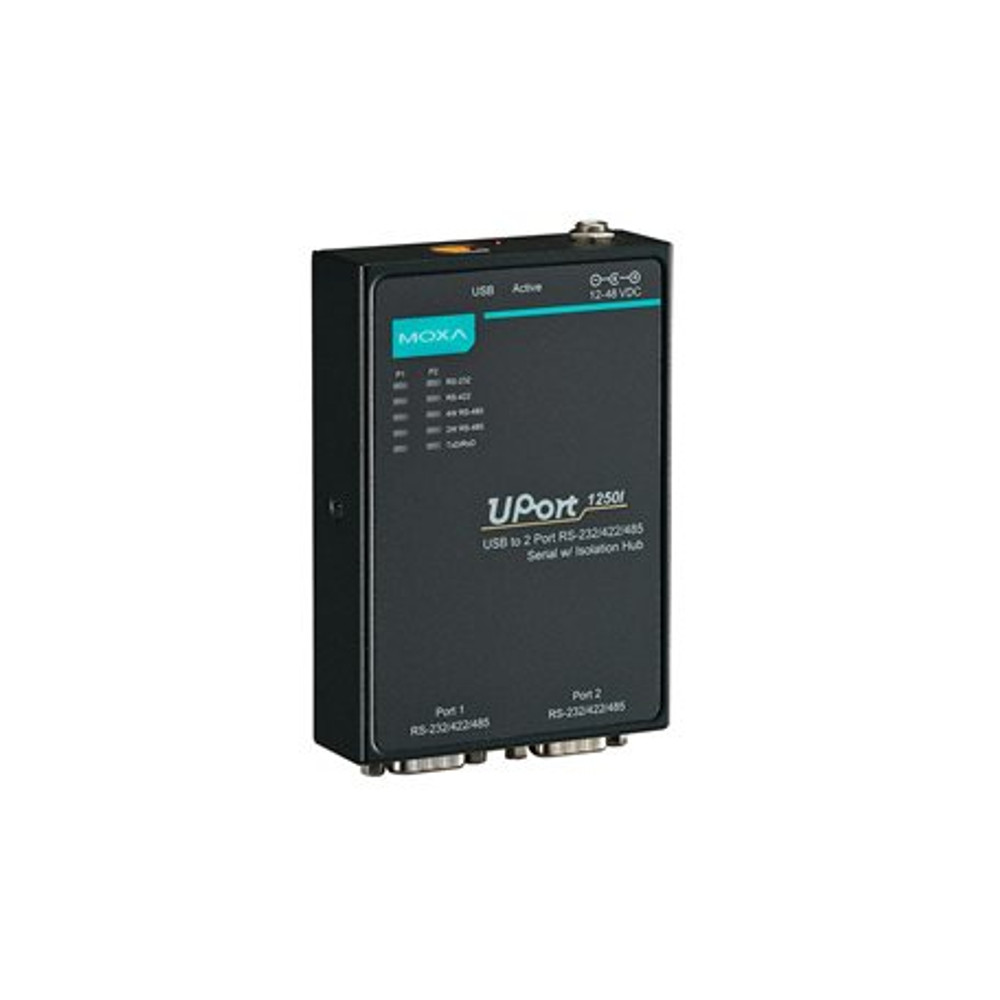

UPort 1200/1400/1600 Series

Features and Benefits

  • Hi-Speed USB 2.0 for up to 480 Mbps USB data transmission rates
  • 921.6 kbps maximum baudrate for fast data transmission
  • Real COM and TTY drivers for Windows, Linux, and macOS
  • Mini-DB9-female-to-terminal-block adapter for easy wiring
  • LEDs for indicating USB and TxD/RxD activity
  • 2 kV isolation protection (for “-I” models)
WhatsApp Us
Get Quote Get Quote
Download Datasheet Download Datasheet

Models

  • UPort 1610-16
  • UPort 1650-16

Overview

How to Buy

Click “WhatsApp Us” or “Get a Quote” above to buy UPort 1200/1400/1600 Series from APulsar Technologies, MOXA official distributor.

Purchase walk-in from our office in Petaling Jaya, or order online and enjoy fast delivery across Kuala Lumpur and the entire Malaysia.

Introduction

The UPort® 1200/1400/1600 Series of USB-to-serial converters is the perfect accessory for laptop or workstation computers that do not have a serial port. They are essential for engineers who need to connect different serial devices in the field or separate interface converters for devices without a standard COM port or DB9 connector.

The UPort® 1200/1400/1600 Series converts from USB to RS-232/422/485. All products are compatible with legacy serial devices, and can be used with instrumentation and point-of-sale applications.

Specifications

USB Interface

Speed

  • 12 Mbps, 480 Mbps

USB Connector

  • USB Type B

USB Standards

  • USB 1.1/2.0 compliant

No. of Ports

  • UPort 1200 Models: 2
  • UPort 1400 Models: 4
  • UPort 1600-8 Models: 8
  • UPort 1600-16 Models: 16

Connector

  • DB9 male

Baudrate

  • 50 bps to 921.6 kbps

Data Bits

  • 5, 6, 7, 8

Stop Bits

  • 1, 1.5, 2

Parity

  • None, Even, Odd, Space, Mark

Flow Control

  • None
  • RTS/CTS
  • XON/XOFF

Isolation

  • 2 kV (I models)

Serial Standards

  • UPort 1410/1610-8/1610-16: RS-232
  • UPort 1250/1250I/1450/1650-8/1650-16: RS-232, RS-422, RS-485

RS-232

  • TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND

RS-422

  • Tx+, Tx-, Rx+, Rx-, GND

RS-485-4w

  • Tx+, Tx-, Rx+, Rx-, GND

RS-485-2w

  • Data+, Data-, GND

Windows Drivers

  • Windows 11/10/8.1/8/7/Vista/XP/ME/98/95
  • Windows Server 2022/2019/2016/2012 R2/2012/2008 R2/2008/2003/2000/NT

Linux Drivers

  • Kernel versions: 6.x, 5.x, 4.x, 3.x, 2.6.x and 2.4.x

Mac Drivers

  • macOS versions: 10.12 to 10.15, 11.x

Virtual Machine

  • VMware Fusion (Windows on macOS 10.12 to 11.x)
  • VMWare ESXi (Linux kernel 4)
  • Parallels Desktop (Windows on macOS 10.12 to 11.x)

Arm®-based Platform Support

  • Linux kernel 5.x / 4.x

Android API

  • Android 3.1.x and later

Input Voltage

  • UPort 1250/1410/1450: 5 VDC
  • UPort 1250I/1400/1600-8 Models: 12 to 48 VDC
  • UPort 1600-16 Models: 100 to 240 VAC

Input Current

  • UPort 1250: 360 mA @ 5 VDC
  • UPort 1250I: 200 mA @ 12 VDC
  • UPort 1410/1450: 260 mA @ 12 VDC
  • UPort 1450I: 360 mA @ 12 VDC
  • UPort 1610-8/1650-8: 580 mA @ 12 VDC
  • UPort 1600-16 Models: 220 mA @ 100 VAC

Housing

  • Metal

Dimensions

  • UPort 1250/1250I: 77 x 26 x 111 mm (3.03 x 1.02 x 4.37 in)
  • UPort 1410/1450/1450I: 204 x 30 x 125 mm (8.03 x 1.18 x 4.92 in)
  • UPort 1610-8/1650-8: 204 x 44 x 125 mm (8.03 x 1.73 x 4.92 in)
  • UPort 1610-16/1650-16: 440 x 45.5 x 198.1 mm (17.32 x 1.79 x 7.80 in)

Weight

  • UPort 1250/1250I: 180 g (0.40 lb)
  • UPort 1410/1450/1450I: 720 g (1.59 lb)
  • UPort 1610-8/1650-8: 835 g (1.84 lb)
  • UPort 1610-16/1650-16: 2,475 g (5.45 lb)

Storage Temperature (package included)

  • -20 to 75°C (-4 to 167°F)

Ambient Relative Humidity

  • 5 to 95% (non-condensing)

Operating Temperature

  • UPort 1200 Models: 0 to 60°C (32 to 140°F)
  • UPort 1400//1600-8/1600-16 Models: 0 to 55°C (32 to 131°F)

EMC

  • EN 55032/35

EMI

  • CISPR 32, FCC Part 15B Class A

EMS

  • IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
  • IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m
  • IEC 61000-4-4 EFT: Power: 1 kV
  • IEC 61000-4-5 Surge: Power: 1 kV
  • IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m
  • IEC 61000-4-8 PFMF

Safety

  • UPort 1200 /1600-16 Models : UL 60950-1
  • UPort 1400 /1600-8 Models : UL/IEC 62368-1

Green Product

  • RoHS, CRoHS, WEEE

Time

  • UPort 1250/1250I: 563,179 hrs
  • UPort 1410: 394,441 hrs
  • UPort 1450/1450I: 546,770 hrs
  • UPort 1610-8: 208,413 hrs
  • UPort 1650-8: 186,567 hrs
  • UPort 1610-16: 138,704 hrs
  • UPort 1650-16: 120,001 hrs

Standards

  • UPort 1250/1250I/1410/1450/1450I: Telcordia (Bellcore) Standard
  • UPort 1610-8/1650-8/1610-16/1650-16: MIL-HDBK-217F

Warranty Period

  • 5 years
