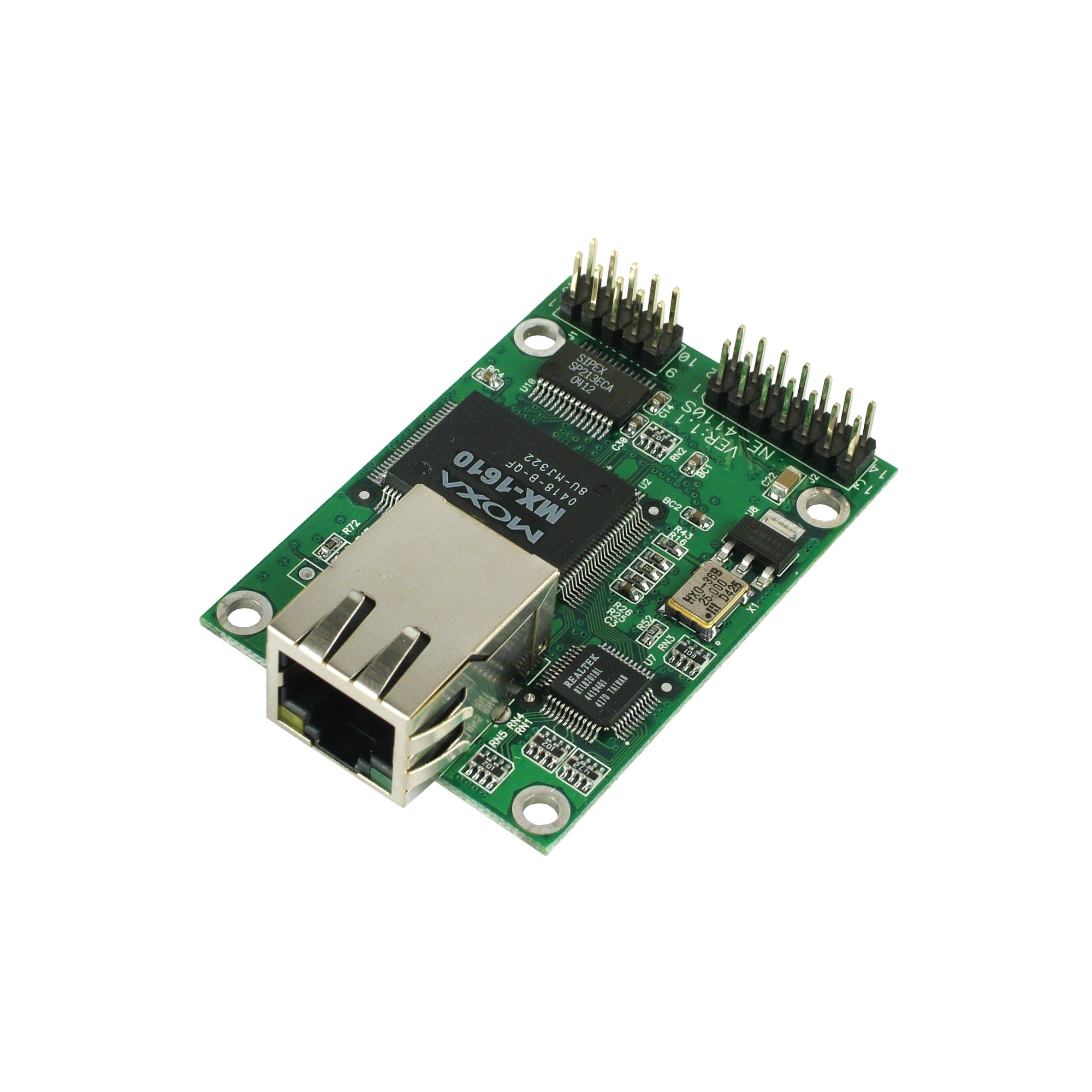

NE-4100 Series

Features and Benefits

  • 10/100 Mbps Ethernet interface
  • Supports baudrates up to 230.4 kbps
  • Choice of operation modes: Real COM, TCP Server, TCP Client, and UDP
  • SNMP and email alerts for event trapping and notifications
  • Half the size of a credit card—only 57 × 40 mm
  • Low power consumption at 1.5 W, with single +5 V input
WhatsApp Us
Get Quote Get Quote
Download Datasheet Download Datasheet

Models

  • NE-4100T
  • NE-4100T-T
  • NE-4110S
  • NE-4110S-T
  • NE-4110A
  • NE-4110A-T
  • NE-4120S
  • NE-4120S-T
  • NE-4120A
  • NE-4120A-T

Overview

How to Buy

Click “WhatsApp Us” or “Get a Quote” above to buy NE-4100 from APulsar Technologies, MOXA official distributor.

Purchase walk-in from our office in Petaling Jaya, or order online and enjoy fast delivery across Kuala Lumpur and the entire Malaysia.

Introduction

Moxa’s NE-4100 embedded device servers are designed for manufacturers who want to add sophisticated network connectivity to their serial devices. Moxa’s embedded device servers can be used to convert any device with a standard serial interface to an Ethernet-enabled device in no time. The NE-4100 embedded device servers support 10/100 Mbps Ethernet, and provide ready-to-use operation modes, including TCP Server, TCP Client, and UDP. In addition, a Real COM driver is included for backward compatibility with legacy software.

SNMP and Email Alerts for Event Trap and Notification

NE-4100 embedded device servers can be configured to send an SNMP trap or email under the following conditions:

  • Cold/warm start
  • Password authentication failure
  • Change in DSR/DCD line signal
  • Change in IP address
  • Change in password

Specifications

Platform

CPU

  • 16-bit MCU

Flash

  • 2 MB

SDRAM

  • 1 MB

Configurable DIO Channels (by software)

  • 4

10/100BaseT(X) Ports, Auto MDI/MDI-X

  • NE-4120S/4120A: 5-pin pin header
  • NE-4100T: 26-pin dual-in-line
  • NE-4110S/4110A: 8-pin RJ45

Magnetic Isolation Protection

  • 1.5 kV (built-in)

Standards

  • IEEE 802.3 for 10BaseT
  • IEEE 802.3u for 100BaseT(X)
  • IEEE 802.3x for flow control

Configuration Options

  • Web Console (HTTP), Windows Utility, Telnet Console, Serial Console

Management

  • ARP, Device Search Utility (DSU), DHCP Client, HTTP, IPv4, SMTP, SNMPv1/v2c, TCP/IP, Telnet, UDP, Web Console, ICMP

Windows Real COM Drivers

  • Windows 95/98/ME/NT/2000, Windows XP/2003/Vista/2008/7/8/8.1/10 (x86/x64), Windows 2008 R2/2012/2012 R2/2016/2019 (x64), Windows Embedded CE 5.0/6.0, Windows XP Embedded

Linux Real TTY Drivers

  • Kernel versions: 2.4.x, 2.6.x, 3.x, 4.x, and 5.x

Fixed TTY Drivers

  • SCO UNIX, SCO OpenServer, UnixWare 7, QNX 4.25, QNX 6, Solaris 10, FreeBSD, AIX 5.x, HP-UX 11i, Mac OS X

Android API

  • Android 3.1.x and later

No. of Ports

  • 2 (1 for serial interface, 1 for TTL console port)

Serial Standards

  • NE-4110S/4120S Series: RS-232
  • NE-4110A/4120A Series: RS-422, RS-485
  • NE-4100T Series: TTL

Operation Modes

  • Real COM mode, TCP Client mode, TCP Server mode, UDP mode

Baudrate

  • 110 bps to 230.4 kbps

Data Bits

  • 5, 6, 7, 8

Stop Bits

  • 1, 1.5, 2

Parity

  • None, Even, Odd, Space, Mark

Flow Control

  • None, RTS/CTS, DTR/DSR, XON/XOFF

RS-232

  • NE-4110S/4120S: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND

RS-422

  • NE-4110A/4120A: TX+, TX-, RX+, RX-, GND

RS-485-4w

  • NE-4110A/4120A: TX+, TX-, RX+, RX-, GND

RS-485-2w

  • NE-4110A/4120A: Data+, Data-, GND

Input Voltage

  • 5 VDC

Power Consumption

  • 290 mA @ 5 VDC

Dimensions

  • NE-4110/4120: 57 x 40 mm (2.24 x 1.57 in)
  • NE-4100T: 45 x 36 mm (1.77 x 1.42 in)

Weight

  • NE-4110S/4110A: 40 g (0.09 lb)
  • NE-4120S/4120A/4100T: 20 g (0.04 lb)

Form Factor Type

  • NE-4110/4110A/4120S/4120A: Ready-to-go pin header modules
  • NE-4100T: Drop-in modules

Operating Temperature

  • Standard Models: 0 to 55˚C (32 to 131˚F)
  • Wide Temp. Models: -40 to 75˚C (-40 to 167˚F)

Storage Temperature (package included)

  • -40 to 60°C (-40 to 140°F)

Ambient Relative Humidity

  • 5 to 95% (non-condensing)

EMC

  • EN 55032/24

EMI

  • CISPR 32, FCC Part 15B Class A

EMS

  • IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
  • IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m
  • IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV
  • IEC 61000-4-5 Surge: Power: 1 kV
  • IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m; Signal: 3 V/m
  • IEC 61000-4-8 PFMF

Environmental Testing

  • IEC 60068-2-1
  • IEC 60068-2-3
  • IEC 60068-2-14

Green Product

  • RoHS, CRoHS, WEEE

Time

  • NE-4100T: 288,173 hrs
  • NE-4110S: 290,276 hrs
  • NE-4110A/4120S/4120A: 289,573 hrs

Standards

  • Telcordia SR332

Warranty Period

  • 5 years
