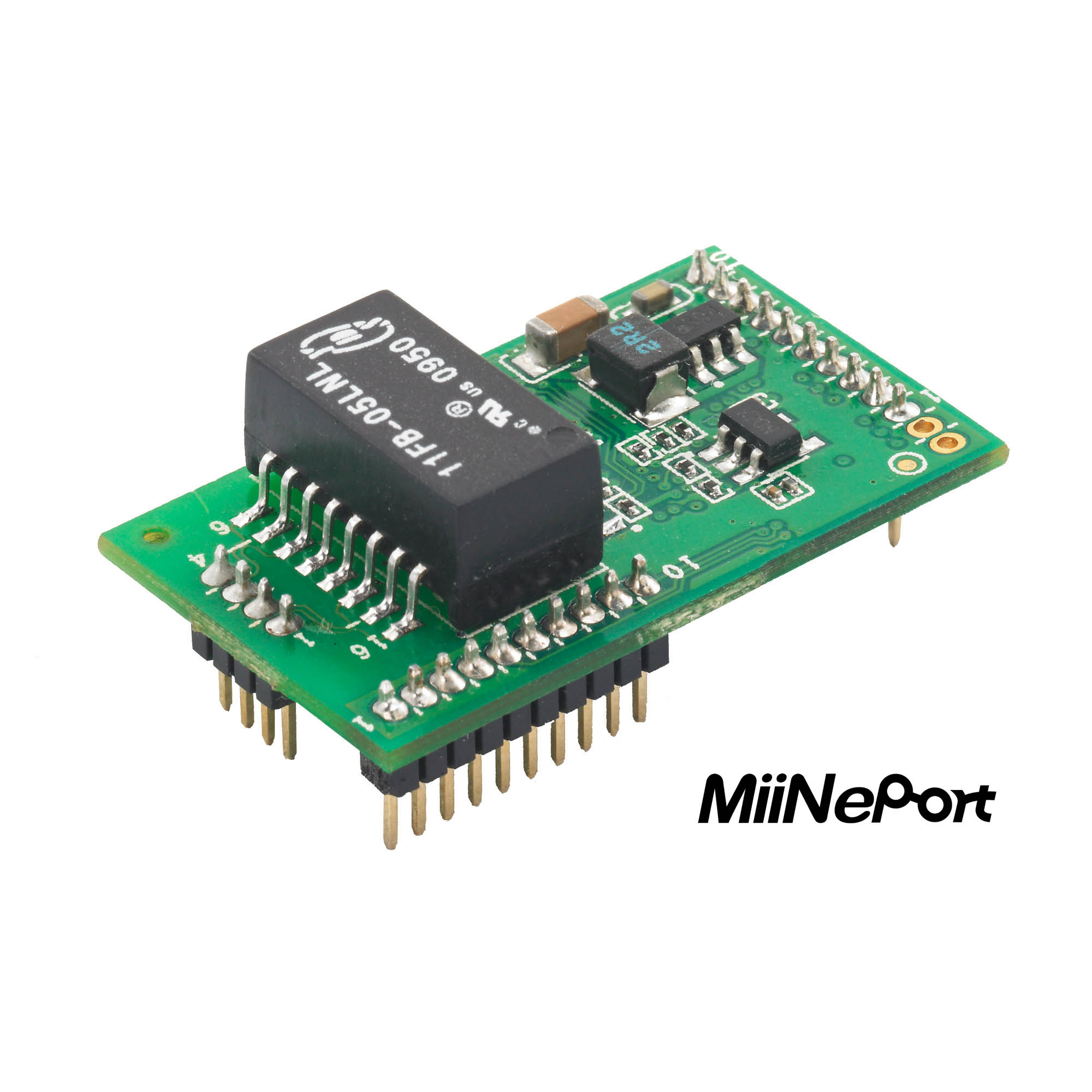

MiiNePort E2 Series

Features and Benefits

  • Smallest embedded device server available—only 29 x 17 x 12.6 mm
  • Supports EZPower for 3.3 to 5 VDC system power input
  • Green design with extremely low power consumption
  • Uses Moxa’s high-quality and reliable second-generation MiiNe SoC
  • MiiNePort NetEZ technology makes integration incredibly easy
  • Operation versatility with Real COM/TCP/UDP/RFC2217/MCSC
WhatsApp Us
Get Quote Get Quote
Download Datasheet Download Datasheet

Models

  • MiiNePort E2-ST
  • MiiNePort E2-SDK
  • MiiNePort E2-T
  • MiiNePort E2-H-T
  • MiiNePort E2-H-ST
  • MiiNePort E2
  • MiiNePort E2-H

Overview

How to Buy

Click “WhatsApp Us” or “Get a Quote” above to buy MiiNePort E2 Series from APulsar Technologies, MOXA official distributor.

Purchase walk-in from our office in Petaling Jaya, or order online and enjoy fast delivery across Kuala Lumpur and the entire Malaysia.

Introduction

Moxa’s MiiNePort E2 Series embedded device servers are designed for manufacturers who want to add sophisticated network connectivity to their serial devices with minimal integration effort. The MiiNePort E2 is empowered by the MiiNe, Moxa’s second-generation SoC, which supports 10/100 Mbps Ethernet, delivers a serial baudrate of up to 921.6 kbps, offers a versatile selection of ready-to-use operation modes, and requires a minimal amount of power. With Moxa’s innovative NetEZ technology, the MiiNePort E2 can convert any device with a standard serial interface to an Ethernet-enabled device. In addition, the MiiNePort E2 is the smallest embedded device server without an RJ45 connector, making it easy to fit into virtually any existing serial device.

Moxa’s Second-generation SoC

The MiiNe was created to provide manufacturers with a competitive embedded serial-to-Ethernet solution. The MiiNePort E2, which uses the MiiNe for its SoC, is one of the world’s tiniest embedded device servers and has the lowest power consumption among similar products. The MiiNe’s features include:

  • Cost-effective serial-to-Ethernet conversions
  • Arm core
  • Advanced UART technology
  • Internal 2 MB Flash and 4 MB SDRAM memory

Specifications

Embedded System

CPU

  • 32-bit Arm Core

Flash

  • 2 MB

SDRAM

  • 4 MB

Configurable DIO Channels (by software)

  • 4

10/100BaseT(X) Ports, Auto MDI/MDI-X

  • 4-pin pin header

Magnetic Isolation Protection

  • 1.5 kV (built-in)

Configuration Options

  • Web Console (HTTP), Windows Utility

Management

  • ARP, BOOTP, Device Search Utility (DSU), DHCP Client, IPv4, SMTP, SNMPv1, TCP/IP, Telnet, TFTP, UDP, ICMP

Windows Real COM Drivers

  • Windows 95/98/ME/NT/2000, Windows XP/2003/Vista/2008/7/8/8.1/10 (x86/x64), Windows 2008 R2/2012/2012 R2/2016/2019 (x64), Windows Embedded CE 5.0/6.0, Windows XP Embedded

Linux Real TTY Drivers

  • Kernel versions: 2.4.x, 2.6.x, 3.x, 4.x, and 5.x

Fixed TTY Drivers

  • SCO UNIX, SCO OpenServer, UnixWare 7, QNX 4.25, QNX 6, Solaris 10, FreeBSD, AIX 5.x, HP-UX 11i, Mac OS X

Android API

  • Android 3.1.x and later

No. of Ports

  • 1

Serial Standards

  • TTL

Operation Modes

  • MiiNePort E2 Series: Real COM mode, RFC2217 mode, TCP Client mode, TCP Server mode, UDP mode, Ethernet Modem mode, MCSC mode
  • MiiNePort E2-SDK: Real COM mode, Ethernet Modem mode

Baudrate

  • MiiNePort E2 Series: 50 bps to 230.4 kbps
  • MiiNePort E2-H/-SDK Series: 50 bps to 921.6 kbps

Data Bits

  • 5, 6, 7, 8

Stop Bits

  • 1, 1.5, 2

Parity

  • None, Even, Odd, Space, Mark

Flow Control

  • None, RTS/CTS, DTR/DSR, XON/XOFF

TTL

  • TxD, RxD, RTS, CTS, DTR, DSR, DCD, RST (reset circuit), GND

NetEZ Functions

  • EZPower, EZPage, SCM (Serial Command Mode), AutoCFG, MCSC (Multi-Channel Serial Communication)

Serial to Ethernet Sample Source Code

  • MiiNePort E2-SDK (Integrated in MiiNePort-IDE):
    1. TCP Server Echo
    2. TCP Server to Serial (Single connection)
    3. TCP Server to Serial (Multi-connection)
    4. TCP Client Echo
    5. TCP Client to Serial (Startup)
    6. TCP Client to Serial (Any character)
    7. TCP Client to Serial (Designed destination TCP/IP port from serial)
    8. UDP Echo
    9. UDP to Serial

Input Current

  • 157 mA @ 3.3 VDC

Input Voltage

  • 3.3 to 5 VDC

Dimensions

  • MiiNePort E2/E2-H/E2-SDK Series: 29 x 17 x 12.6 mm (1.14 x 0.67 x 0.50 in)

Weight

  • MiiNePort E2/E2-H Series: 5 g (0.01 lb)
  • MiiNePort E2-ST/E2-H-ST/E2-SDK: 77 g (0.17 lb)

Form Factor Type

  • Drop-in modules

Operating Temperature

  • Standard Models: 0 to 55˚C (32 to 131˚F)
  • Wide Temp. Models: -40 to 85˚C (-40 to 185˚F)

Storage Temperature (package included)

  • -40 to 60°C (-40 to 140°F)

Ambient Relative Humidity

  • 5 to 95% (non-condensing)

EMC

  • EN 55032/24

EMI

  • CISPR 32, FCC Part 15B Class B

EMS

  • IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV
  • IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m
  • IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV
  • IEC 61000-4-5 Surge: Power: 2 kV; Signal: 0.5 kV
  • IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m; Signal: 3 V/m
  • IEC 61000-4-8 PFMF
  • IEC 61000-4-11

Environmental Testing

  • IEC 60068-2-1
  • IEC 60068-2-3

Shock

  • IEC 60068-2-27

Vibration

  • IEC 60068-2-6

Green Product

  • RoHS, CRoHS, WEEE

Time

  • 5,696,350 hrs

Standards

  • Telcordia SR332

Warranty Period

  • 5 years
