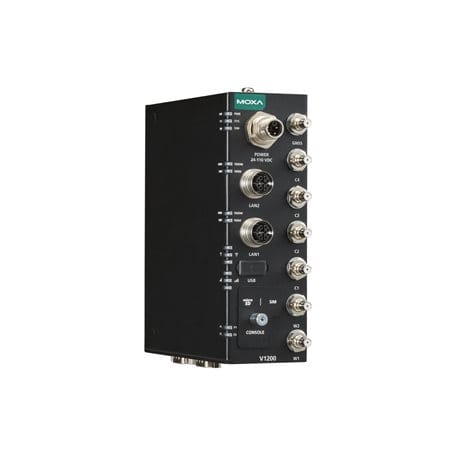

V1200 Series

Features and Benefits

  • Arm Cortex-A53 quad-core 1.6 GHz processor
  • Slim, compact design with multiple mounting options
  • Integrated 5G Sub-6GHz NR module and Wi-Fi 6 module with dual SIM
  • Built-in TPM 2.0 module
  • Moxa Industrial Linux built-in for long-term Linux support
  • Isolated power with 24 to 110 VDC power supply range
  • Complies with all EN 50155 mandatory test items

Available to Order
WhatsApp Us
Get Quote Get Quote
Download Datasheet Download Datasheet

Models

  • V1222-CT-T
  • V1222-W-CT-T
  • V1202-CT-T

Overview

How to Buy

Click “WhatsApp Us” or “Get a Quote” above to buy V1200 from APulsar Technologies, MOXA official distributor.

Purchase walk-in from our office in Petaling Jaya, or order online and enjoy fast delivery across Kuala Lumpur and the entire Malaysia.

Introduction

The V1200 computing platform is designed for railway TCMS data-acquisition and train-to-ground applications. The computer comes with dual M12 10/100/1000 Mbps Ethernet ports, built-in 5G and Wi-Fi 6 modules and dual RS-232/422/485 serial ports. The slim, compact design with multiple mounting options reduces installation space and provides flexibility for mounting in various cabinets or onboard locations.

The V1200 comes with Moxa Industrial Linux (MIL) and long-term Linux support and vulnerability patching. A web-based interface is provided for easy configuration of Ethernet and wireless network settings without the need for programming.

The V1200 wireless-enabled models are thoroughly tested in a testing chamber, guaranteeing they meet the EN 50155 mandatory requirements and OT4 operating temperature (-40 to 70°C with cellular and Wi- Fi modules enabled) requirements, making them suitable for wide-temperature applications.

Specifications

Computer

CPU

  • Arm Cortex-A53 quad-core 1.6 GHz

DRAM

  • 4 GB LPDDR4

Supported OS

  • Moxa Industrial Linux 3 (Debian 11, kernel 5.10), 2031 EOL

Storage Pre-installed

  • 16 GB eMMC

Expansion Slots

  • microSD socket x 1

Ethernet Ports

  • Auto-sensing 10/100/1000 Mbps ports (M12 X-coded) x 2

Serial Ports

  • V1222-CT-T, V1222-W-CT-T:
    RS-232/422/485 ports x 2 (software-selectable, DB9 male connector)

USB 2.0

  • USB 2.0 hosts x 1, type-A connectors

Wi-Fi Antenna Connector

  • V1222-CT-T, V1222-W-CT-T: QMA x 2

Cellular Antenna Connector

  • V1222-CT-T, V1222-W-CT-T: QMA x 4

GPS Antenna Connector

  • V1222-CT-T, V1222-W-CT-T: QMA x 1

Console Port

  • RS-232 (TxD, RxD, GND), 3-pin header output (115200, n, 8, 1)

Expansion Slots

  • M.2 E-key slot x1 (for Wi-Fi 6)
  • M.2 B-key slot x1 (for 5G)
  • mPCIe slot x1 (for LTE)
    Note: 5G and LTE cannot be operated at the same time.
    Note: 5G and LTE cannot be operated at the same time.

SIM Format

  • V1222-CT-T, V1222-W-CT-T: Nano

Number of SIMs

  • V1222-CT-T: 2 for 5G or 2 for LTE
  • V1222-W-CT-T: 2 for 5G

Buttons

  • Reset button

TPM

  • TPM v2.0

No. of Ports

  • V1222-CT-T, V1222-W-CT-T: 2

Baudrate

  • 50 bps to 115.20 kbps

Data Bits

  • 5, 6, 7, 8

Stop Bits

  • 1, 1.5, 2

Parity

  • None, Even, Odd, Space, Mark

Flow Control

  • RTS/CTS, XON/XOFF
  • ADDC (automatic data direction control) for RS-485RTS Toggle (RS-232 only)

Isolation

  • N/A

RS-232

  • TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND

RS-422

  • Tx+, Tx-, Rx+, Rx-, GND

RS-485-2w

  • Data+, Data-, GND

RS-485-4w

  • Tx+, Tx-, Rx+, Rx-, GND

LTE Bands (LTE module)

  • Band 1 (2100 MHz), Band 2 (1900 MHz), Band 3 (1800 MHz), Band 4 (1700 MHz), Band 5 (850 MHz), Band 7 (2600 MHz), Band 8 (900 MHz), Band 9 (1800 MHz), Band 12 (700 MHz), Band 13 (700 MHz), Band 14 (700 MHz), Band 18 (850 MHz), Band 19 (850 MHz), Band 20 (800 MHz), Band 25 (1900 MHz), Band 26 (850 MHz), Band 28 (700 MHz)

5G NR Bands (5G module)

  • NSA and SA bands:
    n1 (2100 MHz), n2 (1900 MHz), n3 (1800 MHz), n5 (850 MHz), n7 (2600 MHz), n8 (900 MHz), n12 (700 MHz), n13 (700 MHz), n14 (700 MHz), n18 (800 MHz), n20 (800 MHz), n25 (1900 MHz), n26 (850 MHz), n28 (700 MHz), n29 (700 MHz), n30 (2300 MHz), n38 (2600 MHz),n40 (2300 MHz), n41 (2500 MHz), n48 (3600 MHz), n66 (1700 MHz), n71 (600 MHz), n75 (1500 MHz), n77 (3700 MHz), n78 (3500 MHz), n79 (4500 MHz)

UMTS/HSPA Bands (LTE module)

  • Band 1 (2100 MHz), Band 2 (1900 MHz), Band 4 (1700 MHz), Band 5 (850 MHz), Band 6 (850 MHz), Band 8 (900 MHz), Band 19 (850 MHz)

UMTS/HSPA Bands (5G module)

  • Band 1 (2100 MHz), Band 2 (1900 MHz), Band 4 (1700 MHz), Band 5 (850 MHz), Band 6 (850 MHz), Band 8 (900 MHz), Band 19 (850 MHz)

LTE Bands (5G module)

  • B1 (2100 MHz), B2 (1900 MHz), B3 (1800 MHz), B4 (1700 MHz), B5 (850 MHz), B7 (2600 MHz), B8 (900 MHz), B12 (700 MHz), B13 (700 MHz), B14 (700 MHz), B17 (700 MHz), B18
    (800 MHz), B19 (800 MHz), B20 (800 MHz), B25 (1900 MHz), B26 (850 MHz), B28 (700 MHz), B29 (700 MHz), B30 (2300 MHz), B32 (1500 MHz), B34 (2000 MHz), B38 (2600 MHz), B39 (1900 MHz), B40 (2300 MHz), B41 (2500 MHz), B42 (3500 MHz), B43 (3600 MHz), B46 (5200 MHz), B48 (3600 MHz), B66 (1700 MHz), B71 (600 MHz)

2G Bands (LTE module)

  • Band 2 (PCS_1900), Band 3 (DCS_1800), Band 5 (GSM_850), Band 8 (EGSM_900)

Cables

  • 5G module: IPEX MHF4 to QMA cables x 5 (4 for data transition, 1 for GNSS)
  • LTE Module: IPEX MHF to QMA cables x 3 (2 for data transition, 1 for GNSS)

Frequency Range

  • 5G module:
    Wide-band GNSS: 1559 to 1606 MHz (recommended)
  • GPS: BW NB GPS 2.046 MHz
    (centered at 1575.42 MHz)
  • GLONASS:
    BW 8.3 MHz approx. (1597.05 to 1606 MHz) BeiDou: 4.092 MHz BW (1559.05 to 1563.14 MHz) Galileo: 4.092 MHz BW (centered at 1575.42 MHz)
  • LTE module:
    Wide-band GNSS: 1559 to 1606 MHz (recommended) State-of-the-art GNSS solution with GPS/GLONASS/BeiDou/Galileo/QZSS

Antenna Types Supported

  • 5G module:
    Active antenna (default)
    7.5 dB < Gain < 26 dB for nominal performance
    1.5 dB < Gain < 7.5 dB for nominal performance
    Configured via AT command
  • Passive antenna:
    1.5 dBi < Gain < 3dBi
  • LTE module:
    Typ. 14 dBi < Gain < 17 dBi (external active antenna with a GNSS pre-filter)

Time to First Fix (TTFF)

  • 5G module:
    Hot start: 1 s
    Warm start: 27 s
    Cold start: 28 s
    Open Sky, mean TTFF
  • LTE module:
    Hot start: 1.1s
    Warm start: 22.1s
    Cold start: 29.9s
    GPS + GLONASS simulator test

Sensitivity

  • 5G module:
    Cold starts: -146 dBm
    Tracking: -161 dBm
    Acquisition: -148 dBm
  • LTE module:
    Cold starts: -145 dBm
    Tracking: -160 dBm
    Acquisition: -147 dBm

Update Rate

  • Minimum 1 Hz

WLAN Standards

  • 802.11a/b/g/n/ac/ax

Frequency Band

  • 2.4 GHz / 6 GHz
  • 2.4 GHz / 5 GHz

System

  • Power x 1
  • System x 1
  • SIM card indicator x 1

LAN

  • 2 ports, 1 per port (10/100/1000 Mbps)

Serial

  • V1222-CT-T, V1222-W-CT-T:
    1 LED per port for 2 serial ports

Wireless Signal Strength

  • Cellular x 3
  • Wi-Fi x 3

No. of Power Inputs

  • 1

Input Voltage

  • 24 to 110 VDC

Input Current

  • V1202-CT-T: 0.4 A @ 24 VDC, 0.1A @ 110
  • VDC V1222-CT-T: 0.6 A @ 24 VDC, 0.13A @ 110 VDC
  • V1222-W-CT-T: 0.6 A @ 24 VDC, 0.13A @ 110 VDC

Power Consumption

  • V1202-CT-T: 7.4 W at 95% CPU loading
  • V1222-W-CT-T: 13.7 W (with 5G & Wi-Fi) at 95% CPU loading

Power Connector

  • M12 K-code power connector

Reverse Polarity Protection

  • Supported

Automatic Reboot Trigger

  • External RTC (real-time clock)

Alert Tools

  • External WDT (watchdog timer)

Housing

  • Metal
  • SECC

IP Rating

  • IP40

Dimensions

  • V1202-CT-T:
    150 x 120 x 41 mm (5.90 x 4.72 x 1.61 in)
  • V1222-CT-T / V1222-W-CT-T:
    150 x 120 x 50 mm (5.90 x 4.72 x 1.97 in)

Weight

  • Product only (without mounting ears)
  • V1202-CT-T: 665 g (1.47 lb)
  • V1222-CT-T : 935 g (2.06 lb)
  • V1222-W-CT-T : 1,005 g (2.22 lb)

Installation

  • Wall mounting (standard)
  • Desk mounting (with optional kit)
  • DIN-rail mounting (with optional kit)

Operating Temperature

  • With Cellular and Wi-Fi: -40 to 70°C (-40 to 158°F)

Storage Temperature (package included)

  • -40 to 85°C (-40 to 185°F)

Ambient Relative Humidity

  • 5 to 95% (non-condensing)

EMC

  • EN 55032/35
  • EN 61000-6-2/-6-4

EMI

  • CISPR 32, FCC Part 15B Class A

EMS

  • IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV
  • IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m
  • IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV
  • IEC 61000-4-5 Surge: Power: line-to-line 2 kV, Signal: line-to-ground 2 kV
  • IEC 61000-4-6 CS: 150 kHz to 80 MHz; Signal: 10 V
  • IEC 61000-4-8 PFMF

Wireless

  • EN 301 489-1/-17/-19/-52
  • EN 62311
  • EN 300 328 (WLAN 2.4G)
  • EN 301 893 (WLAN 5G)
  • EN 303 687 (WLAN 6 GHz)
  • EN 301 908-1
  • EN 303 413
  • FCC
  • UKCA

International Approval

  • FCC
  • CE
  • UKCA
  • RCM (V1202-CT-T and V1222-CT-T)

Safety

  • IEC 62368-1
  • UL 62368-1

Railway Fire Protection

  • EN 45545-2
  • NFPA130

Railway

  • EN 50155: 2021
  • EN 50121-4

Shock

  • IEC 60068-2-27
  • IEC 61373
  • EN 50155

Vibration

  • IEC 60068-2-64
  • IEC 61373
  • EN 50155

Green Product

  • RoHS, CRoHS, WEEE

Time

  • V1202-CT-T: 2,755,789 hrs
  • V1222-CT-T: 1,430,568 hrs
  • V1222-W-CT-T: 1,324,329 hrs

Standards

  • Telcordia Standard SR332, GB

Warranty Period

  • 5 years
