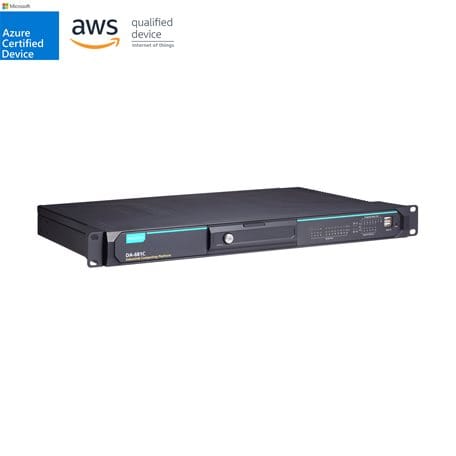

DA-681C Series

Features and Benefits

  • IEC 61850-3, IEEE 1613, and IEC 60255 compliant for power substation automation systems
  • EN 50121-4 compliant for railway wayside applications
  • 7th Generation Intel® Core™ Processor
  • DDR4 memory slot; up to 32 GB capacity
  • Redundant power supply (100 to 240 VAC/VDC)

Available to Order
WhatsApp Us
Get Quote Get Quote
Download Datasheet Download Datasheet

Models

  • DA-681C-KL3-HH-T
  • DA-681C-KL1-HH-T
  • DA-681C-KL1-H-T

Overview

Introduction

The DA-681C computer is built around an Intel® Celeron® or Intel® Core™ i3 CPU and comes with dual display ports (2 x HDMI), 5 USB ports, 6 Gigabit LAN ports, two 3-in-1 RS-232/422/485 serial ports, 10 RS-485 (2–wire) serial ports, 6 digital input ports, and 2 digital output ports. Additionally, one 2.5” HDD/SSD slot and one mSATA slot are included to enable storage expansion for industrial applications that require large storage space for edge data acquisition.

With IEC 61850-3 and IEEE 1613 compliance, the DA-681C is sure to deliver stable and reliable system operation for power applications. EN 50121-4 compliance confirms that the DA-681C can deliver stable and reliable system operations in rail wayside applications, such as station SCADA systems, wayside disaster prevention, traction power, and signaling and safety systems, to provide an integrated view of your smart rail setup.

Specifications

Computer

CPU

  • Intel® Core™ i3-7100U Processor (2M Cache, 2.4 GHz)
  • Intel® Celeron® 3965U Processor (2M Cache, 2.2 GHz

System Memory Slot

  • SODIMM DDR4 slots x 2

DRAM

  • 32 GB max. capacity (SODIMM x 2, each supporting 2400 MHz and 16 GB maximum per module)

Storage Slot

  • 2.5-inch HDD/SSD slots x 1
    mSATA slots x 1

Graphics Controller

  • Intel® HD Graphics 630

Supported OS

  • Windows 10 IoT Enterprise LTSC 2019 Value (64-bit)
  • Linux Debian 9
  • Linux SDKs supported:
    Debian 12
    Ubuntu 22.04 (LTS & HWE)
    RedHat 9
    CentOS 7.9

Ethernet Ports

  • Auto-sensing 10/100/1000 Mbps ports (RJ45 connector) x 6

Serial Ports

  • RS-232/422/485 ports x 2 (software-selectable, DB9 male connector)
  • RS-485 (2-wire) ports x 10 (terminal-block connector)

USB 2.0

  • USB 2.0 hosts x 3, type-A connectors
  • 2 ports on the front panel, 1 port inside the computer

USB 3.0

  • USB 3.0 hosts x 3, type-A connectors
  • 3 ports on the rear panel

Video Output

  • HDMI x 2, HDMI connector (type A)

Secure Boot

  • UEFI

TPM

  • TPM v2.0

Connector

  • Screw-fastened Euroblock terminal

I/O Mode

  • DI

Isolation

  • 3k VDC

Sensor Type

  • Dry contact
  • Wet contact (NPN)

Dry Contact

  • Logic 0: Close to GND
  • Logic 1: Open

Wet Contact (COM to DI)

  • Logic 0: 10 to 30 VDC
  • Logic 1: 0 to 3 VDC

Connector

  • Screw-fastened Euroblock terminal

Current Rating

  • 200 mA per channel

I/O Type

  • Sink

Voltage

  • 0 to 30 VDC

Isolation

  • 3k VDC

Baudrate

  • 50 bps to 115.2 kbps

Connector

  • Terminal block

ESD

  • 8 kV (level 4)

Isolation

  • 2 kV

Serial Standards

  • RS-232/422/485

Surge

  • 2 kV

RS-232

  • TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND

RS-422

  • Tx+, Tx-, Rx+, Rx-, GND

RS-485-2w

  • Data+, Data-, GND

System

  • Programmable x 8
  • Storage x 1
  • Power x 1

LAN

  • 2 per port (10/100/1000 Mbps)

Serial

  • 2 per port (Tx, Rx)

Input Current

  • 100 to 240 VAC, 50/60 Hz, 1.6 A (max)
  • 100 to 240 VDC, 0.8 A (max)

Power Button

  • Reset button (front panel)
  • ON/OFF (rear panel)

Housing

  • Metal

Dimensions (without ears)

  • 440 x 316 x 44 mm (17.32 x 12.44 x 1.73 in)

Weight

  • 9,000 g (21.82 lb)

Installation

  • 19-inch rack mounting

Operating Temperature

  • -40 to 70°C (-40 to 158°F)

Storage Temperature (package included)

  • -40 to 85°C (-40 to 185°F)

Ambient Relative Humidity

  • 5 to 95% (non-condensing)

EMC

  • EN 55032/35

EMI

  • CISPR 32, FCC Part 15B Class A

EMS

  • IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV
  • IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m
  • IEC 61000-4-4 EFT: Power: 4 kV; Signal: 4 kV
  • IEC 61000-4-5 Surge: Power: 4 kV; Signal: 4 kV
  • IEC 61000-4-6 CS: 10 V
  • IEC 61000-4-8: 20 A/m
  • IEC 61000-4-11

Power Substation

  • IEC 61850-3
  • IEEE 1613

Protection Relay

  • IEC 60255

Shock

  • IEC 61850-3 Edition 2.0, IEC 60068-2-27, IEC 60255-21-2

Safety

  • UL 62368-1

Green Product

  • RoHS, CRoHS, WEEE

Time

  • 285,419 hrs

Standards

  • Telcordia Standard SR-332

Warranty Period

  • 3 years
